1842320000 - 3.50 mm Male Header PCB Connector with 180° Angle (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

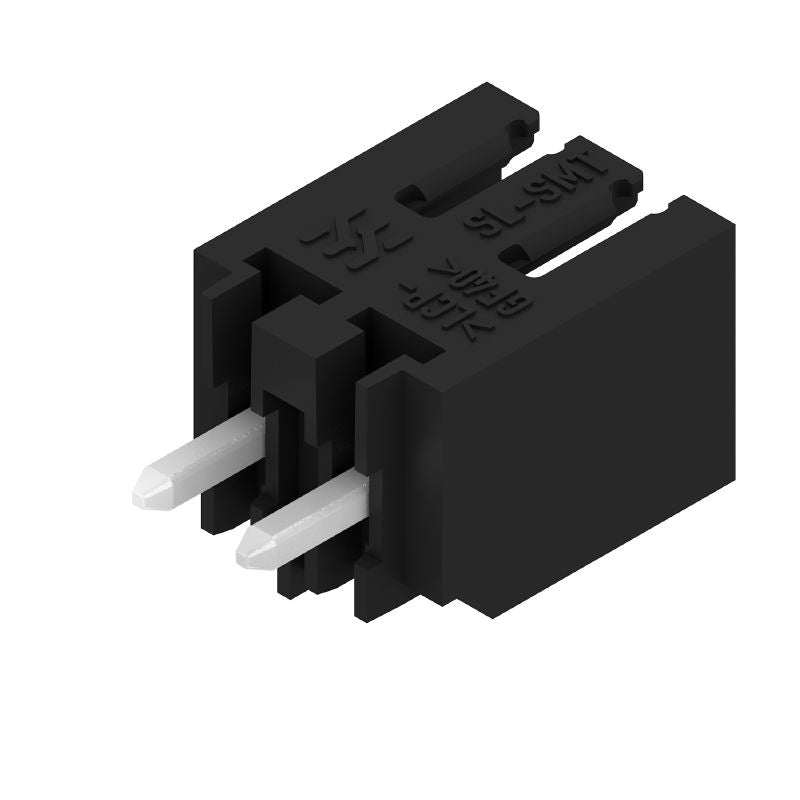

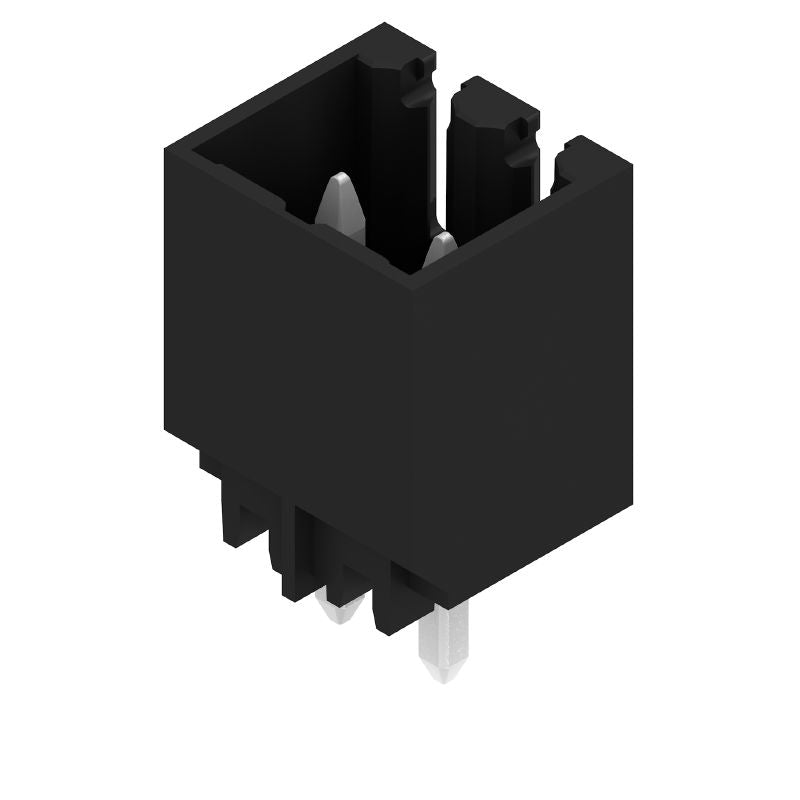

Introducing this male header PCB plug-in connector, thoughtfully designed with a closed end for versatile applications Featuring a 350 mm pitch, it includes 2 poles set at a 180° angle, making it ideal for THT/THR soldering The solder pins measure 32 mm in length and are finished with a tin plating, offering both durability and a sleek black appearance Comes conveniently packaged in a box for easy storage and transport.

Features and Benefits:

•RoHS compliant without exemptions.

•Can be coded.

•Finger-safe plugged and back-of-hand-safe unplugged.

•Insulating material is LCP GF.

•Low volume resistance of ≤5 mΩ.

•Gold-plated contact surfaces available on request.

Specifications:
