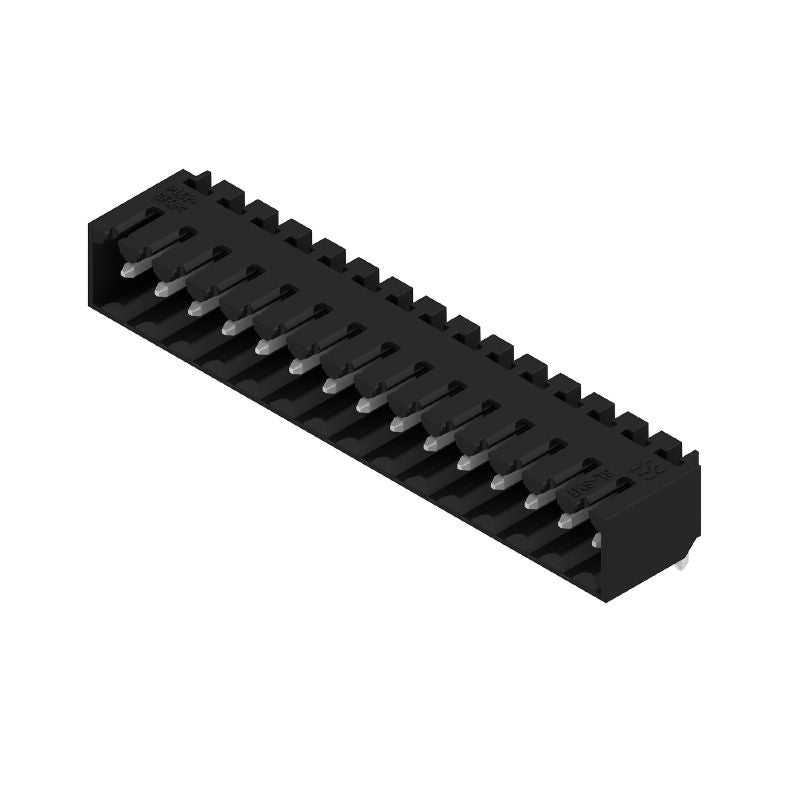

1841760000 - 15-Pole 3.50mm Male PCB Connector, 90° Angle, THT/THR (Pack of 50)

SKU: SKU: 1841760000 Download PDF

Select a Variant:

1841760000 - 15-Pole 3.50mm Male PCB Connector, 90° Angle, THT/THR (Pack of 50)

SET THE QTY:

Now $202.29 Web pricing policy

~~BEFORE $0.00~~ Now $202.29 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing this male header PCB plug-in connector, an essential component for your electronic projects Featuring a closed side design and a 350 mm pitch, it accommodates 15 poles set at a convenient 90° angle With solder pins measuring 32 mm in length, this connector utilizes a reliable THT/THR soldering connection It comes packaged in a classic black finish, and the solder surface is coated in tin for enhanced performance.

Perfect for various applications where secure connections are required.

Features and Benefits:

•RoHS compliant without exemptions.

•Touch-safe protection according to DIN VDE standards.

•Can be coded.

•Lightweight at 4.84 g.

•Storage temperature range from -40 °C to 70 °C.

•Used for board connections in electronic devices.

Specifications:

IEC Rated Voltage	320 V / 15 A
UL Rated Voltage	300 V / 10 A

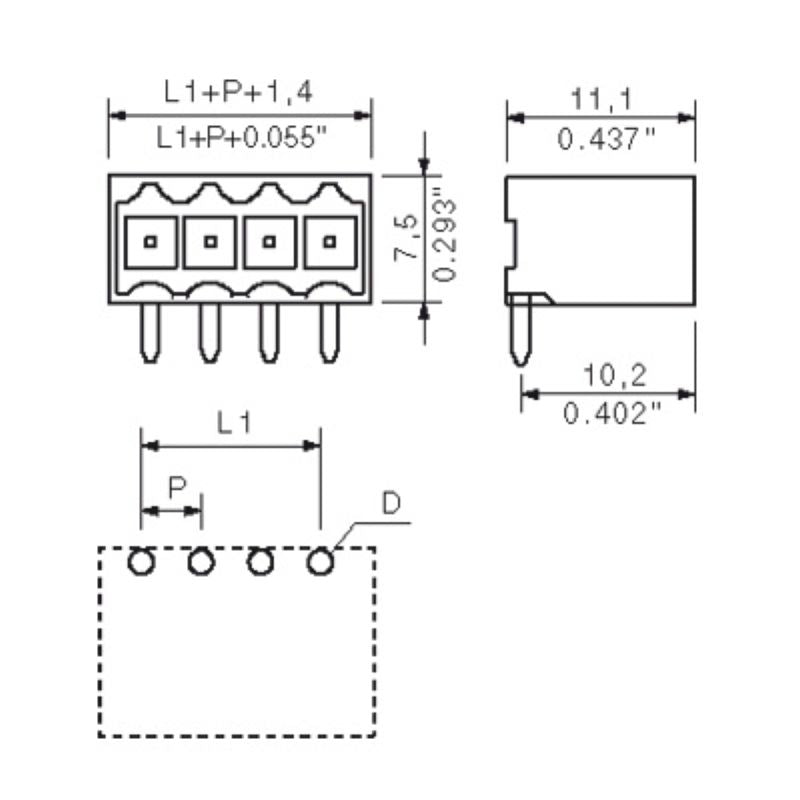

Dimensions	{'Depth': '11.1 mm', 'Height': '10.7 mm', 'Width': '53.9 mm'}
Operating Temperature	{'Minimum': '-50 °C', 'Maximum': '100 °C'}
Rated Current	{'Min at 20°C': '15 A', 'Max at 20°C': '12 A', 'Min at 40°C': '13 A', 'Max at 40°C': '10 A'}
Solder Pin Dimensions	{'d': '1.2 mm', 'Eyelet Hole Diameter': '1.4 mm'}
Flammability Rating	V-0
Material	{'Insulating Material': 'LCP GF', 'Contact Material': 'Cu-alloy'}
