1839960000 - 5mm Pitch PCB Connector, 9 Poles, 90-Degree Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

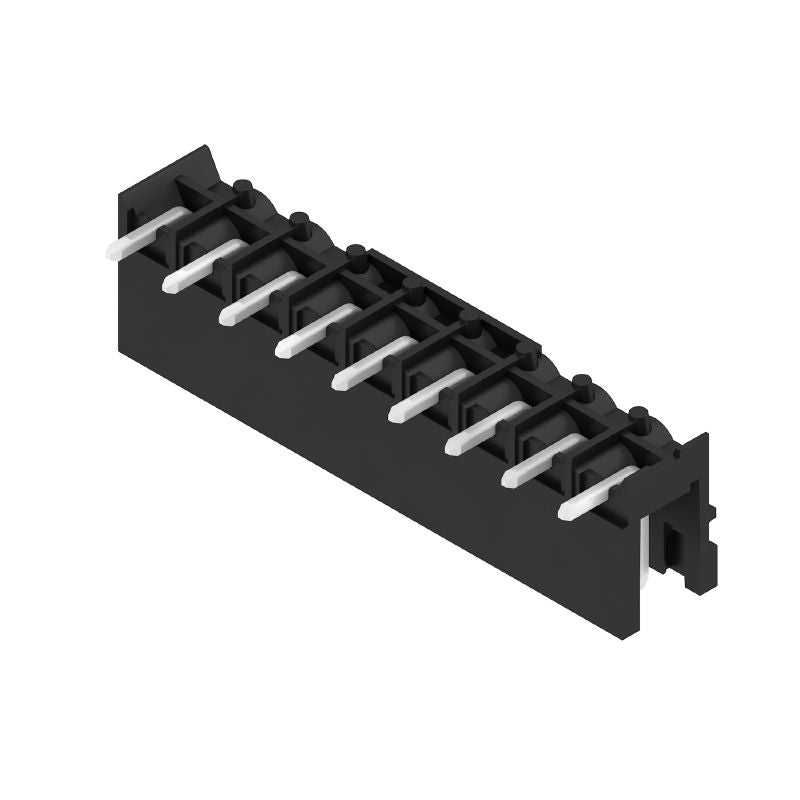

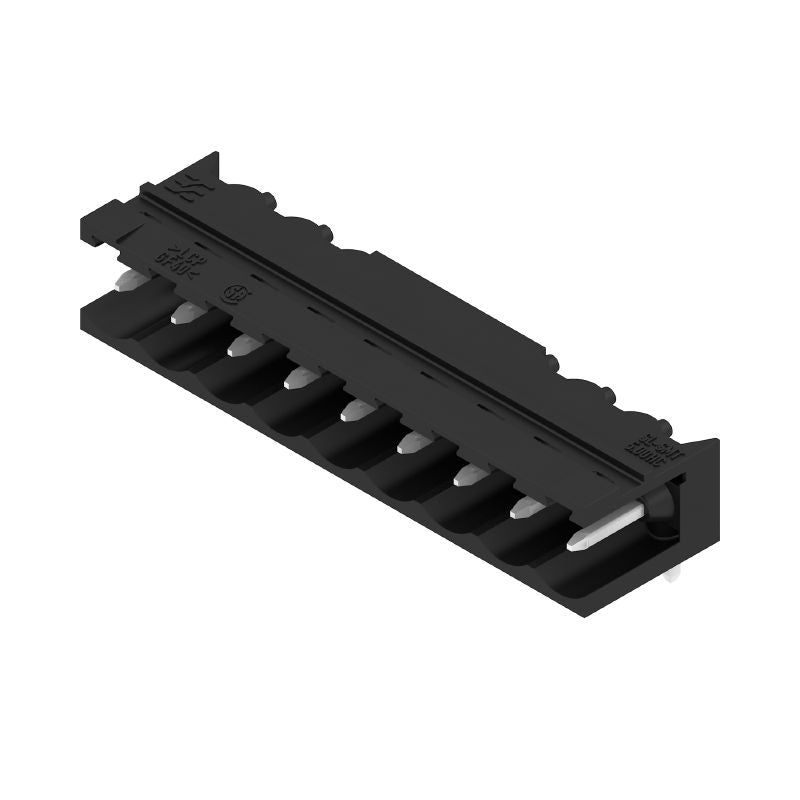

Introducing the SL-SMT 500HC/09/90 32SN BK BX, a male header PCB connector tailored for reliable through-hole mounting With a pitch of 500 mm, this connector features 9 poles arranged at a 90-degree angle, and comes equipped with solder pins measuring 32 mm in length, finished with a durable tin coating Packaged in an attractive black box, this connector meets RoHS compliance, making it suitable for a wide range of connection needs while ensuring dependable performance.

Features and Benefits:

•Compliant with RoHS standards.

•Available in black color.

•Touch-safe design according to DIN standards.

•Can accommodate a maximum plugging force of 7 N per pole.

•Suitable for a temperature range between -50 °C and 100 °C.

•Used for board connection in electronic circuits.

Specifications:
