Description:

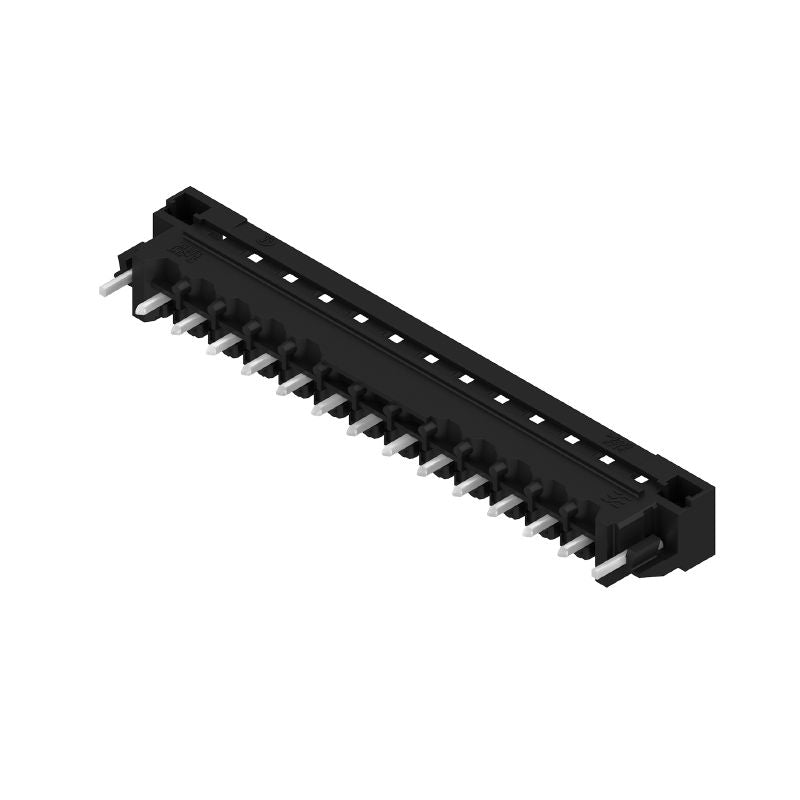

Introducing a reliable male header PCB plug-in connector, designed specifically for soldering applications This connector showcases a solder flange connection type, accommodating both THT and THR soldering techniques, and is built with a 508 mm pitch It comprises 13 poles configured at a 180° angle, each equipped with a 32 mm long solder pin that is finished in a sleek black tin plating This ensures secure and effective connections for your electronic projects.

Features and Benefits:

•RoHS compliant.

•Touch-safe protection.

•Can be coded.

•Black color with RAL 9011 standard.

•Insulating material made of LCP GF.

Specifications:

UL File Number	E60693
Rated voltage acc. to IEC	{'Surge voltage class II/2': '400 V', 'Surge voltage class III/2': '320 V', 'Surge voltage class III/3': '250 V'}
Rated current acc. to IEC	{'Minimum number of poles at 20°C': '27.5 A', 'Maximum number of poles at 20°C': '19 A', 'Minimum number of poles at 40°C': '24 A', 'Maximum number of poles at 40°C': '16.5 A'}

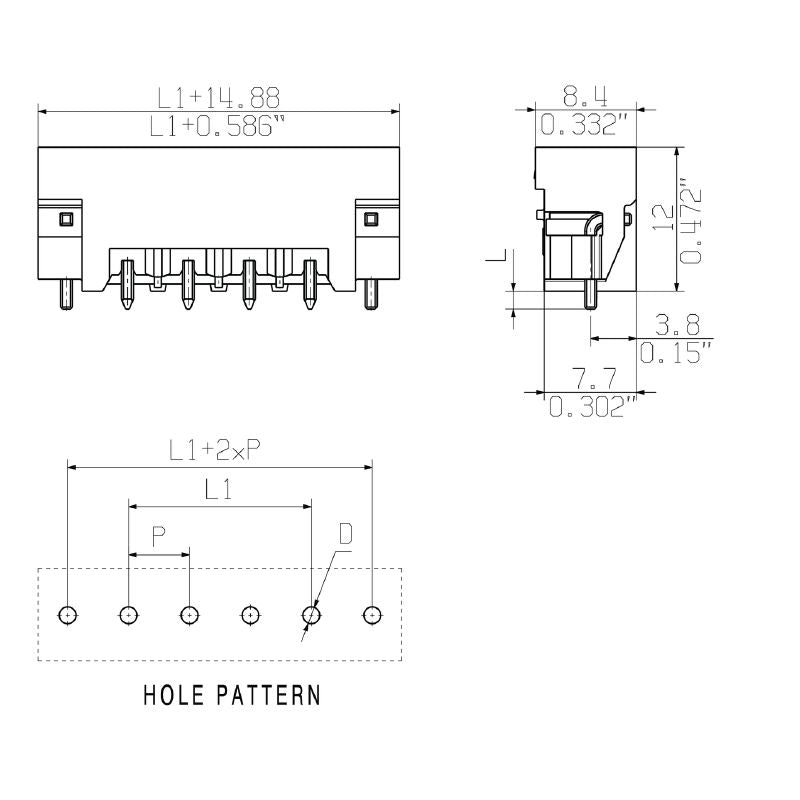

Dimensions	{'Depth': '8.5 mm', 'Height': '15.2 mm', 'Width': '75.84 mm'}
Operating temperature	{'Minimum': '-50 °C', 'Maximum': '100 °C'}
Storage temperature	{'Minimum': '-40 °C', 'Maximum': '70 °C'}
Protection degree	IP20
Volume resistance	≤5 mΩ
Solder pin diameter	1.2 mm
Touch-safe protection acc. to DIN VDE	finger-safe unplugged / back-of-hand-safe plugged
