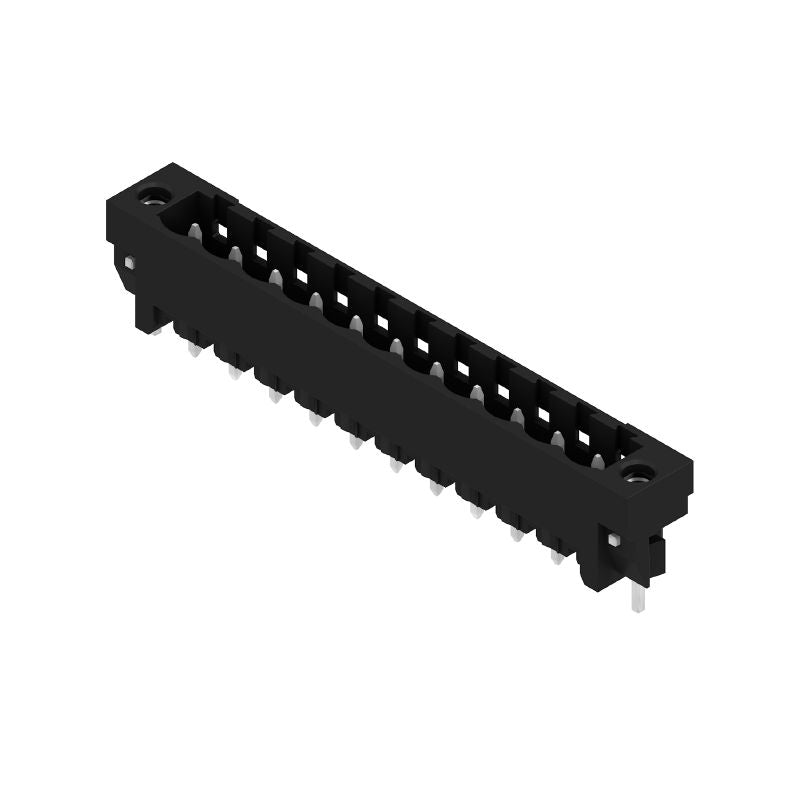

1838530000 - 5.08mm Male Header Connector with 11 Poles, 3.2mm Pins (Pack of 24)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable connectivity with this male header PCB plug-in connector, tailor-made for soldering tasks It features a 508 mm pitch and includes 11 poles set at a precise 180-degree angle, accompanied by a 32 mm solder pin length This connector is finished with a durable tin coating and comes packaged in an attractive black box Additionally, it adheres to RoHS standards, ensuring compliance with safety regulations.

Designed for easy installation, it supports THT/THR soldering techniques, making it a versatile choice for your electronic projects.

Features and Benefits:

•IEC rating of 400 V and 27.5 A.

•UL rating of 300 V and 18.5 A.

•Finger-safe when unplugged and back-of-hand safe when plugged.

•Can be coded.

•Touch-safe protection according to DIN standards.

•Compliant with both RoHS and REACH standards.

Specifications:
