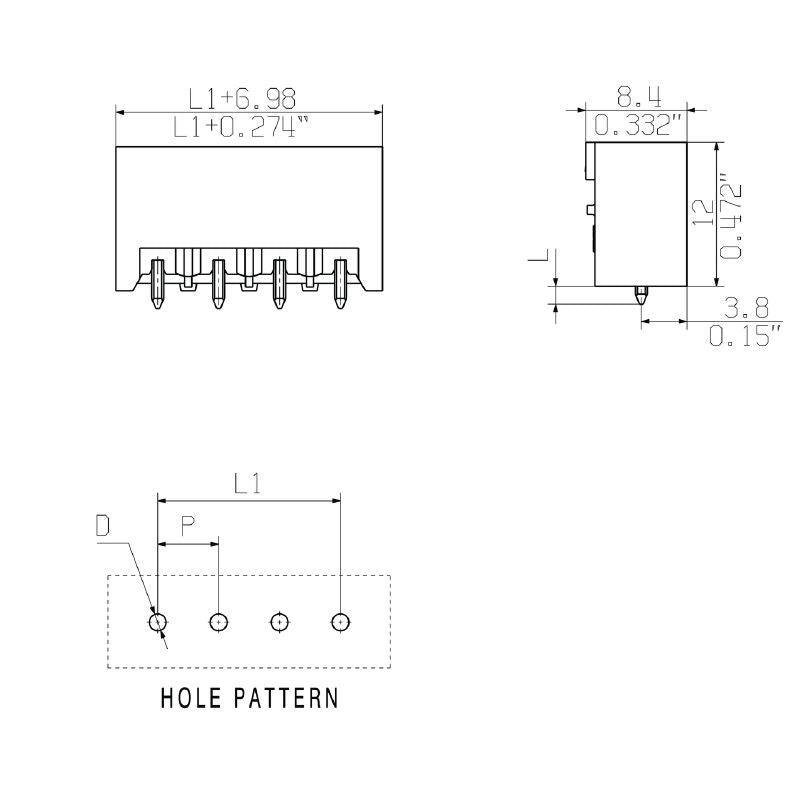

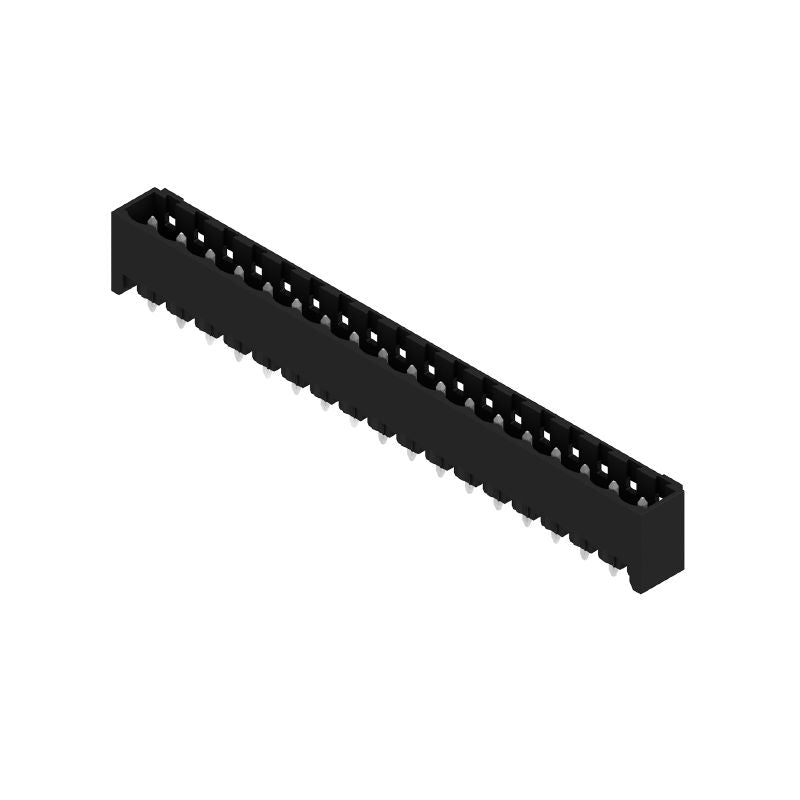

1838370000 - 18-Pole 5.08mm Male PCB Header Connector, 180° Angle (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile male header PCB plug-in connector designed for efficient THT/THR soldering This connector features a compact 508 mm pitch and is equipped with 18 poles arranged at a 180° angle for optimal connection With a solder pin length of 32 mm, each pin is coated in tin for reliable conductivity The product is neatly packaged in a black box and meets essential industry standards, carrying the UL certification number E60693 and adhering to RoHS guidelines.

Ideal for your electronic projects, this connector offers both quality and compliance.

Features and Benefits:

•Designed for THT/THR solder connection.

•Compliant with RoHS without exemption.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•Rated for a maximum current of 27.5 A at 400 V.

•Can be coded for polarity.

•Packaging in box format.

Specifications:
