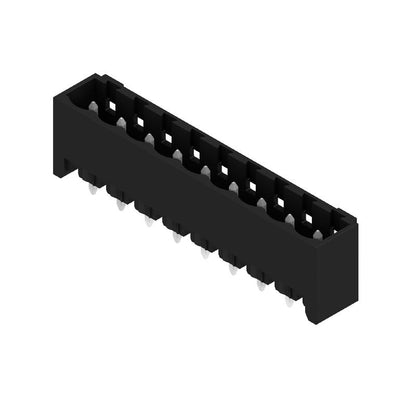

1838280000 - 5.08mm 9-Pole PCB Connector for THT/THR Solder Applications (Pack of 50)

1838280000 - 5.08mm 9-Pole PCB Connector for THT/THR Solder Applications (Pack of 50)

SKU: SKU: 1838280000   Download PDF

Select a Variant:
  • 1838280000 - 5.08mm 9-Pole PCB Connector for THT/THR Solder Applications (Pack of 50)
Qty:
Regular price Now $110.22   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $110.22 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

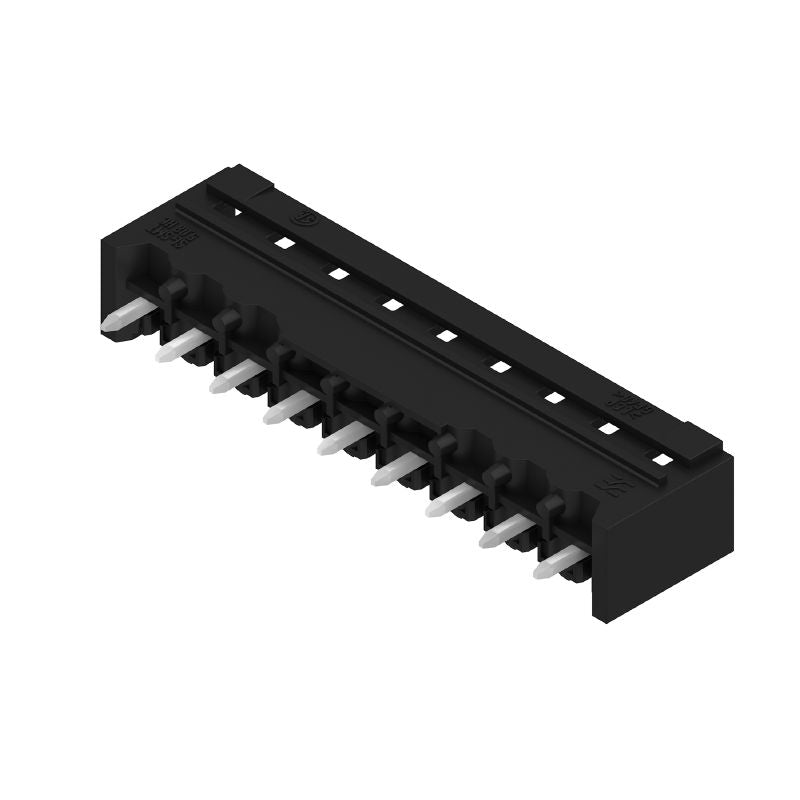

Experience reliable connectivity with the SL-SMT 508HC/09/180G 32SN BK BX male header PCB plug-in connector Crafted for versatility, this connector is suitable for THT and THR soldering It boasts a 508 mm pitch and features 9 poles arranged in a convenient 180° configuration The tinned solder pins measure 32 mm in length, ensuring a secure connection, while the total weight is 3643 grams Perfect for a variety of applications within the OMNIMATE Signal series, this connector is designed to meet your connectivity needs with ease.

Features and Benefits:

    •Conforms to RoHS requirements.

    •Can be coded for secure connections.

    •Touch-safe protection features.

    •Compatible with front panel installation.

    •Insulating material is LCP GF.

Specifications:

 IEC voltage 400 V / 27.5 A
 UL voltage 300 V / 18.5 A
 Number of poles 9
 Pitch 5.08 mm
 Solder pin length 3.2 mm

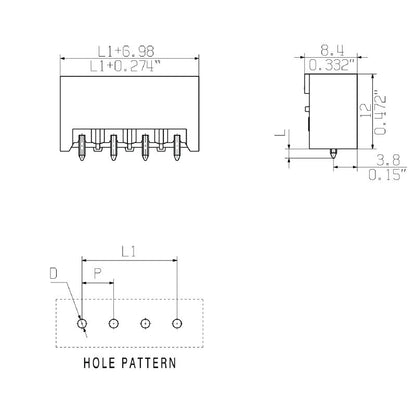

 Dimensions Depth: 8.5 mm, Height: 15.2 mm, Width: 47.62 mm
 Operating temperature -50 °C to 100 °C
 Storage temperature -40 °C to 70 °C
 Protection degree IP20
 Volume resistance ≤5 mΩ
