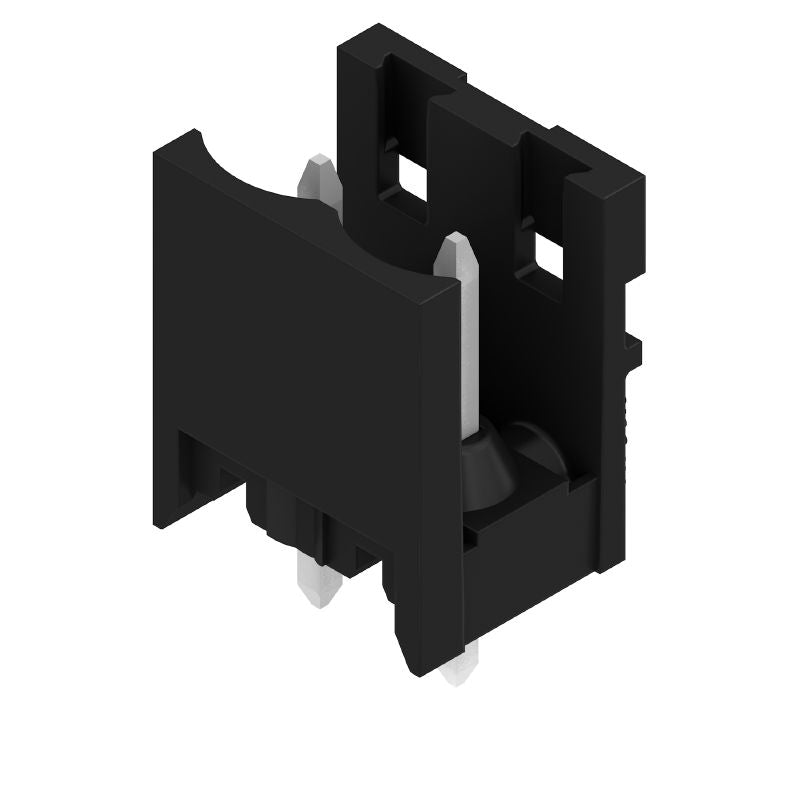

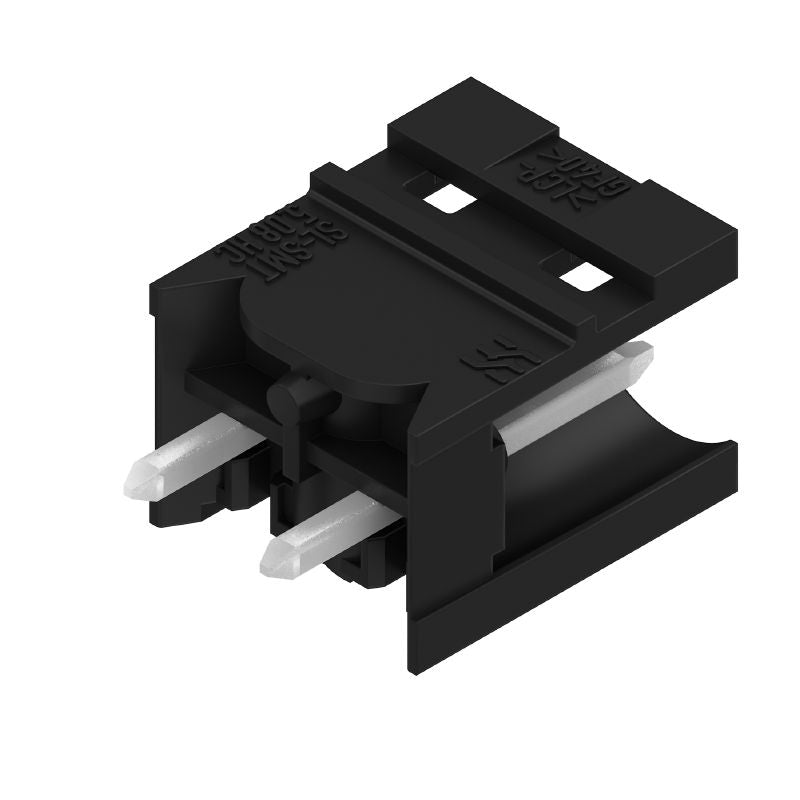

1837980000 - 5.08mm Male Header Connector, 2 Poles, 180° Orientation, Black (Pack of 100)

SKU: SKU: 1837980000 Download PDF

Select a Variant:

1837980000 - 5.08mm Male Header Connector, 2 Poles, 180° Orientation, Black (Pack of 100)

SET THE QTY:

Now $48.97 Web pricing policy

~~BEFORE $0.00~~ Now $48.97 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Elevate your connection options with this PCB plug-in connector, featuring a robust male header design with an open side This connector is engineered for THT/THR soldering methods and boasts a 508 mm pitch, complete with two poles positioned at a 180-degree angle Each solder pin is 32 mm long and comes tinned in a sleek black hue Conveniently packaged in boxes, this connector is an excellent choice for reliable electronic applications.

Features and Benefits:

•RoHS compliant without exemption.

•Touch-safe protection as per DIN VDE standards.

•Can be coded for additional safety.

•Compatible with various environmental conditions.

•Gold-plated contact surfaces available upon request.

•Developed in accordance with internationally recognized standards.

Specifications:

IEC Voltage Rating	400 V / 27.5 A
UL Voltage Rating	300 V / 18.5 A
Dimensions	{'Solder Eyelet Hole Diameter': '1.4 mm', 'Pin Series Quantity': '1'}
Protection Degree	IP20
Operating Temperature	{'Min': '-50 °C', 'Max': '100 °C'}
Storage Temperature	{'Min': '-40 °C', 'Max': '70 °C'}
Insulating Material	LCP GF
Contact Material	Cu-alloy
Number of Poles	2
Solder Pin Length	3.2 mm
Rated Current	{'Min at 20°C': '27.5 A', 'Max at 20°C': '19 A'}
