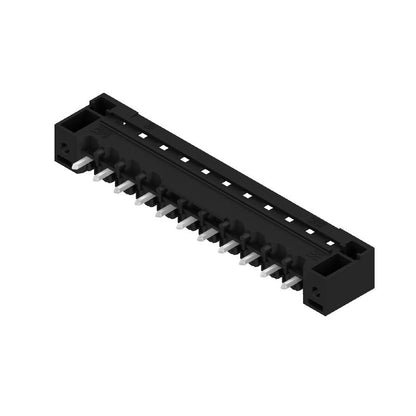

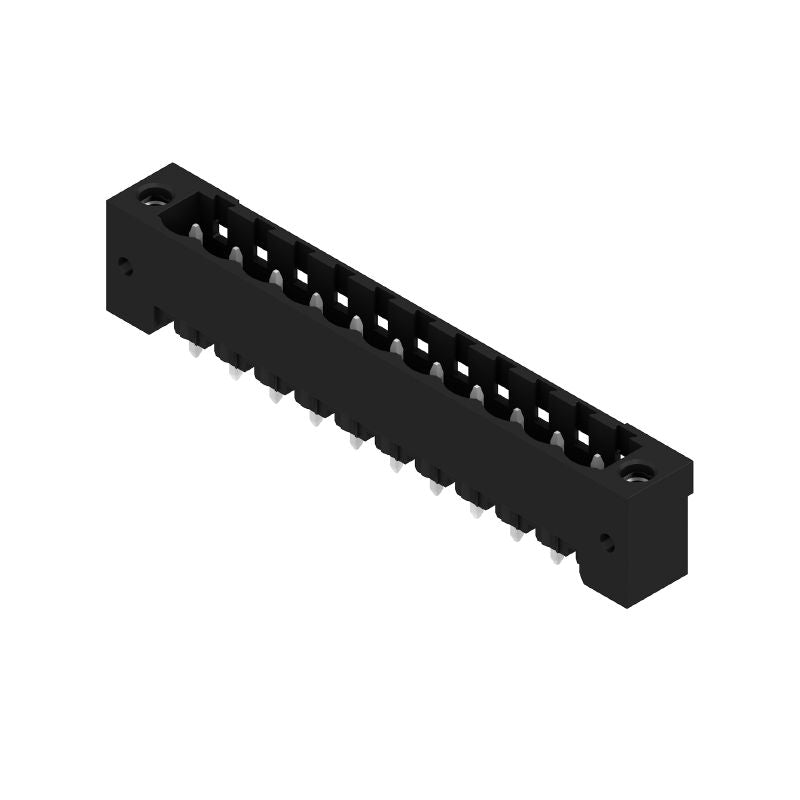

1837900000 - 5.08mm 11-Pole PCB Connector with 180° Angle, RoHS Compliant (Pack of 24)

1837900000 - 5.08mm 11-Pole PCB Connector with 180° Angle, RoHS Compliant (Pack of 24)

SKU: SKU: 1837900000   Download PDF

Select a Variant:
  • 1837900000 - 5.08mm 11-Pole PCB Connector with 180° Angle, RoHS Compliant (Pack of 24)
Qty:
Regular price Now $78.35   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $78.35 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in connector with a 508 mm pitch, designed with a male header and flange for optimal performance This connector features 11 pins arranged at a 180° angle, and its tinned solder pins are 32 mm long, ensuring a secure THT/THR solder connection Packaged in a black box, this product is RoHS compliant, making it a safe choice for environmentally conscious projects.

Features and Benefits:

    •IEC rated for 400 V and 27.5 A.

    •UL rated for 300 V and 18.5 A.

    •Touch-safe protection compliant with DIN VDE standards.

    •Can be coded for additional functionality.

    •Compatible with a wide range of operating and storage temperatures.

Specifications:

 Depth 8.5 mm
 Height 15.2 mm
 Width 65.88 mm
 Net weight 5.8 g
 Solder pin length 3.2 mm
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Protection degree IP20
 Volume resistance ≤5 mΩ
 Pitch 5.08 mm
 Number of poles 11
 Insulating material LCP GF
 Rated current 27.5 A at 20°C
 Rated voltage 400 V
