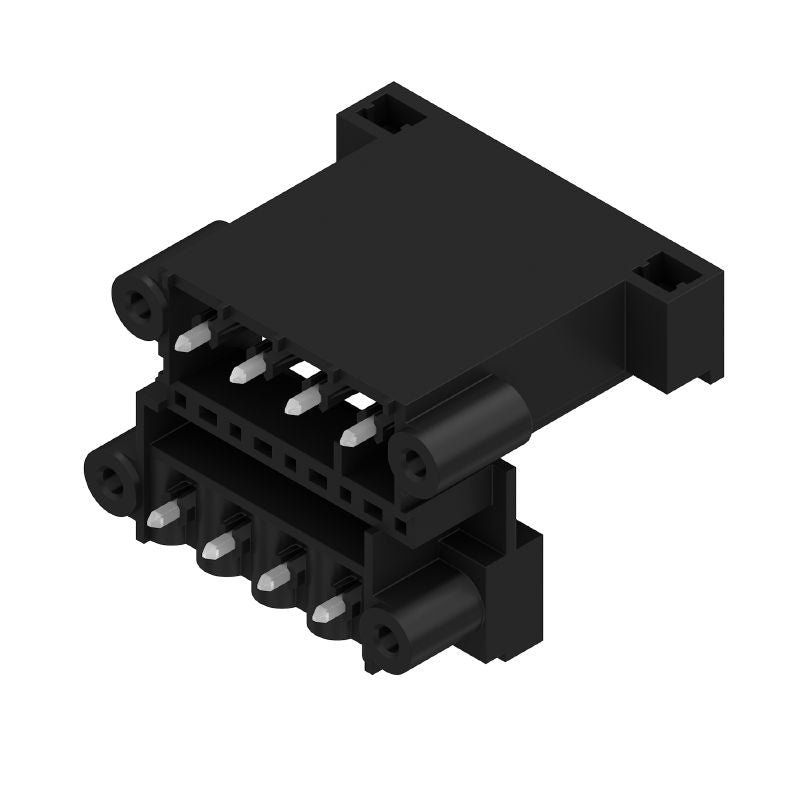

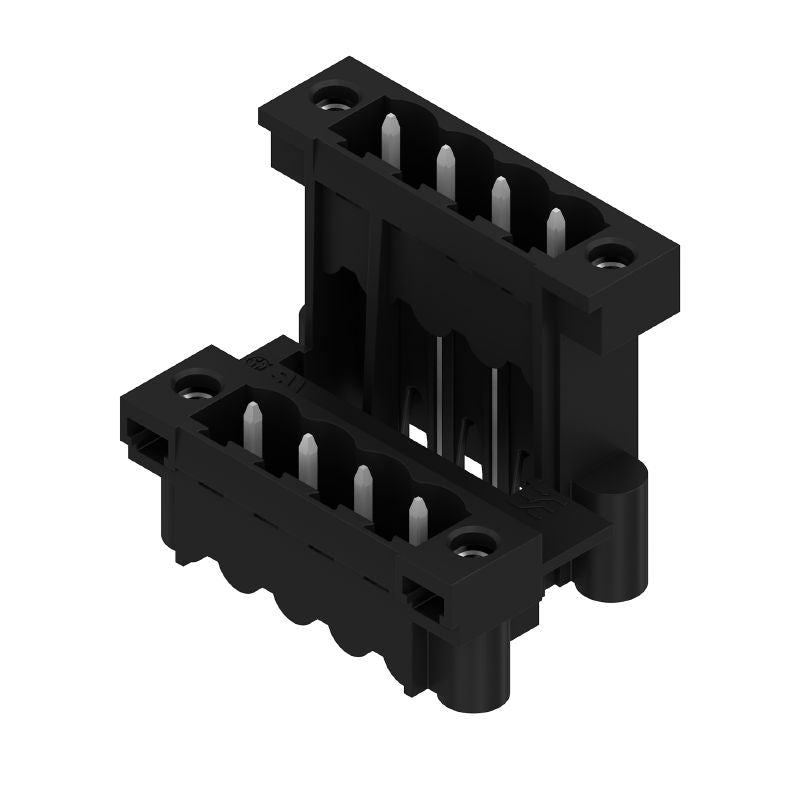

1828910000 - Male PCB Header Connector 5.08mm, 8 Poles, Flange, Tinned Black (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SLDV-THR 508/08/180F 15SN BK BX, a specialized male header connector ideal for PCB plug-in applications This component features a flange designed for through-hole and surface mount soldering, with a pitch of 508 mm It accommodates up to 8 poles arranged at a 180° angle, ensuring flexibility and ease of use Each of the solder pins measures 15 mm in length and comes with a durable black tinned finish.

Packaged securely in a box, it's the perfect solution for your PCB connection needs.

Features and Benefits:

•Compliant with RoHS standards.

•IEC rated at 400 V / 15 A and UL rated at 300 V / 10 A.

•Can be coded.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•Operating temperature up to 100 °C.

•PCB connection.

•Various electronic applications requiring a reliable male header connector.

Specifications:
