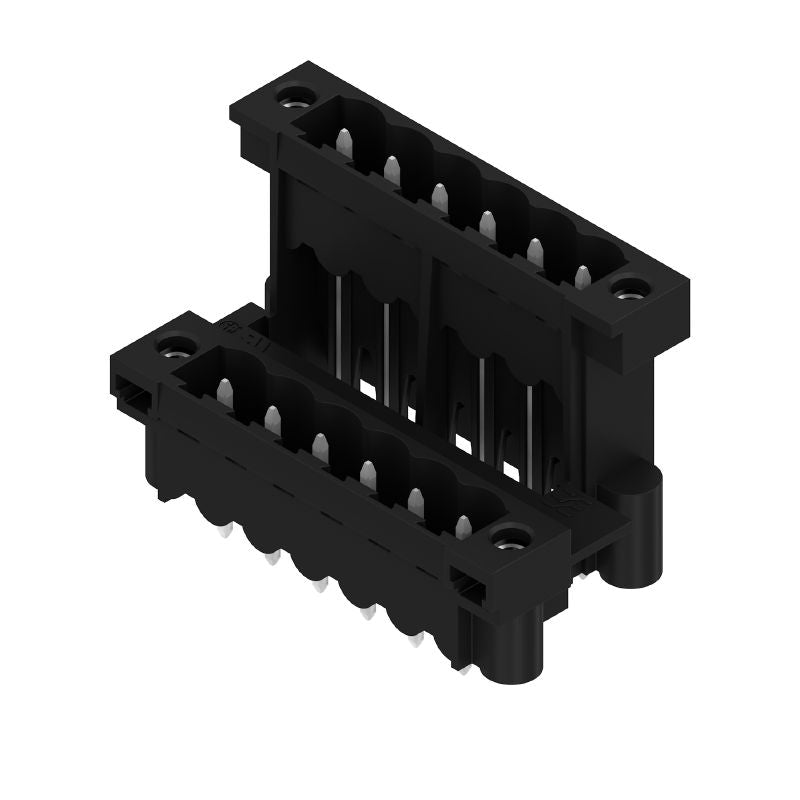

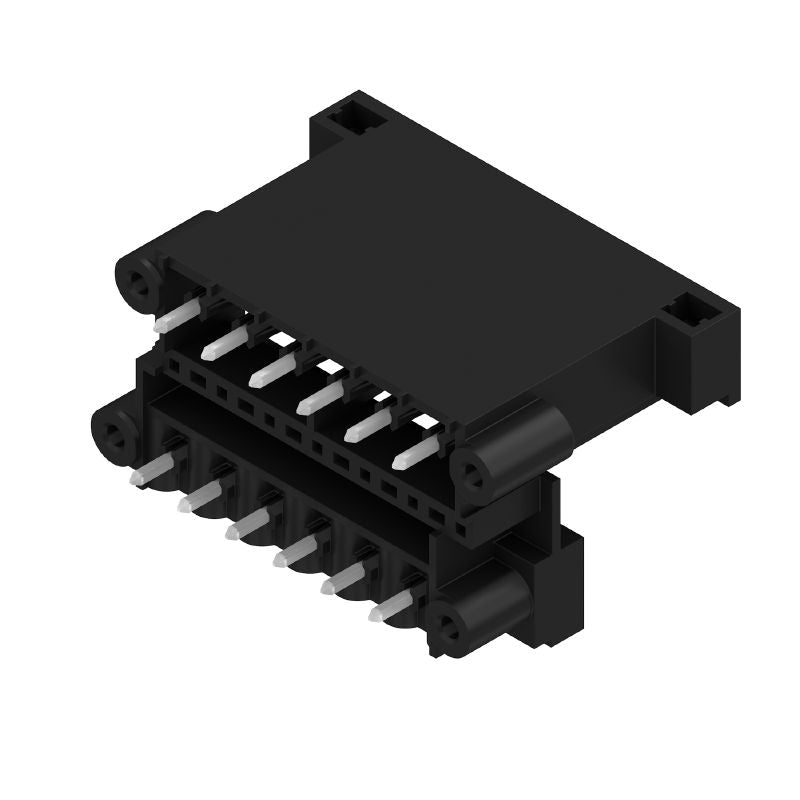

1828810000 - 5.08mm 12-Pole Black PCB Connector with 180° Flange (Pack of 28)

1828810000 - 5.08mm 12-Pole Black PCB Connector with 180° Flange (Pack of 28)

SKU: SKU: 1828810000   Download PDF

Select a Variant:
  • 1828810000 - 5.08mm 12-Pole Black PCB Connector with 180° Flange (Pack of 28)
Qty:
Regular price Now $250.76   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $250.76 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable male header PCB plug-in connector, designed with a flange for THT/THR solder connections This connector measures 508 mm and features 12 poles with a convenient 180° outgoing elbow for easy integration It boasts a solder pin length of 32 mm, is tinned for enhanced conductivity, and comes packaged in an attractive black box This connector adheres to both RoHS and UL standards, ensuring safety and dependable performance for your projects.

Features and Benefits:

    •Plugs conform to IEC standards with voltage ratings up to 400 V and current ratings up to 15 A.

    •Designed for easy board connection with THT/THR soldering.

    •Crafted from LCP GF insulating material for durability.

    •Complies with IPC-A-610 decorative requirements.

    •Touch-safe protection per DIN VDE standards.

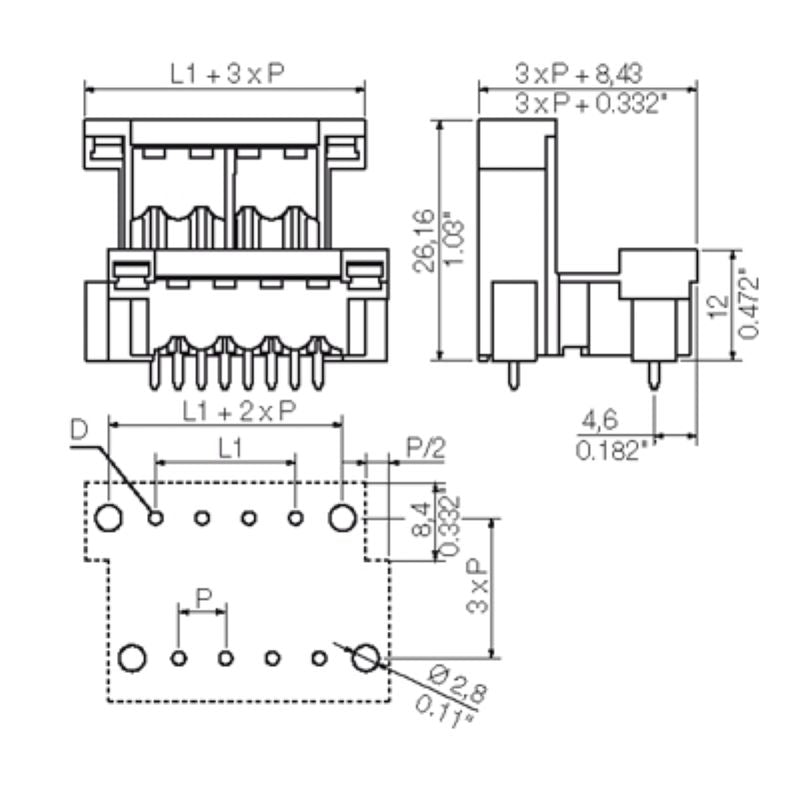

Specifications:

 Depth 23.67 mm
 Height 29.36 mm
 Width 40.64 mm
 Number of poles 12
 Solder pin length 3.2 mm
 Rated voltage 400 V
 Rated current 15 A
 Insulating material LCP GF
 Operating temperature (max) 100 °C
 Storage temperature (max) 70 °C
 Flammability rating V-0
 Pitch 5.08 mm
