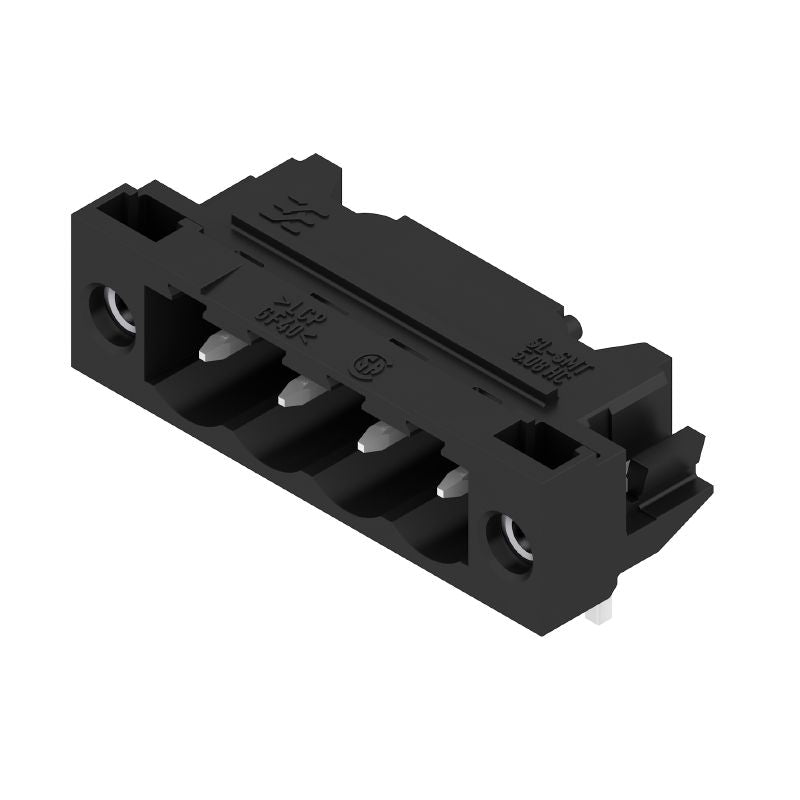

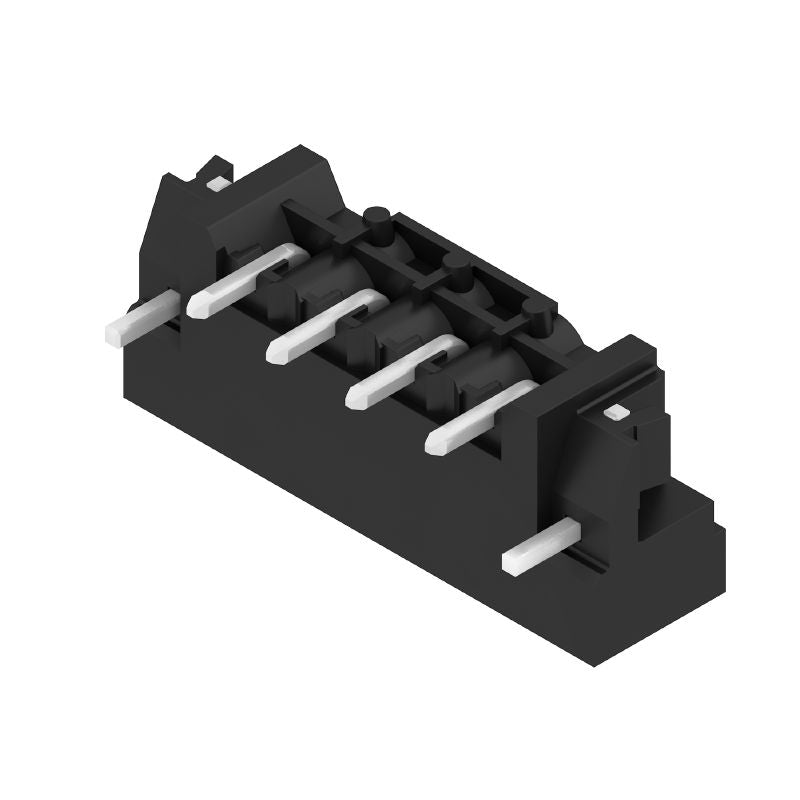

1780430000 - Male PCB Connector 5.08mm Pitch, 4 Poles, 90° Angle (Pack of 60)

1780430000 - Male PCB Connector 5.08mm Pitch, 4 Poles, 90° Angle (Pack of 60)

SKU: SKU: 1780430000   Download PDF

Select a Variant:
  • 1780430000 - Male PCB Connector 5.08mm Pitch, 4 Poles, 90° Angle (Pack of 60)
Qty:
Regular price Now $101.67   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $101.67 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your projects with this reliable PCB plug-in connector, featuring a male header specifically designed for solder flange connections Utilizing THT/THR soldering techniques, it boasts a 508 mm pitch and accommodates 4 poles arranged at a precise 90° angle Each pole includes a solder pin measuring 32 mm in length, with a durable tin and black finish for added resilience This item is identified by the order number 1780430000, making it a valuable addition to your electronic components.

Features and Benefits:

    •Complies with RoHS without exemption.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for specific applications.

    •Low volume resistance of ≤5 mΩ.

Specifications:

 Rated voltage (IEC) 400 V
 Rated current (IEC) 27.5 A
 Number of poles 4
 Solder pin length 3.2 mm
 Width 30.12 mm
 Height 11.7 mm
 Depth 12 mm
 Volume resistance ≤5 mΩ
 Operating temperature -50 °C to 100 °C
 Storage temperature -40 °C to 70 °C
 Protection degree IP20
 Moisture Level (MSL) 1
 UL 94 flammability rating V-0
