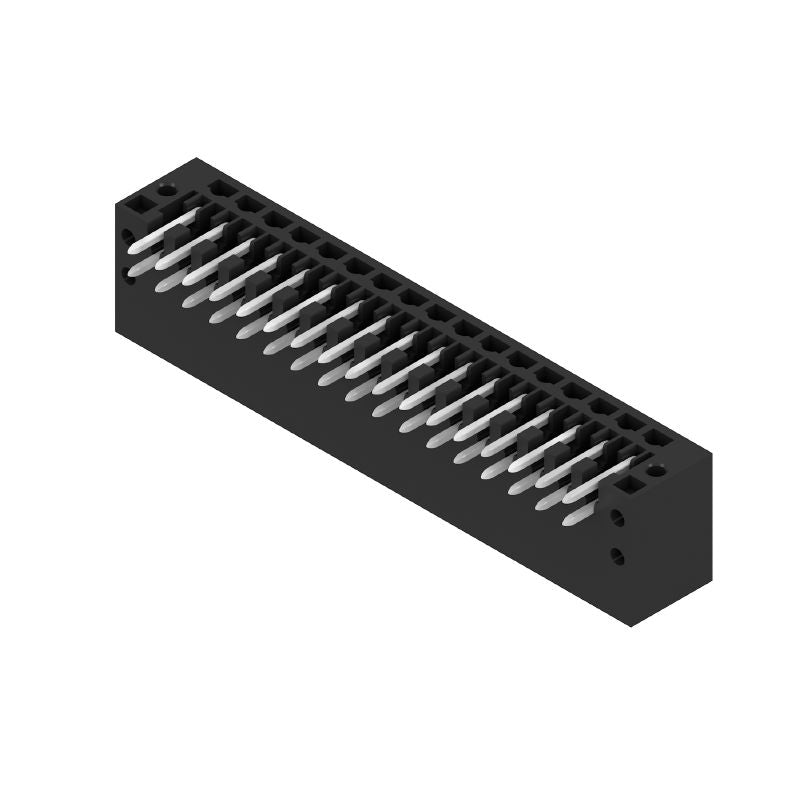

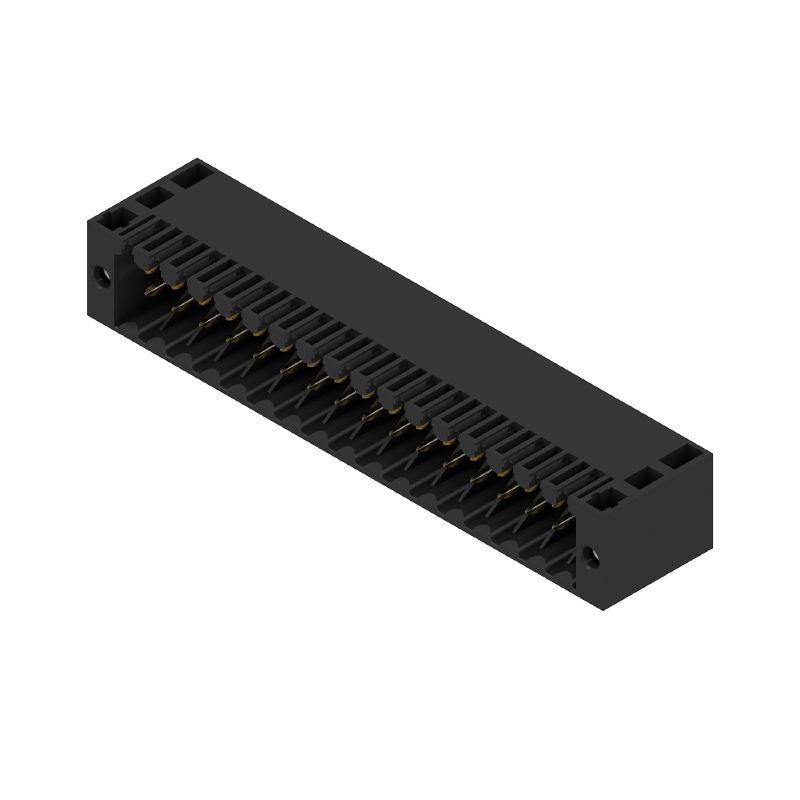

1756300000 - 3.5mm 34-Pole Gold-Plated PCB Connector with Flange (Pack of 24)

SKU: SKU: 1756300000 Download PDF

Select a Variant:

1756300000 - 3.5mm 34-Pole Gold-Plated PCB Connector with Flange (Pack of 24)

SET THE QTY:

Now $387.78 Web pricing policy

~~BEFORE $0.00~~ Now $387.78 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a versatile PCB plug-in connector, designed with a male header that includes a flange for secure attachment and a reliable through-hole solder connection With a compact 350 mm pitch and equipped with 34 poles arranged at a right angle of 90 degrees, it ensures optimal performance The solder pins measure 35 mm in length, and the connector features a premium gold plating for enhanced conductivity.

This connector is packaged in an elegant black box for easy storage and transport.

Features and Benefits:

•Compliant with RoHS standards.

•Can be coded.

•Touch-safe protection according to DIN VDE standards.

•Gold-plated contact surfaces.

•Part of the OMNIMATE Signal series.

•Used for board connections in electronic applications.

Specifications:

UL File Number	E60693
IEC Rating	250 V / 10 A
UL Rating	150 V / 10 A

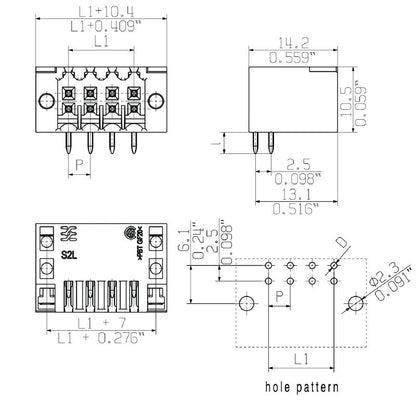

Dimensions	{'Depth': '14.2 mm', 'Height': '14 mm', 'Width': '66.5 mm'}
Operating Temperature	{'Min': '-50 °C', 'Max': '100 °C'}
Storage Temperature	{'Min': '-40 °C', 'Max': '70 °C'}
Solder Pin Dimensions	{'Length': '3.5 mm', 'Diameter': '1.0 mm'}
Rated Current	{'Min': '9 A at 40°C', 'Max': '10 A at 20°C'}
Rated Voltage	{'Surge Voltage Class II': '250 V', 'Surge Voltage Class III': '80 V'}
Flammability Rating	V-0
Mounting Type	THT solder connection
