1756050000 - 3.5mm Male PCB Connector, 16 Poles, Gold-Plated (Pack of 48)

SKU: SKU: 1756050000 Download PDF

Select a Variant:

1756050000 - 3.5mm Male PCB Connector, 16 Poles, Gold-Plated (Pack of 48)

SET THE QTY:

Now $380.38 Web pricing policy

~~BEFORE $0.00~~ Now $380.38 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

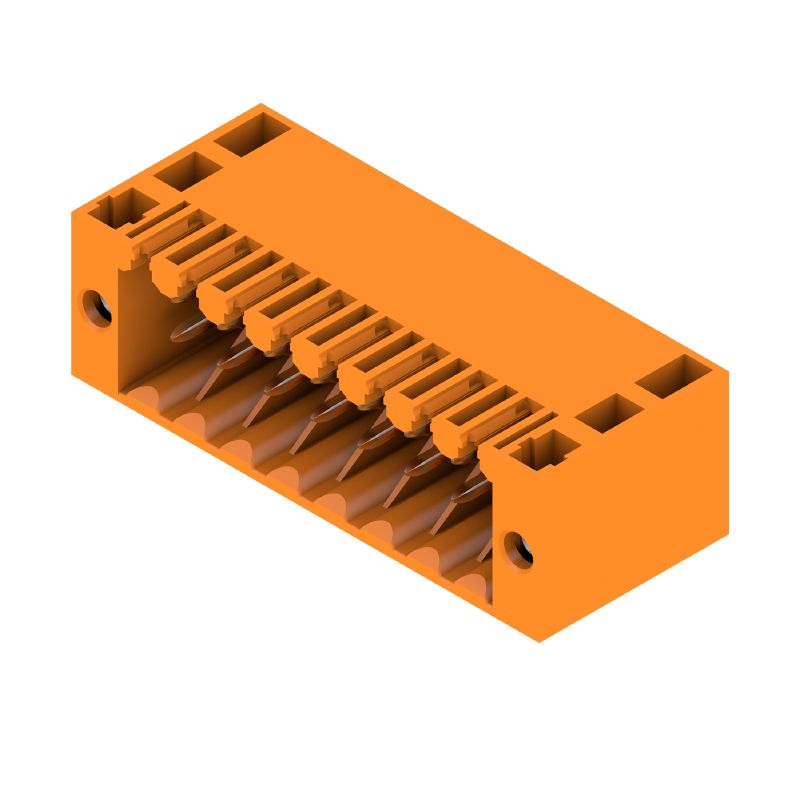

Discover the efficiency of this PCB plug-in connector, featuring a male header with a convenient flange for THT soldering It boasts a pin pitch of 35 mm and accommodates 16 pins, each at a length of 35 mm, organized in a 90-degree angle The gold-plated pins ensure optimal conductivity, and the connector is packaged in a vibrant orange box for easy identification.

Features and Benefits:

•Solder pin length of 3.5 mm.

•Gold-plated connections.

•Designed for a maximum of 10 A at 250 V according to IEC.

•RoHS compliant.

•Board connections.

•Used in various electronic applications requiring reliable connections.

Specifications:

IEC Voltage Rating	250 V / 10 A
UL Voltage Rating	150 V / 10 A

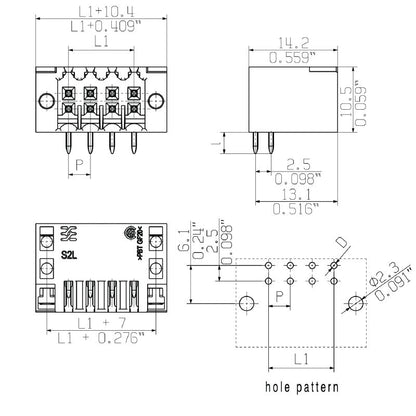

Dimensions	{'Depth': '14.2 mm', 'Height': '14 mm', 'Width': '35 mm'}
Pin Series	{'Number of Poles': '16', 'Number of Rows': '1', 'Pitch': '3.5 mm'}
Storage Temperature	{'Min': '-40 °C', 'Max': '70 °C'}
Operating Temperature	{'Min': '-50 °C', 'Max': '100 °C'}
Material	{'Insulating material': 'PBT', 'Contact material': 'Cu-alloy'}
Rated Data	{'Current': {'Min (Tu=20°C)': '10 A', 'Max (Tu=20°C)': '10 A'}, 'Voltage': {'Surge Voltage Class II/2': '250 V', 'Use Group B (CSA)': '150 V'}}
