1740691001 - 3.50mm Female PCB Connector, 16 Poles, 320V Rated (Pack of 30)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable PCB plug-in connector designed as a female plug This connector features a 350 mm pitch with 16 poles and utilizes a clamping yoke connection, accommodating a maximum clamping range of 15 mm² Certified for compliance, it guarantees safety and dependable performance Each box contains 30 connectors, making it a practical choice for various applications The product adheres to IEC standards with a voltage rating of 320 V/17 A and is UL rated up to 300 V/10 A.

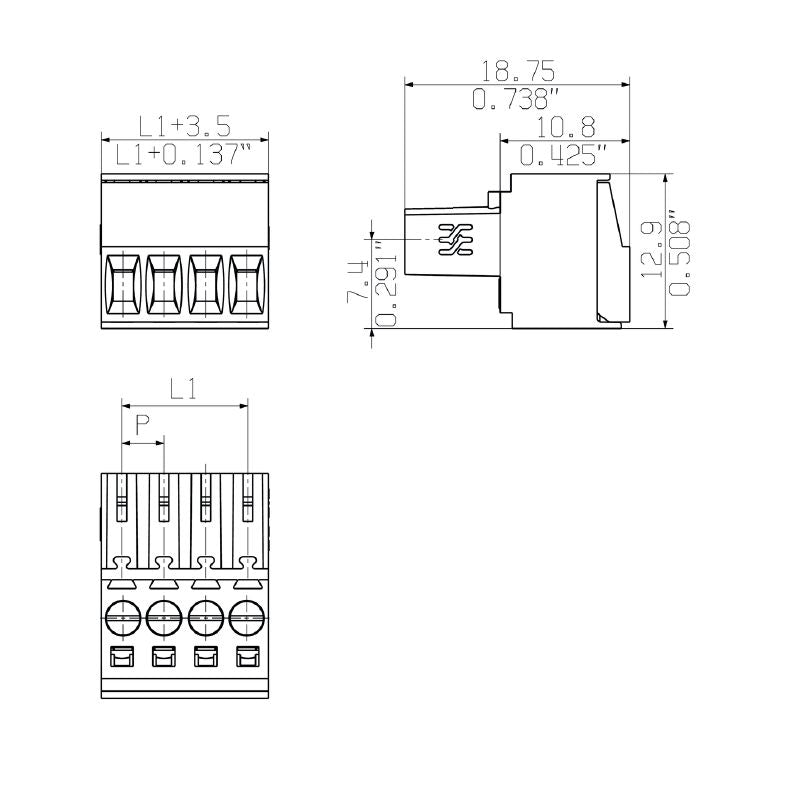

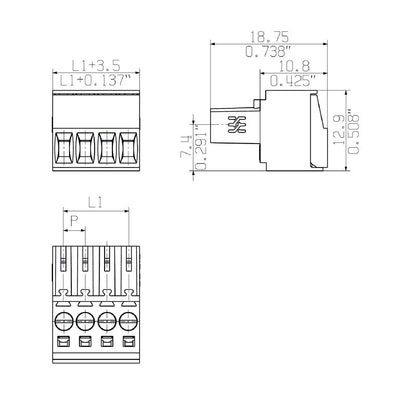

Its dimensions are optimized to fit seamlessly into your projects.

Features and Benefits:

•Compliant with RoHS without exemption.

•Safe from finger touch as per DIN VDE standards.

•Can be coded for connection purposes.

•Durable with a flammability rating of V-0.

•Designed for both solid and stranded wire connections.

Specifications:
