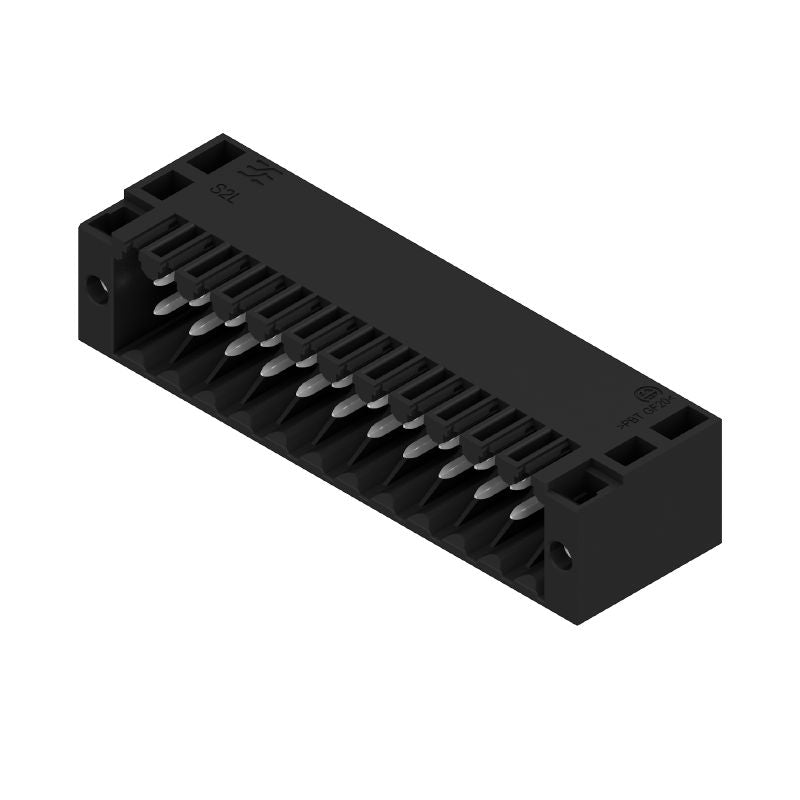

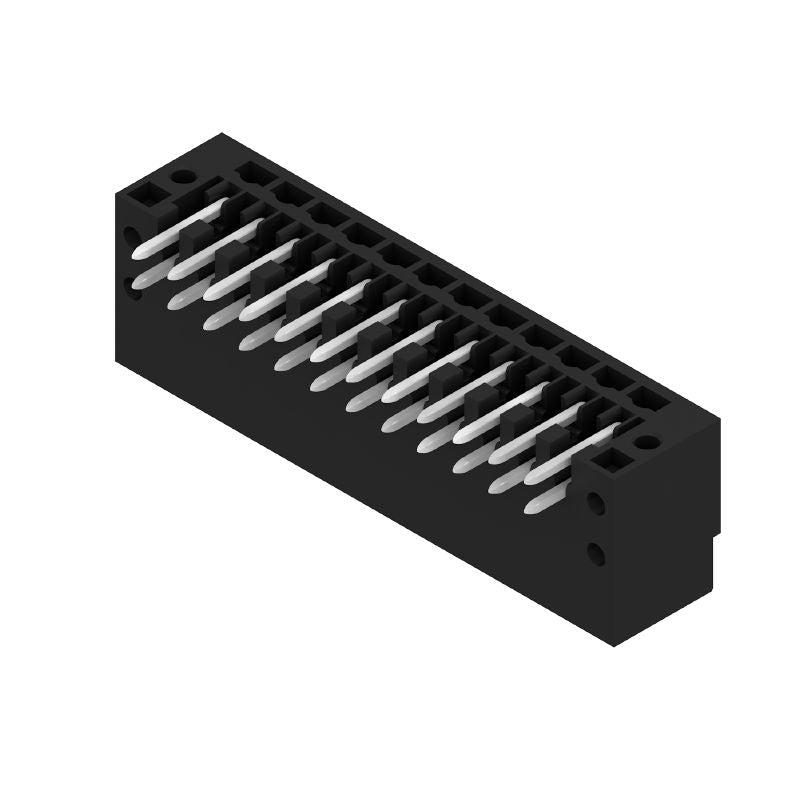

1728720000 - 24-Pole 3.5mm Male Header Connector, 90-Degree Flange (Pack of 36)

1728720000 - 24-Pole 3.5mm Male Header Connector, 90-Degree Flange (Pack of 36)

SKU: SKU: 1728720000   Download PDF

Select a Variant:
  • 1728720000 - 24-Pole 3.5mm Male Header Connector, 90-Degree Flange (Pack of 36)
Qty:
Regular price Now $234.58   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $234.58 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing this male header PCB plug-in connector, designed with a convenient flange for through-hole soldering It boasts a 350 mm pitch with a 90-degree angle and features 24 poles, making it an excellent choice for a variety of applications Each solder pin measures 35 mm in length and features a durable tinned finish in a striking black color For your convenience, this connector is securely packaged in a box.

Features and Benefits:

    •RoHS compliant without exemption.

    •Touch-safe protection according to DIN VDE.

    •Can be coded.

    •Two rows of connections.

    •Designed for board connection.

Specifications:

 IEC Rated Voltage 250 V
 UL Rated Voltage 150 V
 Number of Poles 24
 Pin Series Quantity 2
 Operating Temperature Range -50 °C to 100 °C
 Storage Temperature Range -40 °C to 70 °C
 Contact Material Cu-alloy
 Solder Eyelet Hole Diameter 1.3 mm
 Rated Current Maximum 10 A
 Rated Current Minimum 9 A
 Tightening Torque 0.1 Nm to 0.15 Nm
 Insulating Material PBT
 UL 94 Flammability Rating V-0
