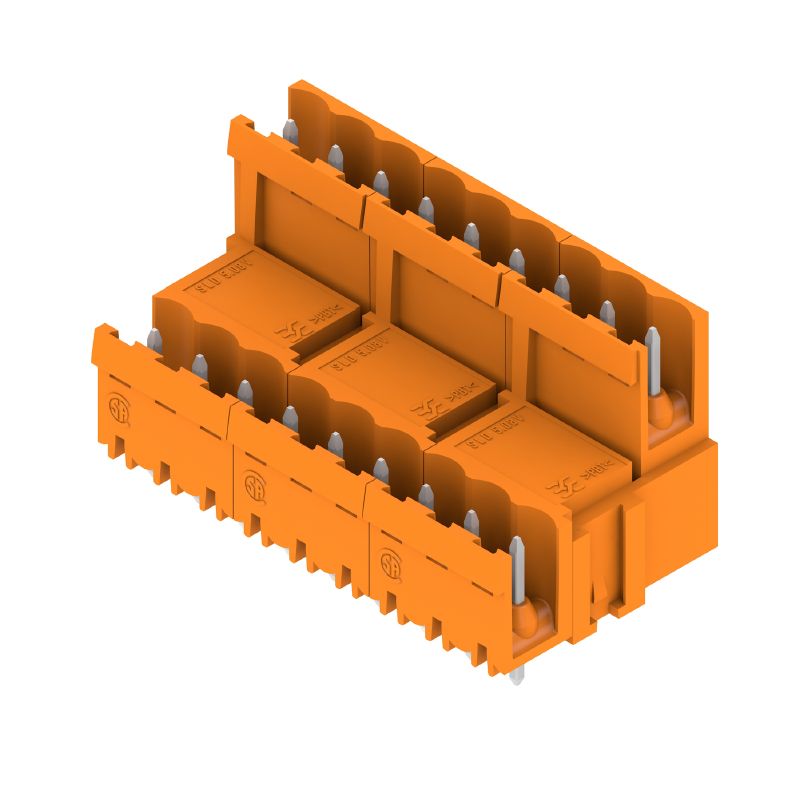

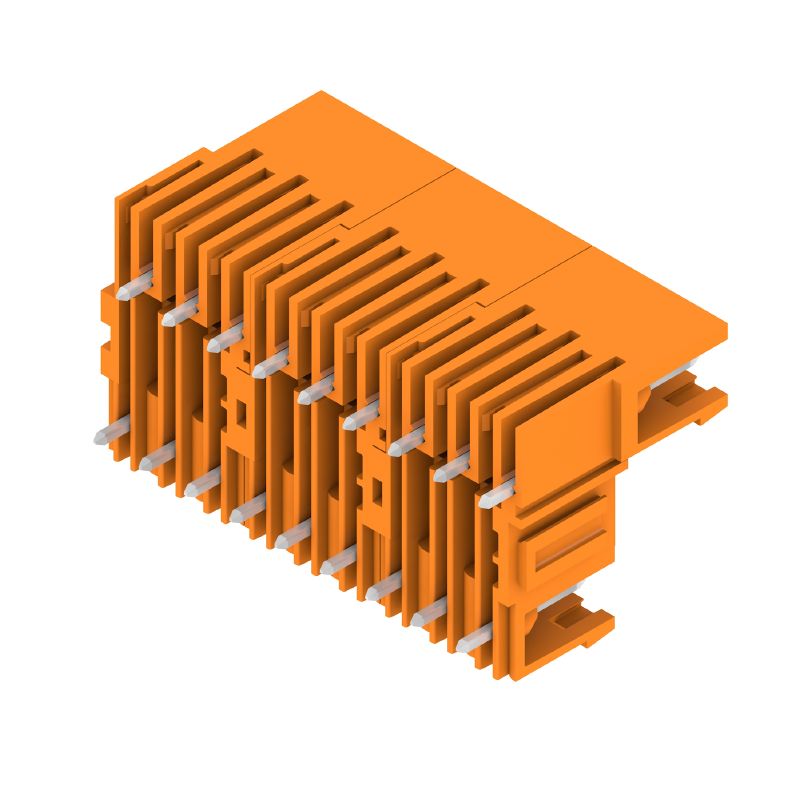

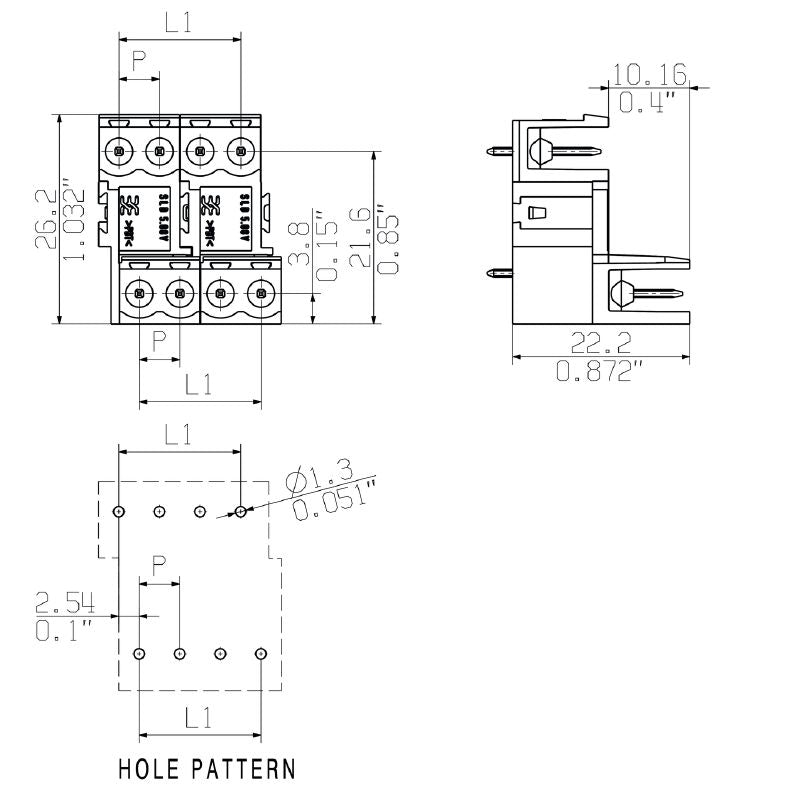

1725720000 - 5.08mm Male Header Connector with 18 Poles, Orange Housing (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable PCB plug-in connector featuring a male header with an open side, meticulously designed for through-hole soldering With a pitch measurement of 508 mm, this connector showcases 18 poles oriented at a 180-degree angle The solder pin boasts a length of 32 mm, coupled with tinned contacts for superior conductivity Encased in a striking orange housing, this product is conveniently packaged in a box for easy storage and transport.

Features and Benefits:

•Can be coded for secure connections.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•Compliant with RoHS without exemptions.

•Designed to meet IEC 60664-1 and IEC 61984 standards.

•Supports plugging cycles up to 25.

•Used for board connection in electronic applications.

Specifications:
