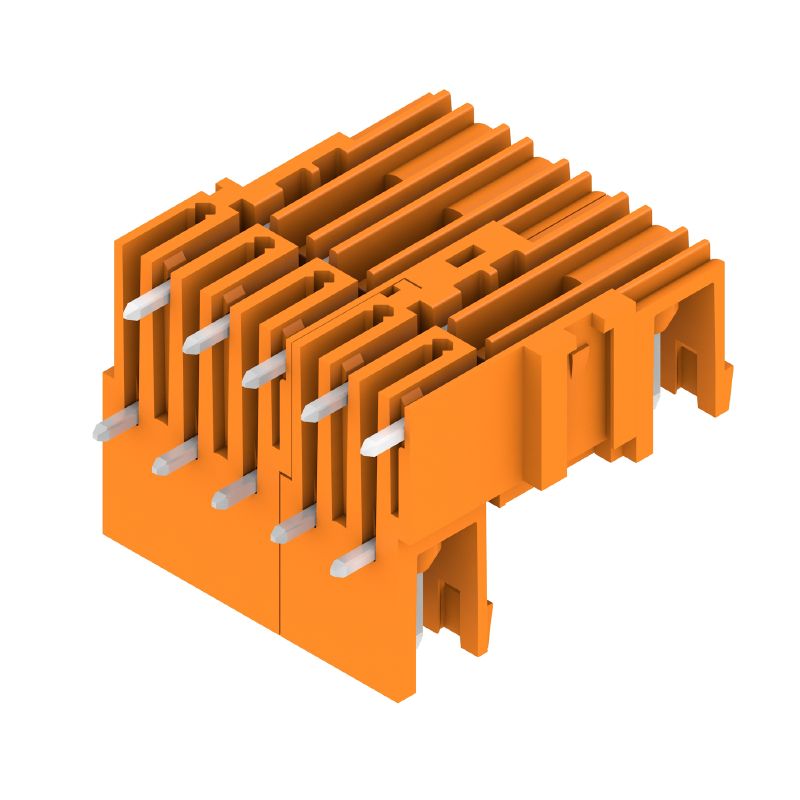

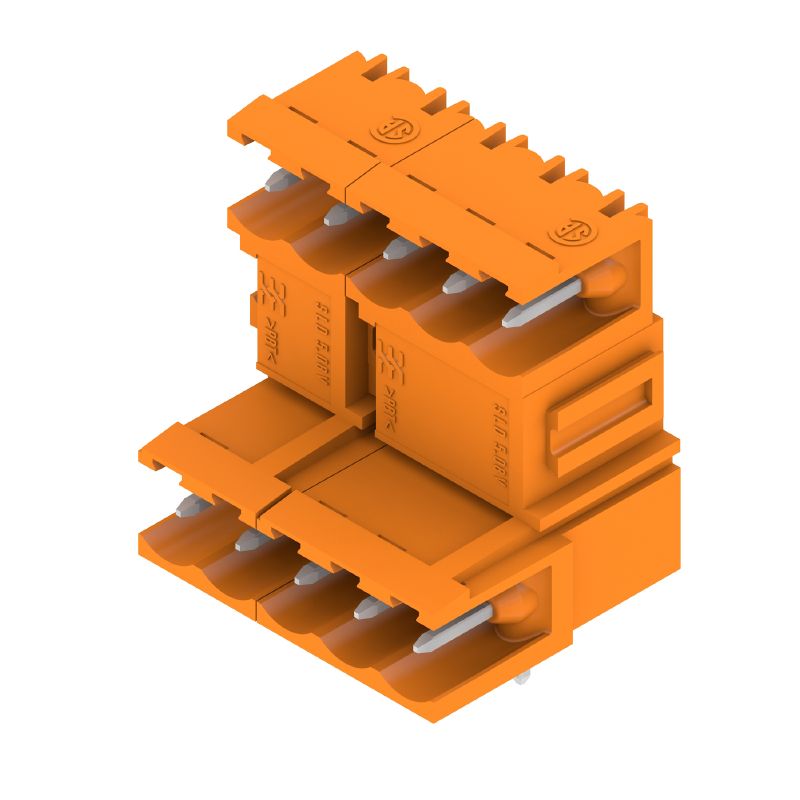

1725200000 - 5.08mm Male PCB Connector 10 Poles, 90° Angle (Pack of 50)

1725200000 - 5.08mm Male PCB Connector 10 Poles, 90° Angle (Pack of 50)

SKU: SKU: 1725200000   Download PDF

Select a Variant:
  • 1725200000 - 5.08mm Male PCB Connector 10 Poles, 90° Angle (Pack of 50)
Qty:
Regular price Now $198.31   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $198.31 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile male header PCB plug-in connector, specifically engineered for THT solder connections, featuring an open side design for easy use This connector boasts a 508 mm pitch with 10 poles and a 90° outgoing elbow, making it ideal for various applications The solder pins measure 32 mm in length, ensuring secure connections Packaged in an eye-catching orange box, this product is also ROHS compliant, ensuring adherence to environmental safety standards.

Perfect for those seeking reliable and efficient electrical components .

Features and Benefits:

    •Finger-safe when unplugged and back-of-hand-safe when plugged in.

    •Can be coded for easy identification.

    •Complies with international standards for safety and performance.

    •Designed for board connections.

    •Used in THT solder connections.

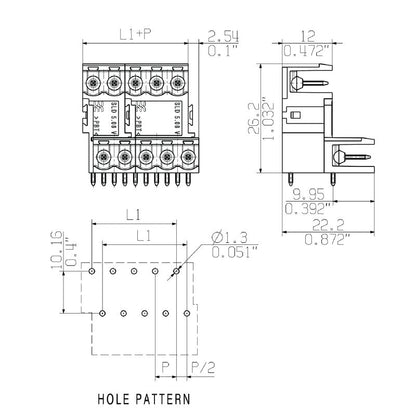

Specifications:

 Depth 22 mm
 Height 28.7 mm
 Width 27.94 mm
 Net weight 8.28 g
 Rated voltage 320 V
 Rated current 17 A
 Operating temperature range -50 °C to 100 °C
 Touch-safe protection IP20 when plugged
 Volume resistance ≤5 mΩ
 Insulating material PBT
 Contact material Cu-alloy
 Solder pin diameter 1.2 mm
