1649390000 - 5.08mm 4-Pole Crimp PCB Connector, RoHS/UL Certified (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

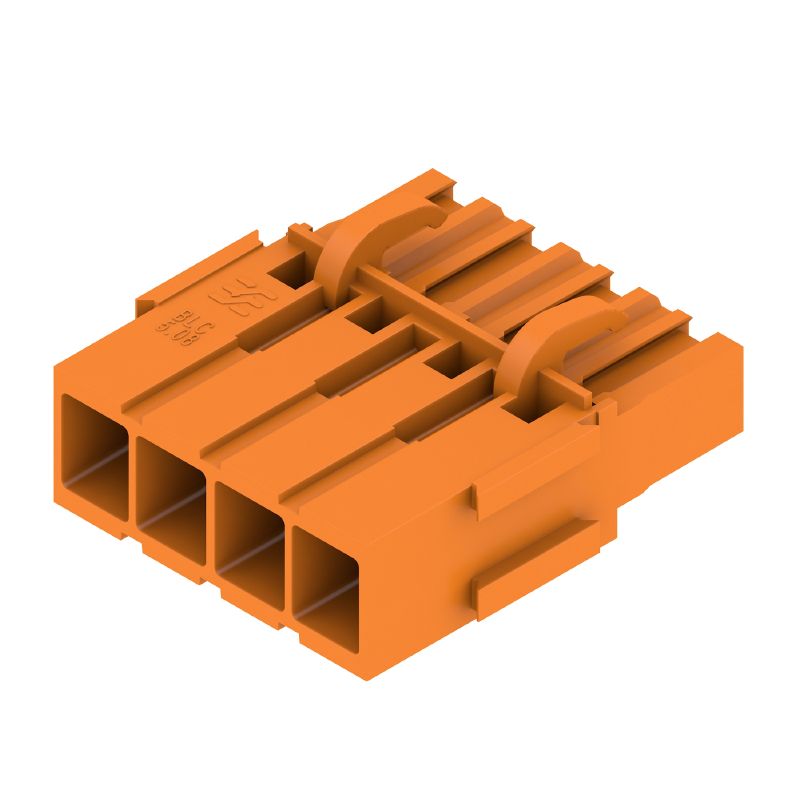

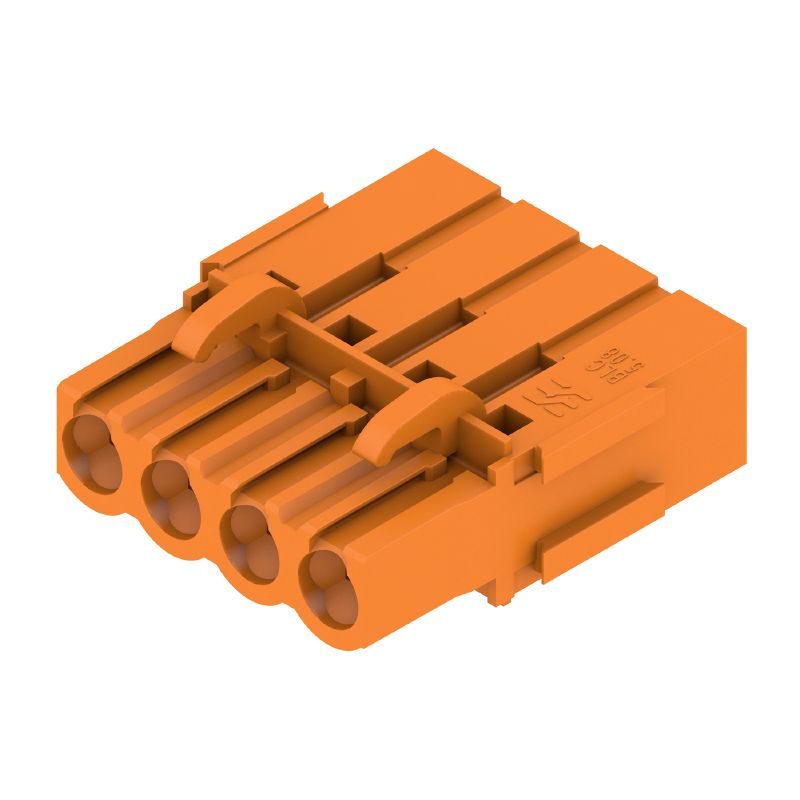

Introducing the BLC 508/04/180BR OR BX female plug PCB connector, expertly designed with a 508 mm pitch and four poles featuring a reliable crimp connection This connector accommodates a clamping range of up to 25 mm² and is available in a convenient box packaging Compliant with RoHS and UL standards, it is engineered to support voltages of 400 V at 21 A, as per IEC specifications, and can handle wire sizes ranging from AWG 26 to AWG 14 with a maximum voltage rating of 300 V at 10 A.

Ensure secure and efficient connections with this versatile PCB connector.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Rated for 400 V and capable of supporting various wire connections.

•Touch-safe protection according to DIN VDE standards.

•Can be coded to avoid incorrect polarity.

•Durability with a minimum of 25 plugging cycles.

•Used in field connection scenarios.

•Flexible connections for electrical devices.

Specifications:
