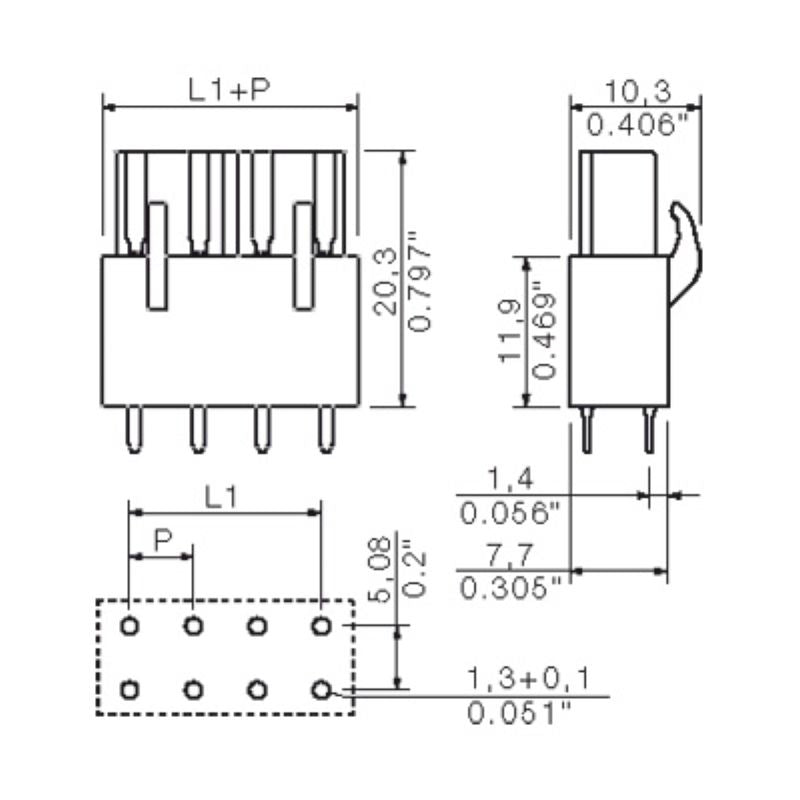

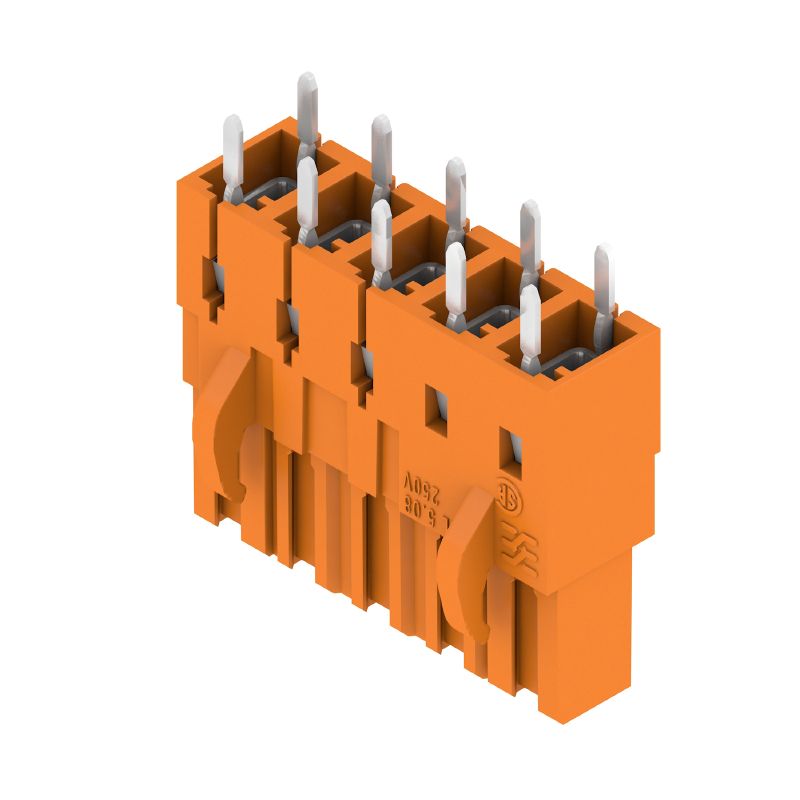

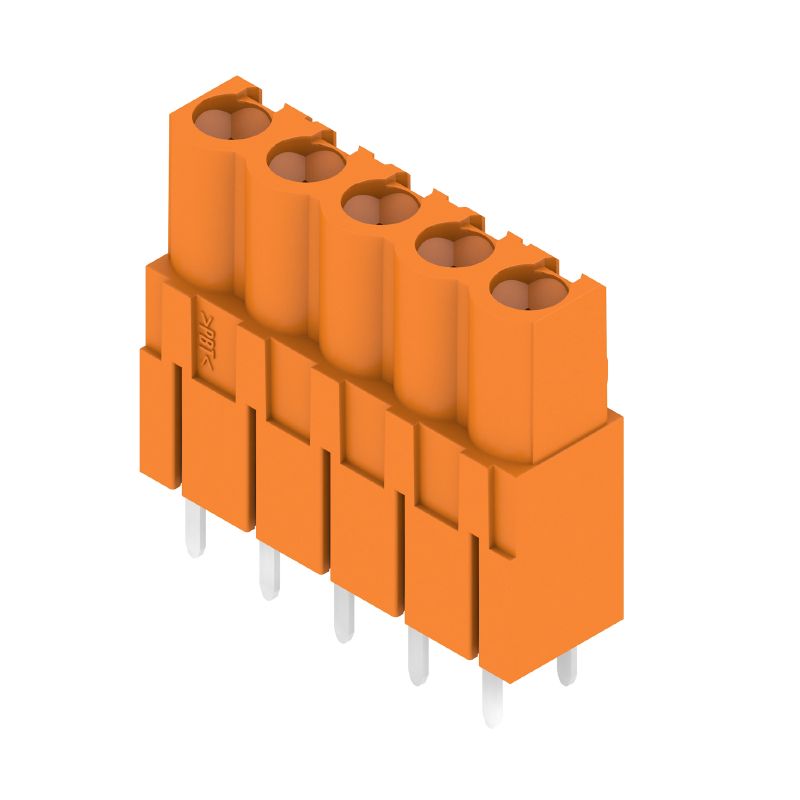

1646170000 - 5-Pole 5.08mm PCB Connector with 4.5mm Solder Pins (Pack of 72)

1646170000 - 5-Pole 5.08mm PCB Connector with 4.5mm Solder Pins (Pack of 72)

SKU: SKU: 1646170000   Download PDF

Select a Variant:
  • 1646170000 - 5-Pole 5.08mm PCB Connector with 4.5mm Solder Pins (Pack of 72)
Qty:
Regular price Now $173.26   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $173.26 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the reliability of this PCB plug-in connector featuring a female header with a closed side configuration, tailored for through-hole solder applications It boasts a 508 mm pitch and includes 5 poles configured at a 180° angle for optimal connectivity The solder pin, measuring 45 mm in length, is finished in an eye-catching orange tinning This product comes conveniently packaged in a box for easy storage and transport.

Features and Benefits:

    •Complies with RoHS without exemptions.

    •Can be coded for specific applications.

    •Touch-safe protection according to DIN VDE standards.

    •High volume resistance of ≤5 mΩ.

    •Rated for 25 plugging cycles.

Specifications:

 Rated Voltage IEC 400 V / 23 A
 Rated Voltage UL 300 V / 15 A
 Number of Poles 5
 Solder Pin Length 4.5 mm
 Pitch 5.08 mm
 Protection Degree IP20
 Insulation Resistance 10^8 Ω
 UL 94 Flammability Rating V-0
 Operating Temperature Range -50 °C to 100 °C
 Storage Temperature Range -40 °C to 70 °C
 Material PBT GF
 Contact Material Copper alloy
 Contact Surface tinned
