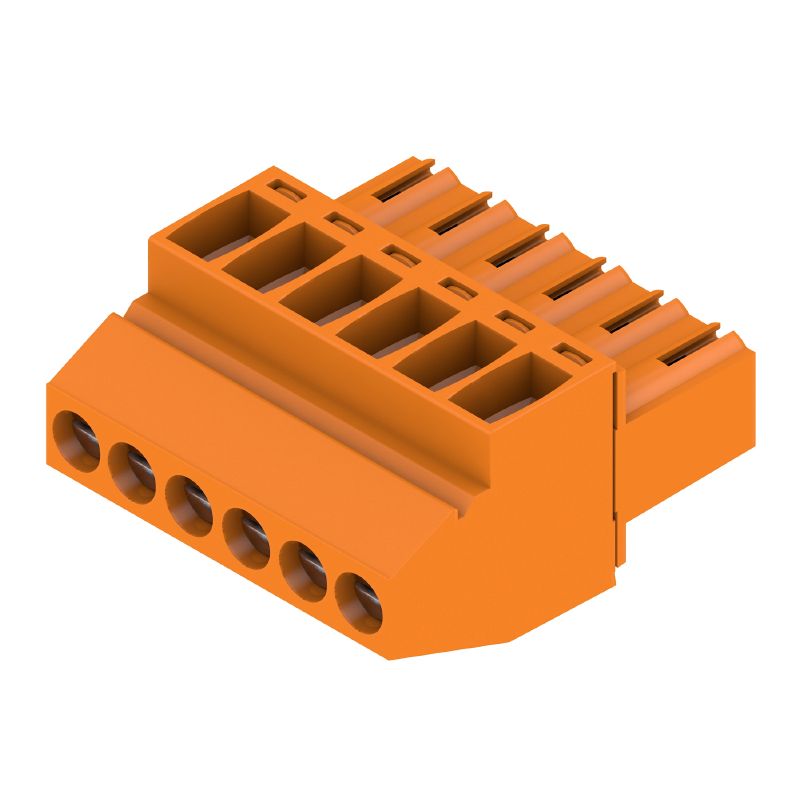

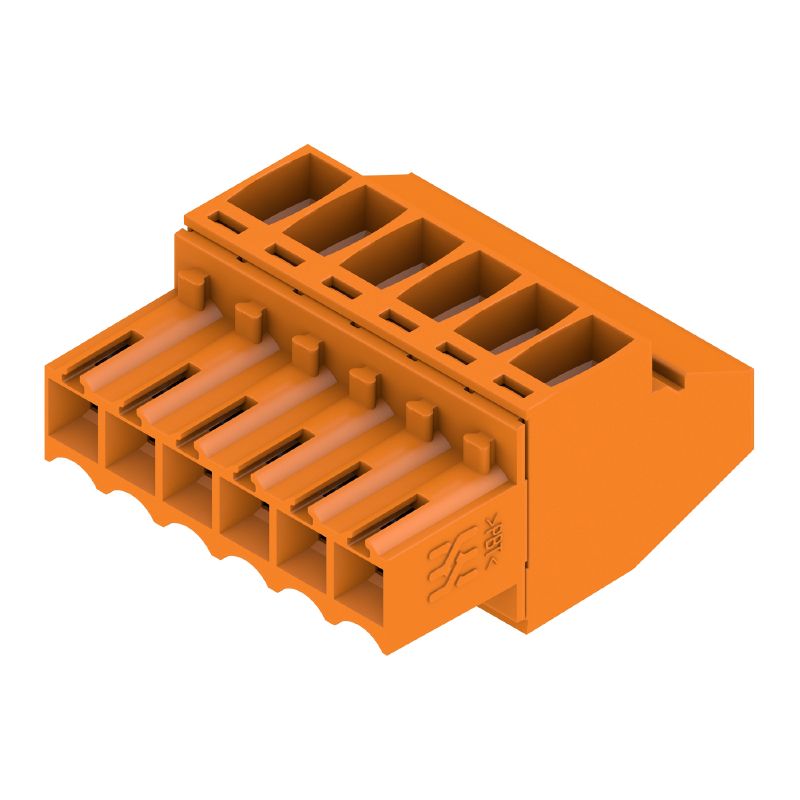

1638590000 - 3.50mm 6-Pole 90° Female Connector, 12A Capacity (Pack of 84)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a premium female plug-in connector, meticulously designed with a 90-degree angle and 6 poles spaced at 350 mm This connector employs a clamping yoke for secure connections and can accommodate wire sizes of up to 15 mm² With certifications for RoHS compliance and multiple UL standards, you can trust in its adherence to strict safety and environmental guidelines It is rated for a voltage of 320 V and can handle a maximum current of 12 A.

Packaged conveniently in boxes, this connector is a reliable choice for your electrical needs.

Features and Benefits:

•Clamping yoke connection for secure wire attachment.

•Complies with RoHS standards without exemptions.

•Touch-safe protection compliant with DIN VDE standards.

•Can be coded for specific applications and usages.

•Facilitates a variety of wire connections including fine-wired conductors.

Specifications:
