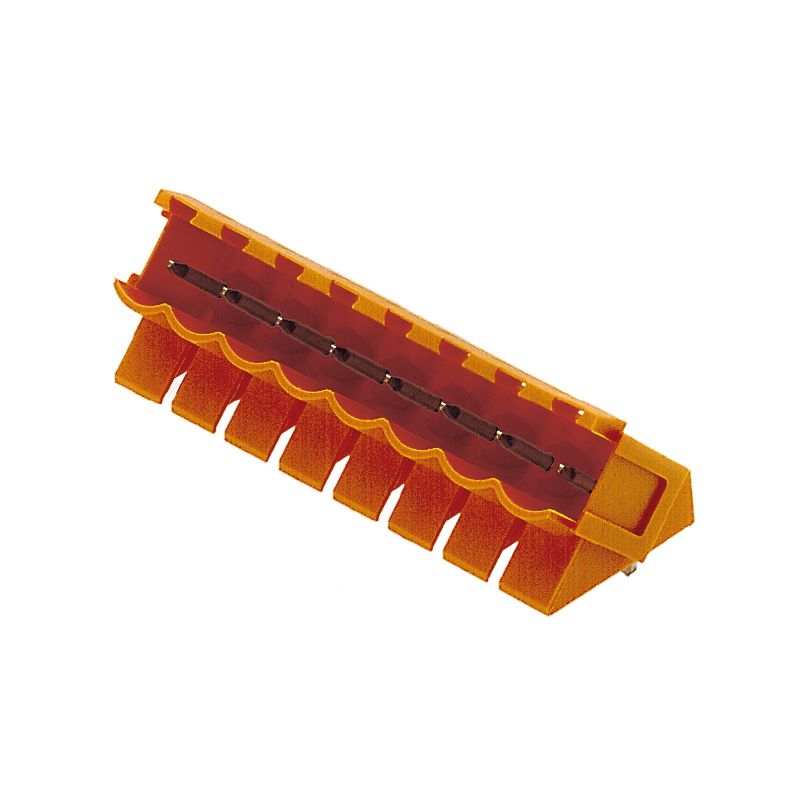

1630670000 - 21-Pole Male PCB Connector, 5mm Spacing, 135° Angle, Orange (Pack of 20)

1630670000 - 21-Pole Male PCB Connector, 5mm Spacing, 135° Angle, Orange (Pack of 20)

SKU: SKU: 1630670000   Download PDF

Select a Variant:
  • 1630670000 - 21-Pole Male PCB Connector, 5mm Spacing, 135° Angle, Orange (Pack of 20)
Qty:
Regular price Now $102.87   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $102.87 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This PCB plug-in male header connector is expertly designed for through-hole soldering, featuring a pin spacing of 500 mm and a total of 21 pins arranged at a 135° angle Each solder pin measures 32 mm in length and is tinned for improved connectivity Offered in a vibrant orange color, this connector is conveniently packaged in a sturdy box, making it an excellent addition for your electronic projects.

Features and Benefits:

    •Meets ROHS Compliance.

    •Solder pin length tolerance of +0.1 / -0.2 mm.

    •Touch-safe protection while unplugged.

    •IP20 protection degree when plugged.

    •Can be coded for additional security.

Specifications:

 Approved Standards IEC 60664-1, IEC 61984
 Rated Voltage {'surge voltage class II/2': '400 V', 'surge voltage class III/2': '320 V', 'surge voltage class III/3': '250 V'}
 Rated Current {'min. at 20°C': '17 A', 'max. at 20°C': '13 A', 'min. at 40°C': '15 A', 'max. at 40°C': '11 A'}
 Volume Resistance ≤5 mΩ

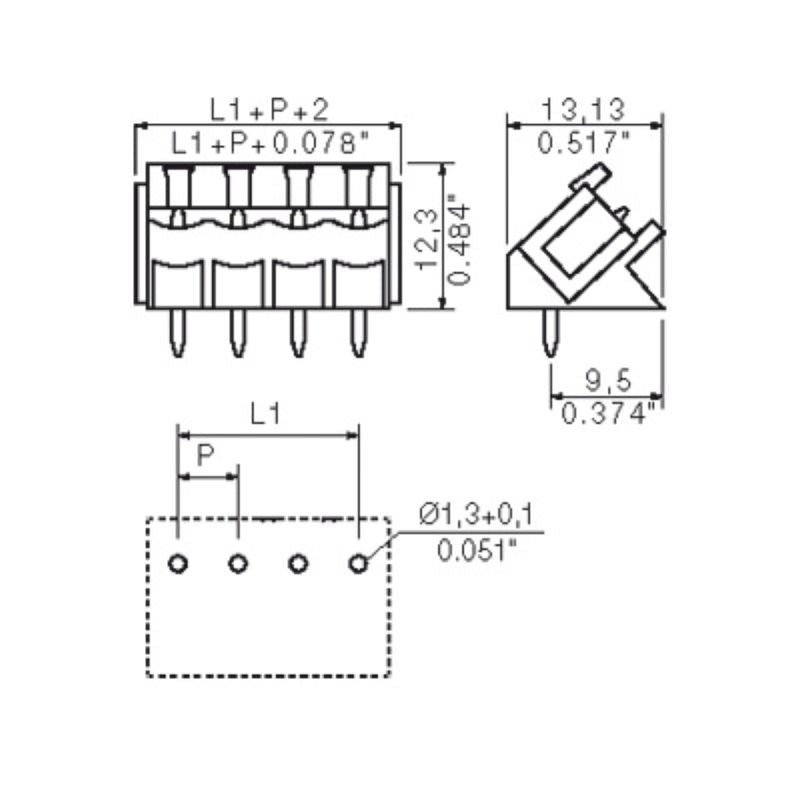

 Solder Eyelet Hole Diameter 1.3 mm
 Operating Temperature {'min': '-50 °C', 'max': '100 °C'}
 Storage Temperature {'min': '-40 °C', 'max': '70 °C'}
 Number of Poles 21
 Pitch 5 mm
 Plugging Force 10 N
 Pulling Force 8 N
