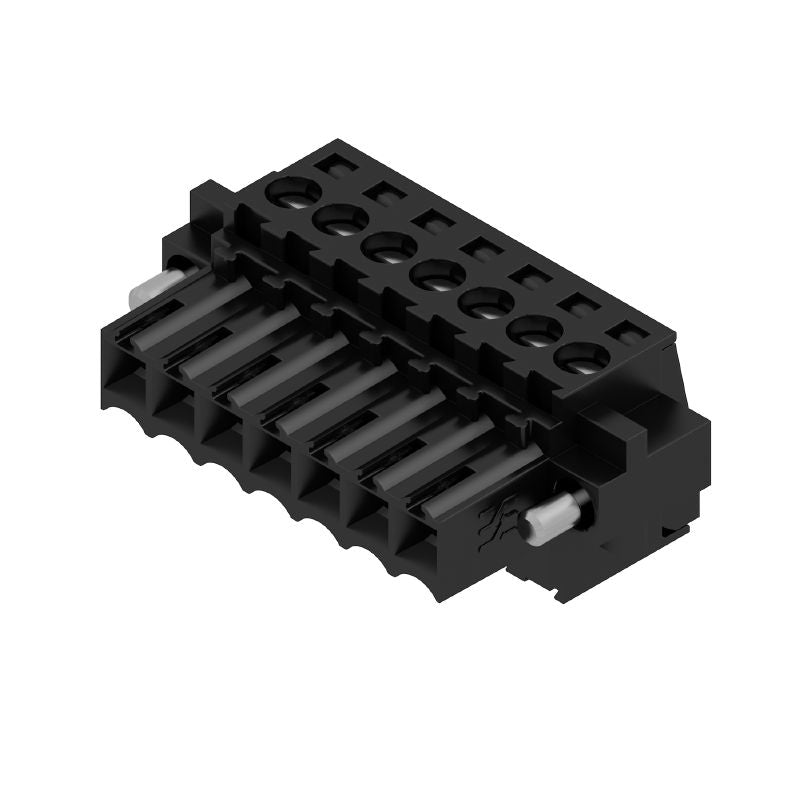

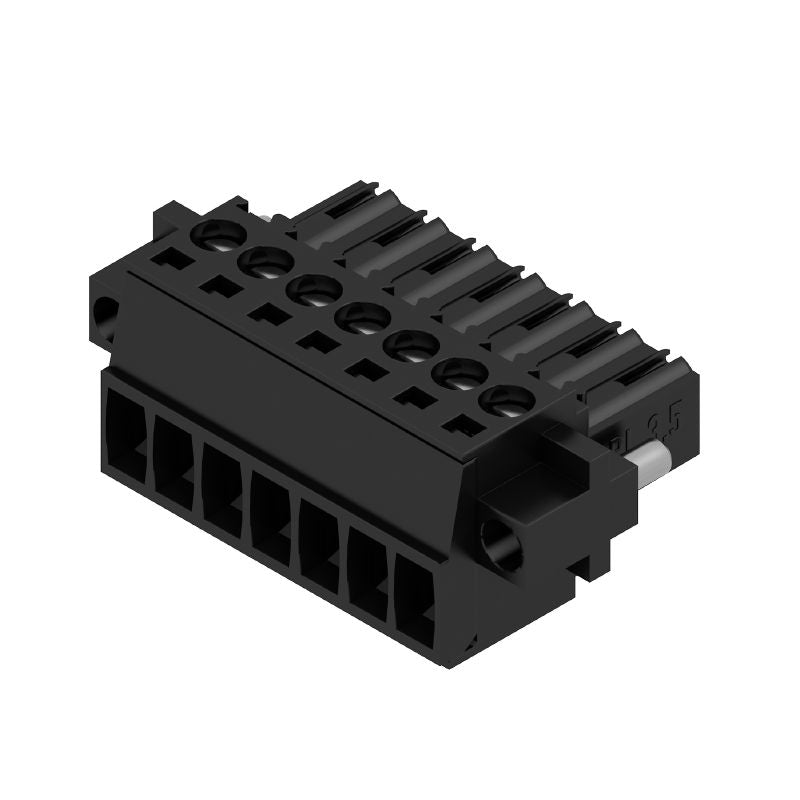

1615830000 - 3.50mm 7-Pole Female PCB Connector, 180° Angle, RoHS (Pack of 54)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BL 350/07/180F SN BK BX, a female plug PCB connector that showcases a compact 350 mm pitch and is configured with 7 poles in a 180° orientation This connector features a reliable clamping yoke connection, accommodating wire sizes up to 15 mm² Packaged securely in a box, it adheres to RoHS standards and proudly carries UL certification (E60693) Capable of handling a voltage of 320 V and a current of 17 A in line with IEC regulations, this connector is designed for seamless field connections, offering a plug design that promotes straightforward assembly and dependable secure wiring.

Features and Benefits:

•Easy field assembly with a clamping yoke connection.

•Safe from finger touch (Touch-safe protection acc. to DIN VDE 57 106).

•IP20 protection when fully mounted.

•Compatible with various wire types, accommodating different conductor cross-sections.

Specifications:
