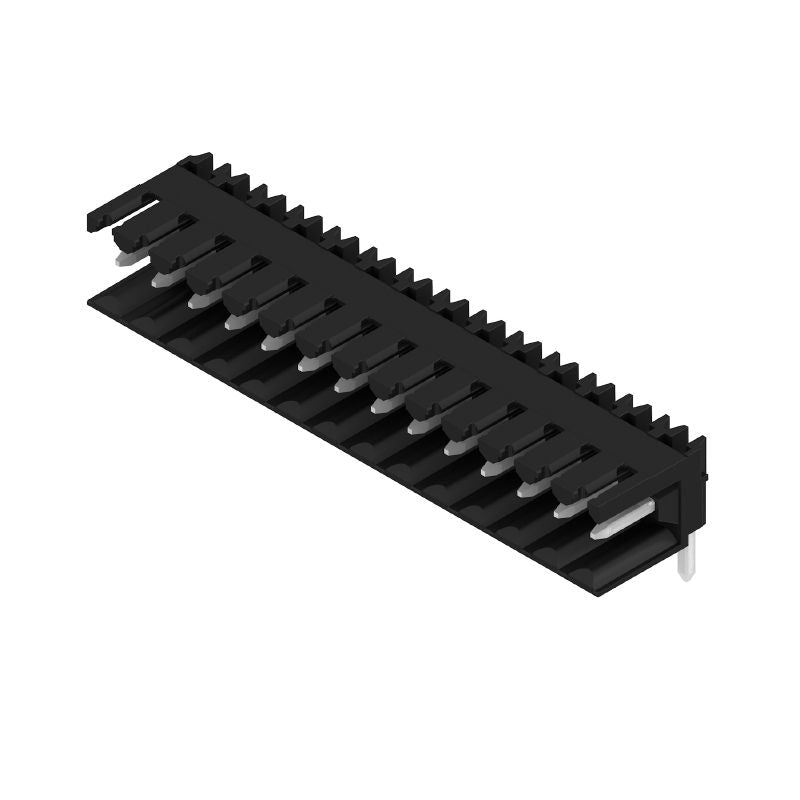

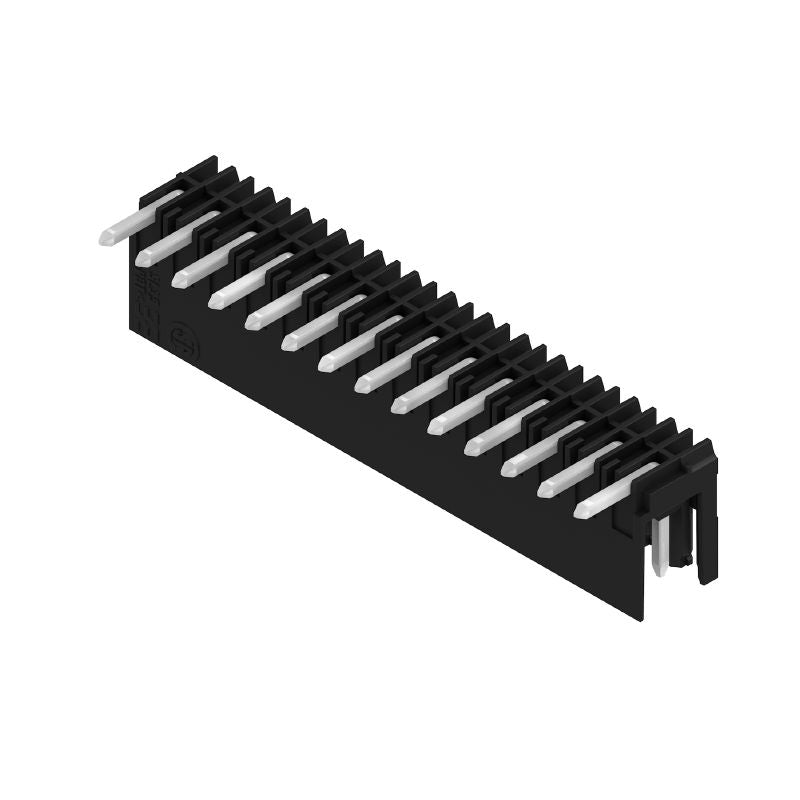

1615400000 - 3.50mm PCB Male Connector, 14 Poles, 90° Angle (Pack of 50)

SKU: SKU: 1615400000 Download PDF

Select a Variant:

1615400000 - 3.50mm PCB Male Connector, 14 Poles, 90° Angle (Pack of 50)

SET THE QTY:

Now $171.64 Web pricing policy

~~BEFORE $0.00~~ Now $171.64 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the SL 350/14/90 45SN BK BX connector, a robust plug-in component designed for printed circuit boards This male header features a 350 mm pitch and supports 14 pins arranged at a convenient 90° angle Each solder pin measures 45 mm in length and comes with a tinned black finish, ensuring secure connections Capable of handling up to 17 A at 20°C and 12 A at 40°C, this connector is built for reliable electrical performance.

Moreover, it meets RoHS standards and holds UL approval, confirming its suitability for a variety of electronic applications.

Features and Benefits:

•RoHS compliant without exemptions.

•Offers touch-safe protection as per DIN VDE standards.

•Can be coded for secure connections.

•Designed to withstand operating temperatures from -50°C to 100°C.

•Easy mounting on the PCB with THT solder connections.

Specifications:

IEC Voltage Rating	320 V / 17 A
UL Voltage Rating	300 V / 10 A

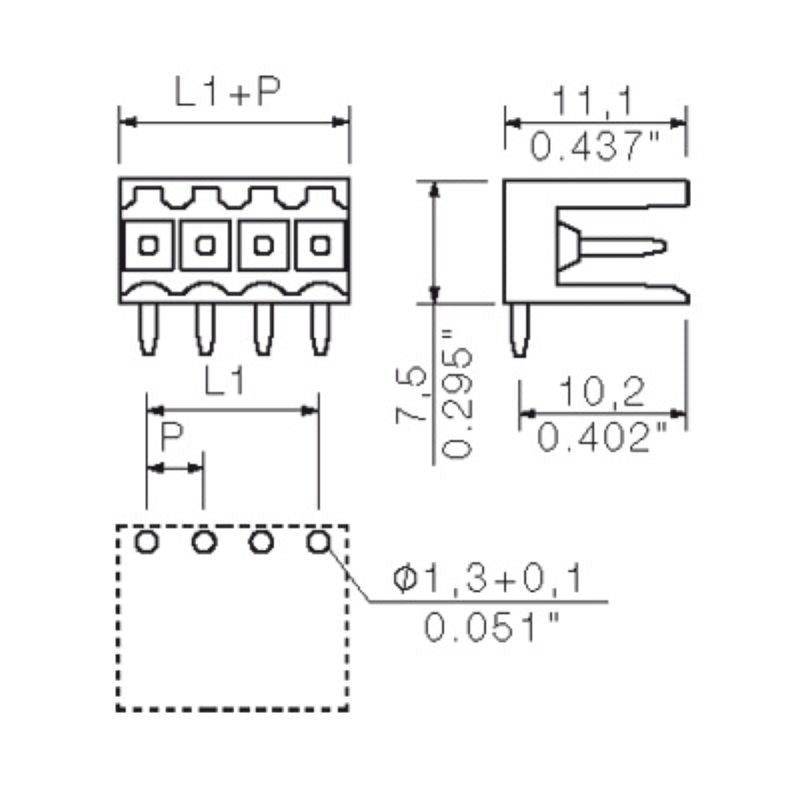

Depth	11.1 mm
Height	12 mm
Width	49 mm
Net Weight	4.18 g
Operating Temperature	-50°C to 100°C
Storage Temperature	-40°C to 70°C
Volume Resistance	≤5 mΩ
Solder Pin Dimensions	1.2 mm
Solder Eyelet Hole Diameter	1.4 mm
Rated Current	{'at 20°C': '17 A', 'at 40°C': '14.5 A'}
Rated Voltage	{'surge voltage class II': '320 V', 'surge voltage class III': '160 V'}
Touch-Safe Protection	finger-safe plugged / back-of-hand-safe unplugged
