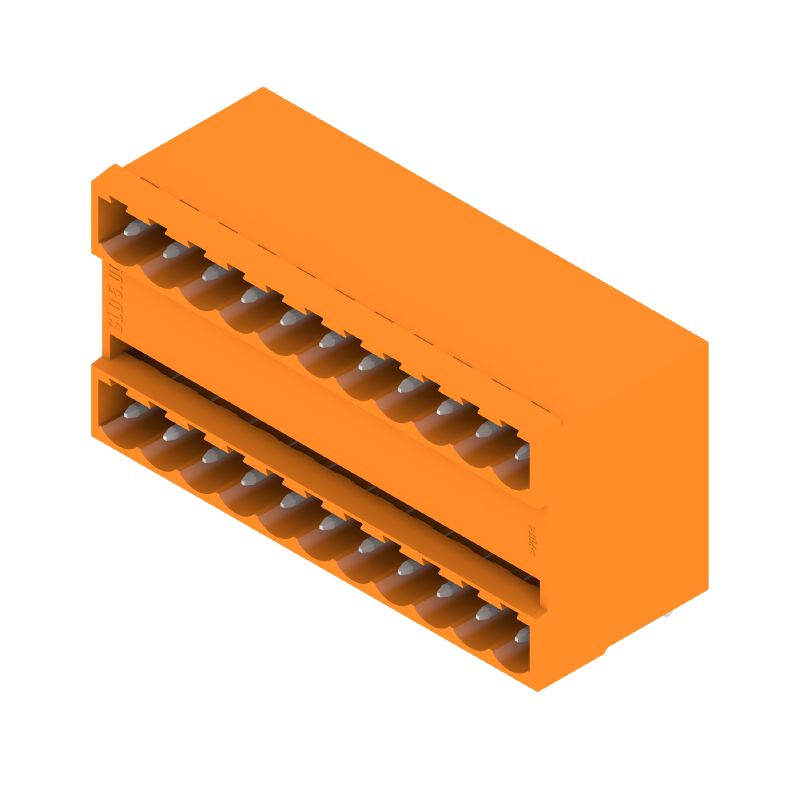

1614440000 - 5mm THT PCB Connector, 22 Poles, Male Header, Orange Box (Pack of 10)

1614440000 - 5mm THT PCB Connector, 22 Poles, Male Header, Orange Box (Pack of 10)

SKU: SKU: 1614440000   Download PDF

Select a Variant:
  • 1614440000 - 5mm THT PCB Connector, 22 Poles, Male Header, Orange Box (Pack of 10)
Qty:
Regular price Now $83.28   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $83.28 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our versatile PCB plug-in connector, a male header component featuring a closed side and through-hole (THT) solder connection This connector boasts a 500 mm pitch and is equipped with 22 poles arranged at a precise 90° angle Each solder pin extends 32 mm and is tin-coated for enhanced durability, all conveniently packaged in an orange box Engineered to comply with RoHS standards and carrying UL approval (certificate number E60693), this connector is built for reliability.

The robust solder pins can withstand a maximum pulling and plugging force of 3 N each Designed to operate efficiently within a temperature range of -50 °C to +100 °C, it adheres to various international electrical standards This component has undergone rigorous testing to meet specifications for rated current and voltage, assuring quality performance in a wide array of electrical applications.

Features and Benefits:

    •Compatible with THT solder connection.

    •Pitch of 5.00 mm.

    •Finger-safe unplugged and back-of-hand-safe plugged.

    •Can be coded for customization.

    •Meets international recognized standards and norms.

Specifications:

 Rated voltage 400 V / 300 V / 250 V
 Rated current 11 A / 10 A / 8.5 A
 Number of poles 22
 Solder pin length 3.2 mm
 Protection degree IP20
 Volume resistance ≤5 mΩ
 Insulating material PBT
 Solder pin dimensions d = 1.2 mm
 Operating temperature -50 °C to +100 °C
 Storage temperature -40 °C to +70 °C
 Touch-safe protection finger-safe unplugged/ back-of-hand-safe plugged
