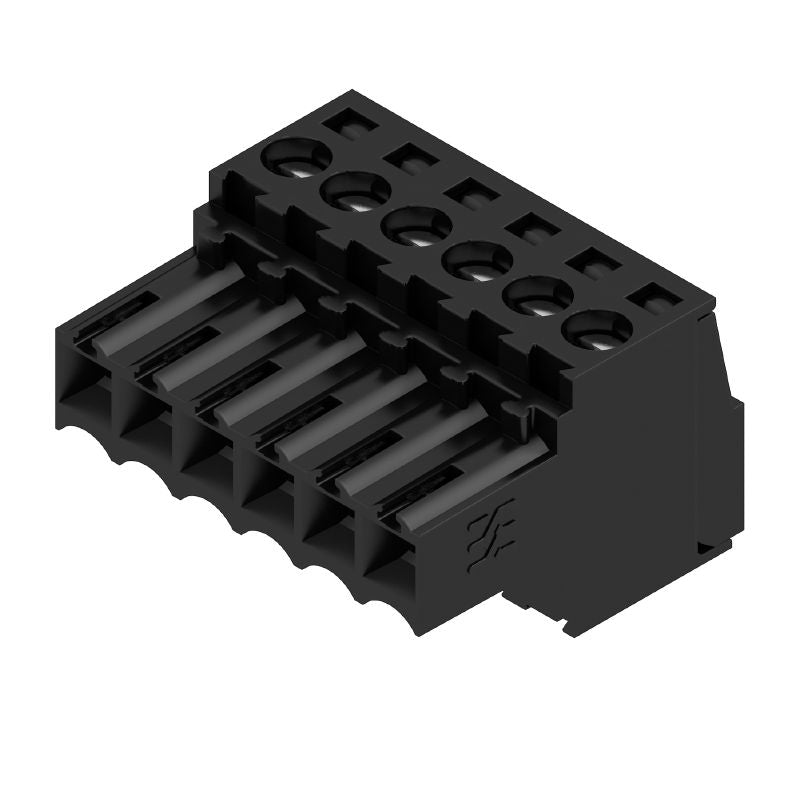

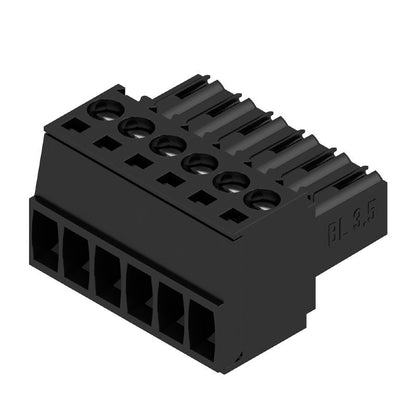

1610180000 - 3.50mm 6-Pole Female PCB Connector with 180° Connection (Pack of 84)

1610180000 - 3.50mm 6-Pole Female PCB Connector with 180° Connection (Pack of 84)

SKU: SKU: 1610180000   Download PDF

Select a Variant:
  • 1610180000 - 3.50mm 6-Pole Female PCB Connector with 180° Connection (Pack of 84)
Qty:
Regular price Now $351.89   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $351.89 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our 350 mm pitch PCB plug-in female connector, featuring 6 poles and a 180° connection orientation This component is engineered with a clamping yoke connection method, accommodating a maximum clamping range of 15 mm² Each connector is conveniently packaged in a box for easy storage and transport Perfect for your electronic projects or repairs, this connector combines functionality and reliability in one compact design.

Features and Benefits:

    •Meets RoHS compliance standards.

    •Suitable for connection of fine-wired conductors.

    •Includes touch-safe protection according to DIN VDE standards.

    •Designed for a voltage range up to 320 V and current up to 17 A.

    •Field connection in various PCB applications.

Specifications:

 Rated voltage (IEC) 320 V
 Rated current (IEC) 17 A
 Clamping range, max. 1.5 mm²
 Pitch 3.5 mm
 Dimensions {'Depth': '18.5 mm', 'Height': '13 mm', 'Width': '21 mm'}
 Protection degree IP20
 Insulating material PBT
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Volume resistance ≤5 mΩ
 Touch-safe protection IP20 plugged/ IP10 unplugged
