Product Information

Description:

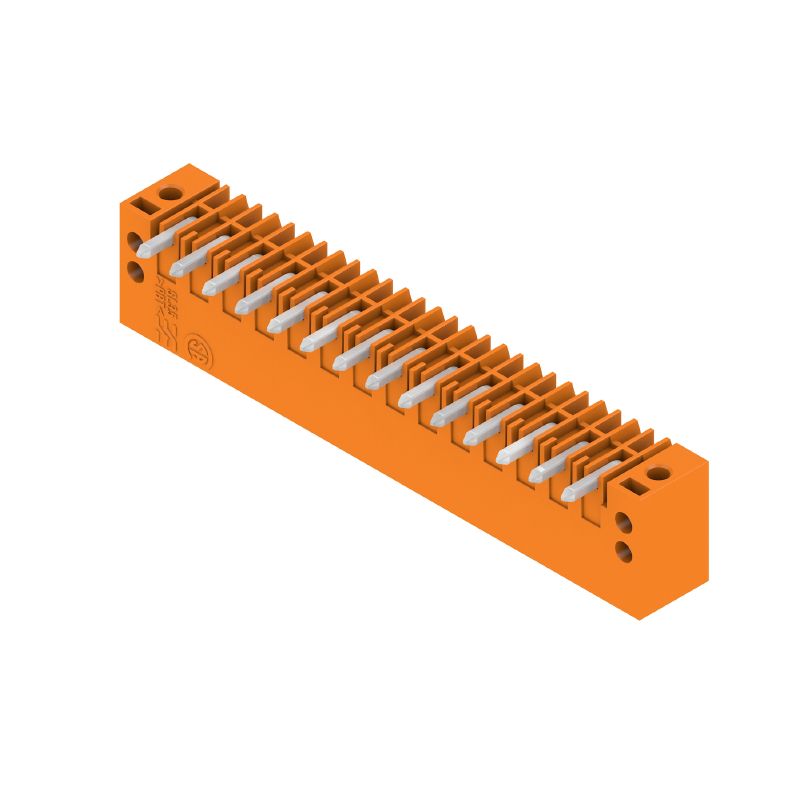

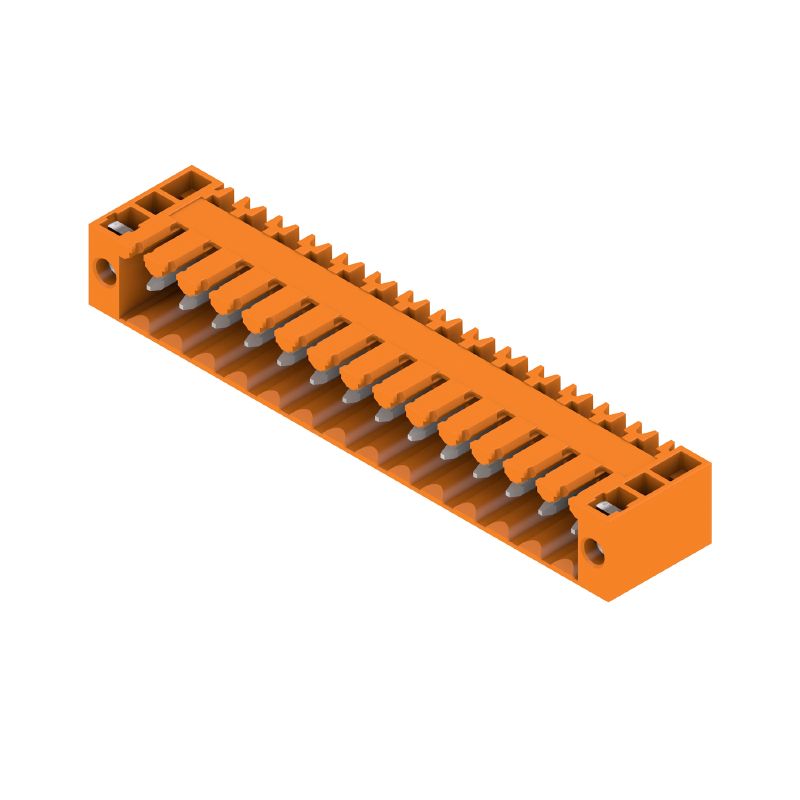

This male header PCB plug-in connector is specifically crafted for THT solder connections, featuring a robust flange design It comes with a 350 mm pin pitch and supports 14 poles at a 90-degree angle, making it ideal for various electronic applications The solder pin length measures 32 mm, and the connector is presented in an eye-catching orange color, all conveniently packaged in a box for easy handling.

Features and Benefits:

•Certified ROHS conformant.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for secure connections.

•Available in a packaging box.

•Suitable for PCB applications requiring a robust connector.

Specifications:

Rated Voltage (IEC)	320 V / 17 A
Rated Voltage (UL)	300 V / 10 A

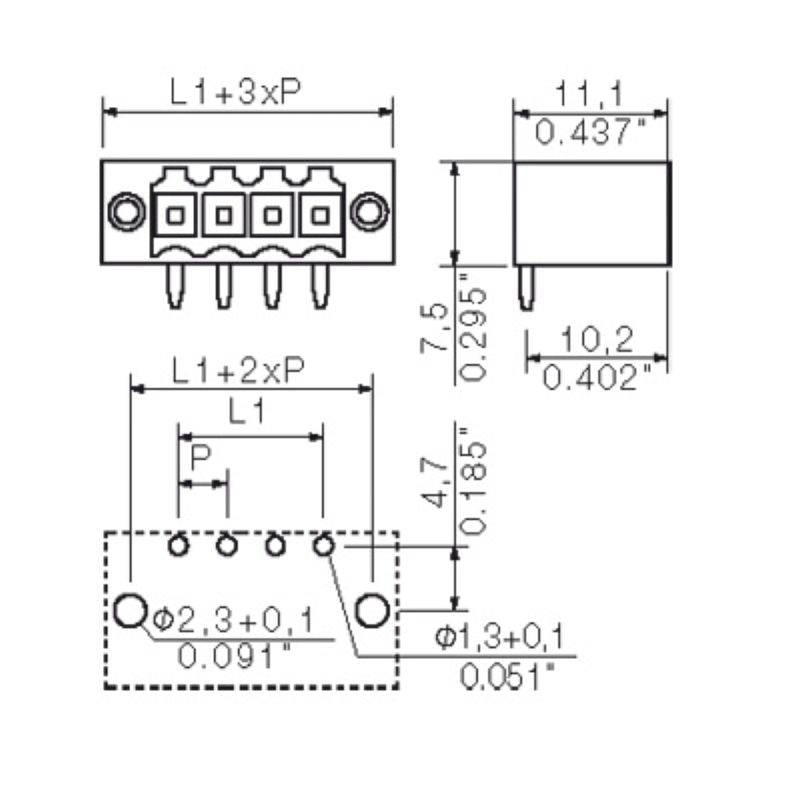

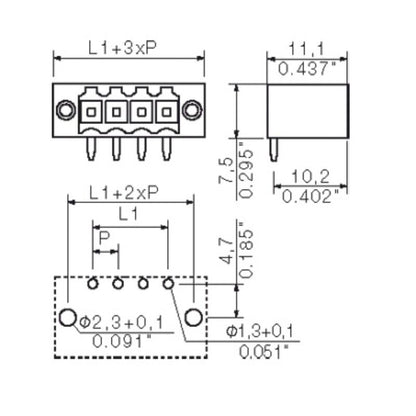

Dimensions (mm)	{'Depth': '11.1', 'Height': '10.7', 'Width': '56'}
Volume resistance	6.00 mΩ
Solder pin diameter	1.2 mm
Environmental Compliance	{'RoHS Compliance': 'Compliant', 'REACH SVHC': 'No SVHC above 0.1 wt%'}
Insulating Material	PBT
Storage Temperature	{'Min': '-40 °C', 'Max': '70 °C'}
Operating Temperature	{'Min': '-50 °C', 'Max': '100 °C'}
Rated Current at 20°C	{'Min Poles': '17 A', 'Max Poles': '12 A'}
Rated Current at 40°C	{'Min Poles': '14.5 A', 'Max Poles': '10 A'}
Touch-safe Protection	Finger-safe plugged / back-of-hand-safe unplugged
Tightening Torque	{'Min': '0.1 Nm', 'Max': '0.15 Nm'}
