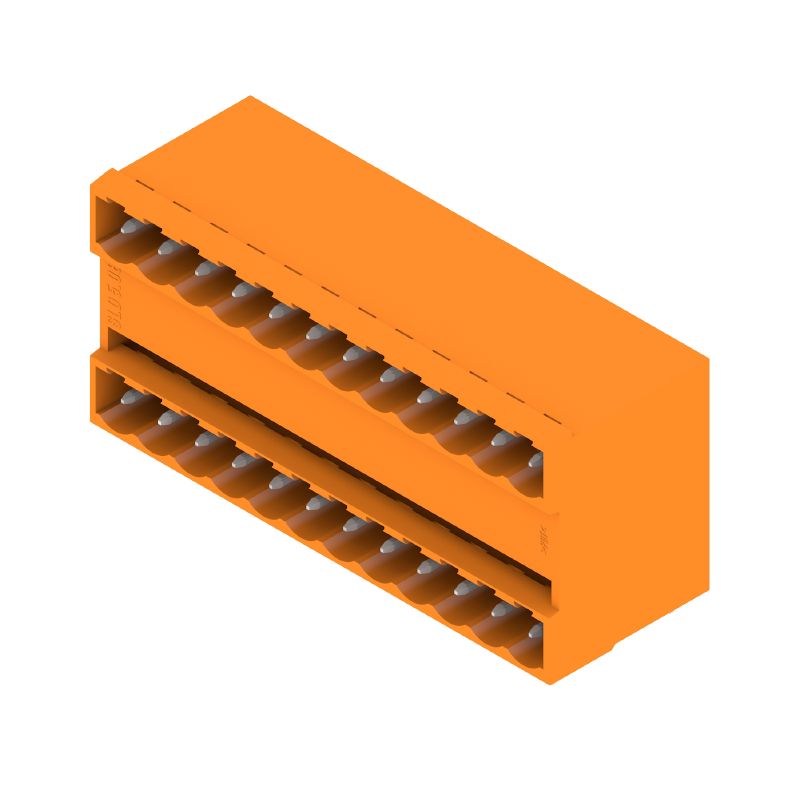

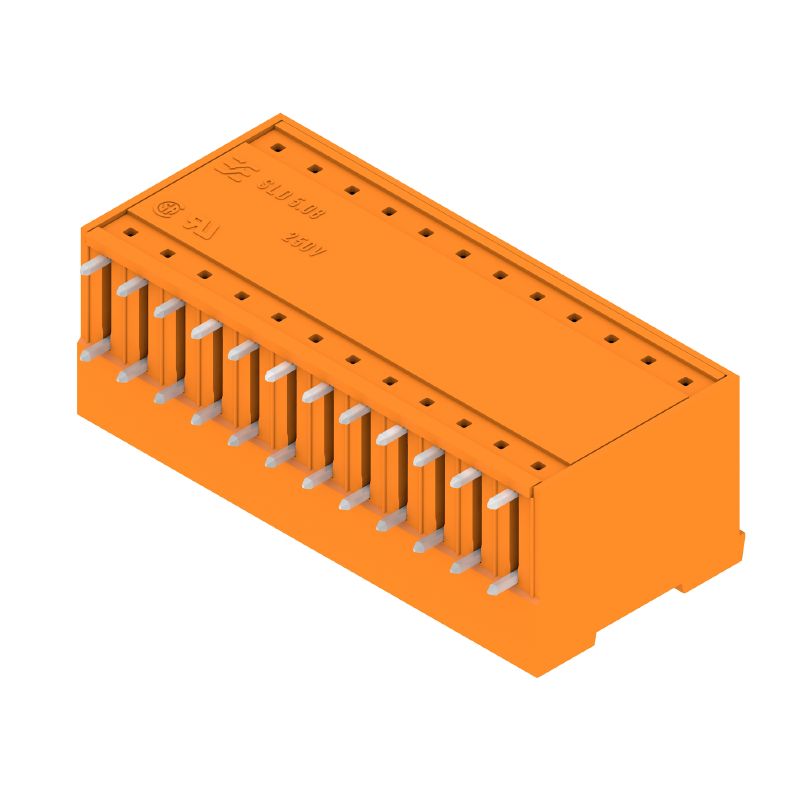

1601890000 - 5.08mm Male Header Connector with 24 Poles, 90° Angle (Pack of 10)

1601890000 - 5.08mm Male Header Connector with 24 Poles, 90° Angle (Pack of 10)

SKU: SKU: 1601890000   Download PDF

Select a Variant:
  • 1601890000 - 5.08mm Male Header Connector with 24 Poles, 90° Angle (Pack of 10)
Qty:
Regular price Now $95.19   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $95.19 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SLD 508/24/90G 32SN OR BX, a reliable male header PCB plug-in connector designed specifically for through-hole soldering This component features a 508 mm pitch and is equipped with 24 poles, positioned at a 90° angle Each solder pin measures 32 mm in length and sports a tinned finish, all housed within a vibrant orange casing Adhering to RoHS regulations and holding UL certification number E60693, this connector ensures compliance and quality for your electronic projects.

Features and Benefits:

    •Rated data according to IEC 320 V / 11 A and UL 300 V / 10 A.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

    •Number of solder pins per pole is 1.

    •Suitable for PCB mounting with THT solder connection.

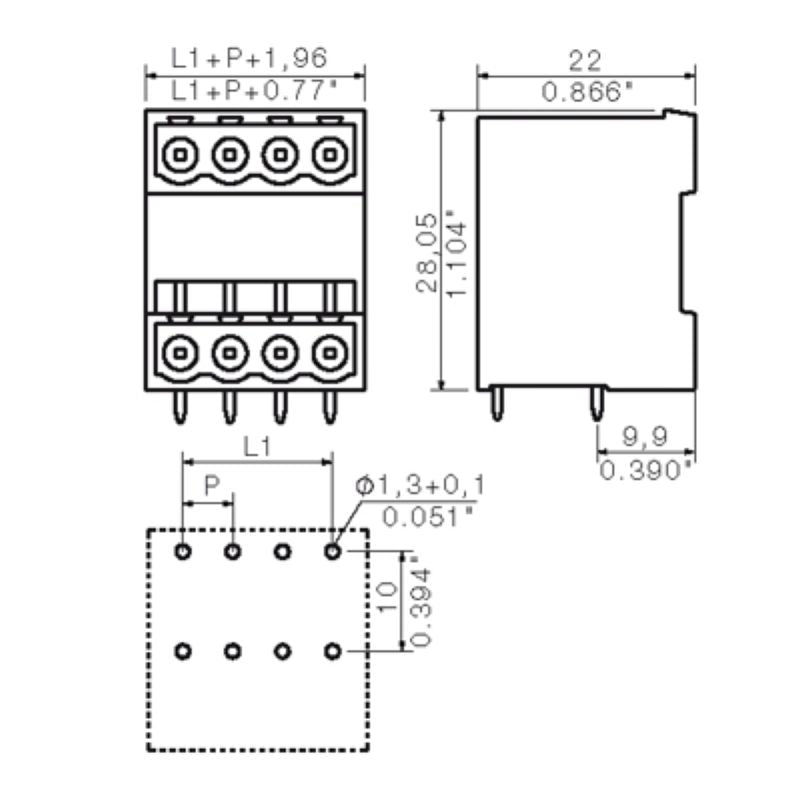

Specifications:

 Depth 22 mm
 Height 28.7 mm
 Width 62.92 mm
 Pitch in mm 5.08 mm
 Outgoing elbow 90°
 Number of poles 24
 Solder pin length 3.2 mm
 Touch-safe protection finger-safe unplugged, back-of-hand-safe plugged
 Protection degree IP20
 Volume resistance ≤5 mΩ
 Plugging cycles 25
 Insulating material PBT
 Comparative Tracking Index (CTI) ≥ 200
 UL 94 flammability rating V-0
 Storage temperature -40 °C to 70 °C
 Operating temperature -50 °C to 100 °C
 Rated voltage 300 V
