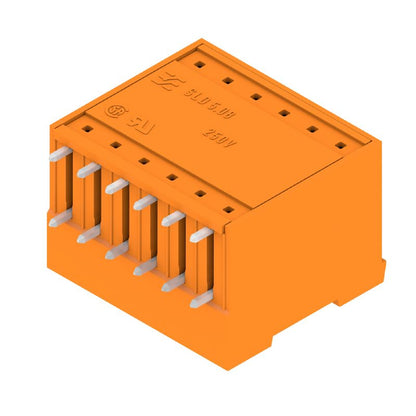

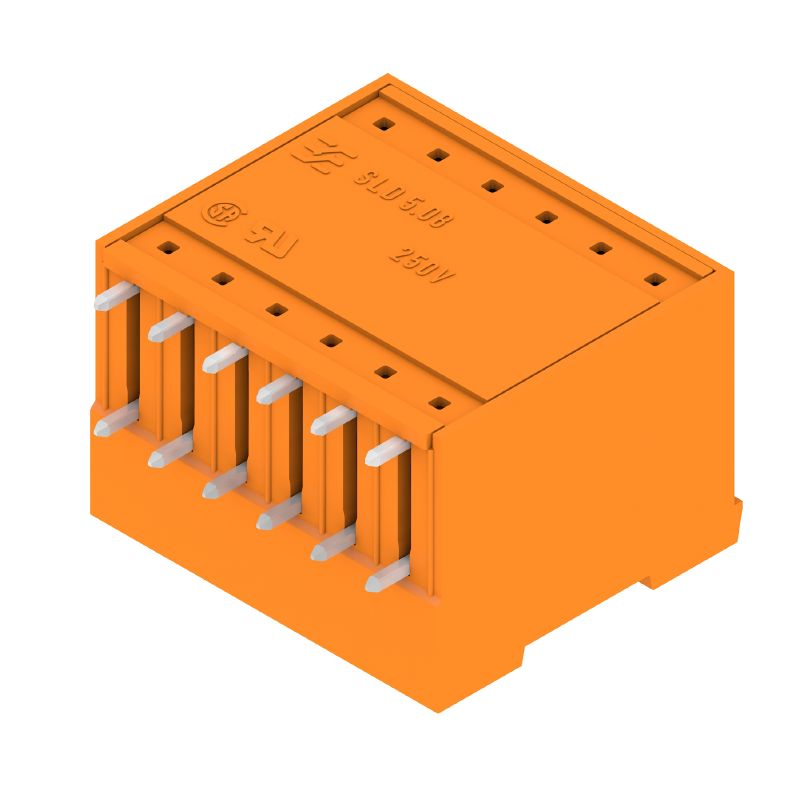

1601830000 - 12 Pole PCB Connector, 5.08mm Pitch, 90° Elbow, Orange (Pack of 50)

1601830000 - 12 Pole PCB Connector, 5.08mm Pitch, 90° Elbow, Orange (Pack of 50)

SKU: SKU: 1601830000   Download PDF

Select a Variant:
  • 1601830000 - 12 Pole PCB Connector, 5.08mm Pitch, 90° Elbow, Orange (Pack of 50)
Qty:
Regular price Now $237.96   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $237.96 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile male header connector designed specifically for PCB plug-in applications This connector features a closed-side design with through-hole solder (THT) connections, offering a 508 mm pitch for reliable performance It includes 12 poles and boasts a 90° outgoing elbow angle for efficient space management The tinned solder pin has a length of 32 mm and is available in a vibrant orange color.

Conveniently packaged in a box, this connector is ideal for your electronic projects.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Touch-safe protection as per DIN VDE 57 106, finger-safe when unplugged.

    •Can be coded for design flexibility.

    •Allows for a maximum of 25 plugging cycles.

Specifications:

 IEC Rated Voltage 320 V / 11 A
 UL Rated Voltage 300 V / 10 A

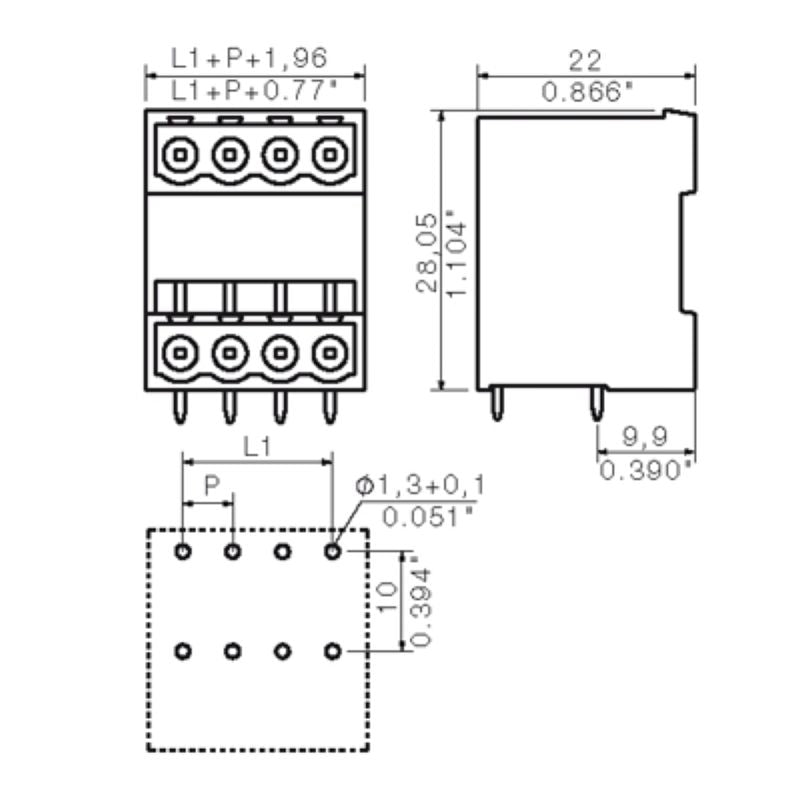

 Depth 22 mm
 Height 28.7 mm
 Width 32.44 mm
 Net Weight 12.78 g
 Pitch 5.08 mm
 Number of Poles 12
 Solder Pin Length 3.2 mm
 Protection Degree IP20
 Storage Temperature (Min) -40 °C
 Storage Temperature (Max) 70 °C
 Operating Temperature (Min) -50 °C
 Operating Temperature (Max) 100 °C
