1581810000 - 5-Pole 5mm Pitch Orange PCB Connector, THT 3.2mm Solder Pins (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

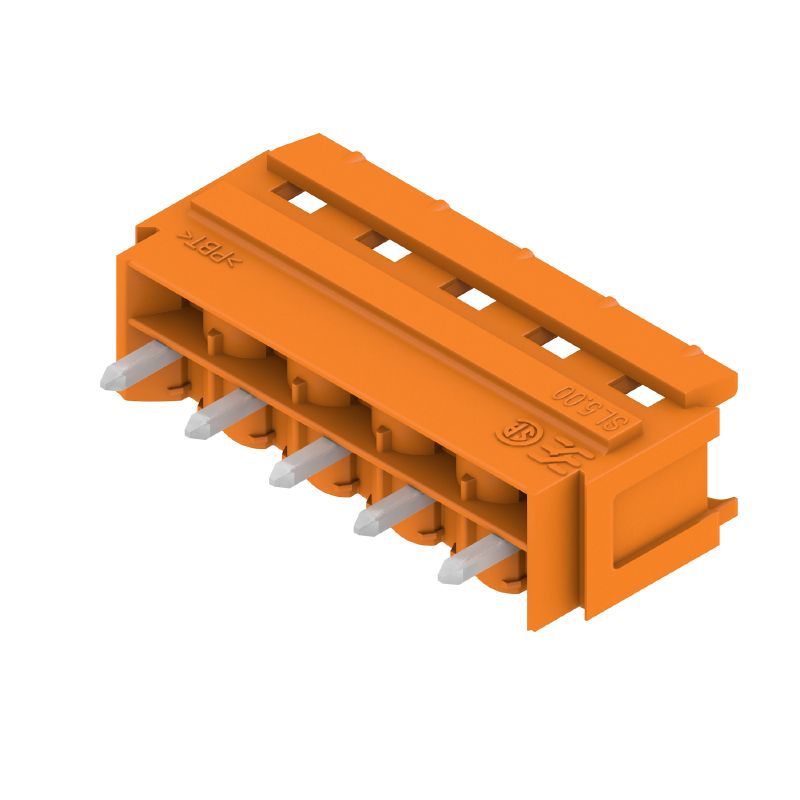

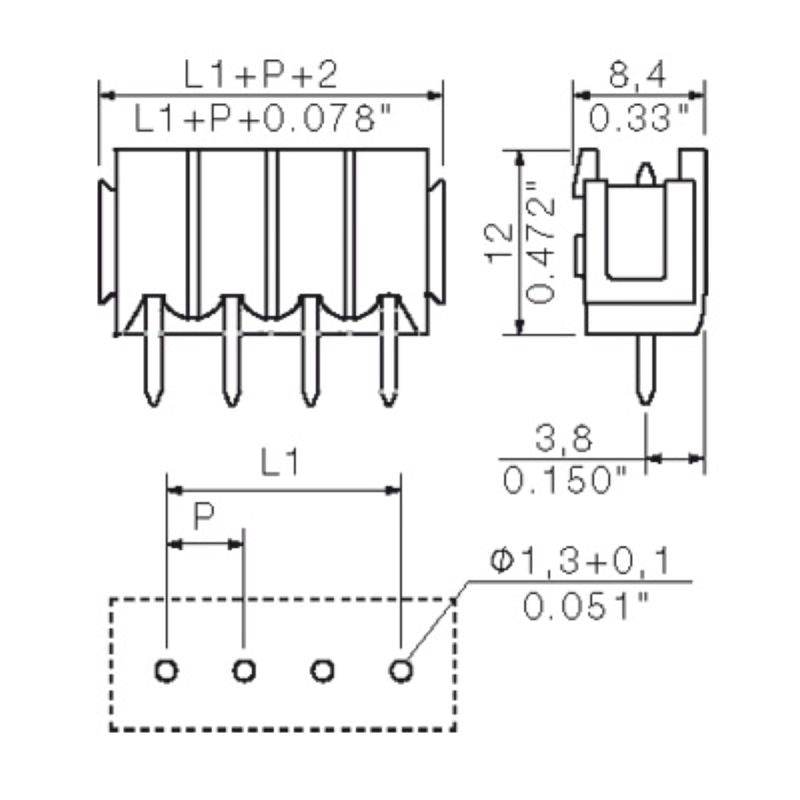

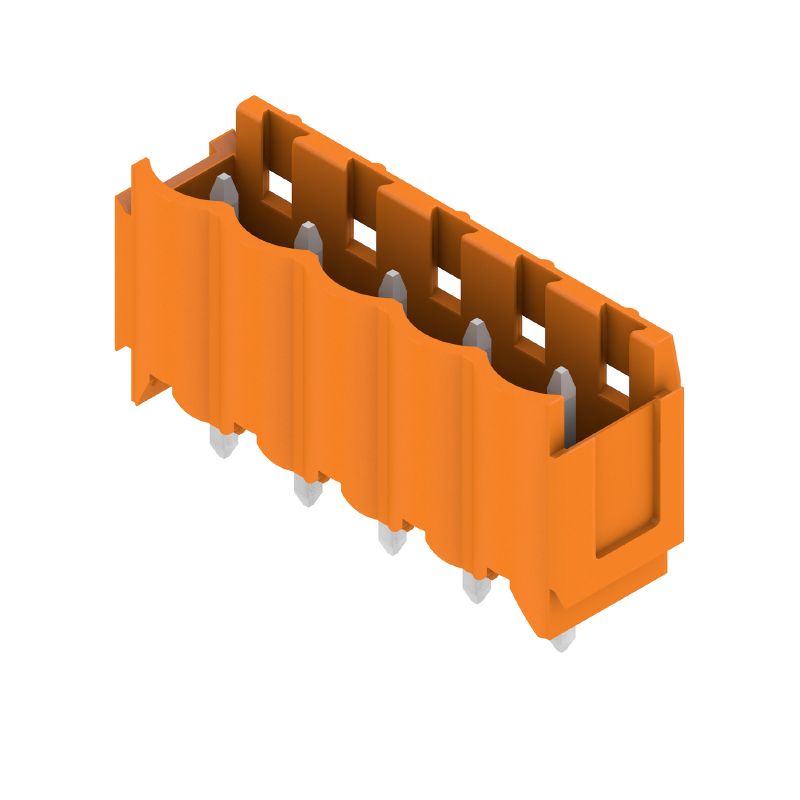

Introducing the SL 500/05/180B 32SN OR BX, a male header PCB plug-in connector ideally suited for precise board connections With a 500 mm pitch and 5 poles arranged at a 180° angle, this connector facilitates reliable electrical interfaces It features Through-Hole Technology (THT) solder connections, measuring 32 mm in pin length, each tinned for optimal conductivity The eye-catching orange hue adds a vibrant touch, making it easy to identify.

Packaged conveniently in a box, this connector adheres to RoHS standards, ensuring safety and compliance.

Features and Benefits:

•Conforms to RoHS without exemption.

•Touch-safe protection according to DIN VDE 57 106.

•Can be coded for different applications.

•Volume resistance is ≤5 mΩ.

•Designed for use with standard PCB mounting.

Specifications:
