1571180000 - 5mm Pitch Male Header PCB Connector, 7 Poles, 90° Angle (Pack of 50)

1571180000 - 5mm Pitch Male Header PCB Connector, 7 Poles, 90° Angle (Pack of 50)

SKU: SKU: 1571180000   Download PDF

Select a Variant:
  • 1571180000 - 5mm Pitch Male Header PCB Connector, 7 Poles, 90° Angle (Pack of 50)
Qty:
Regular price Now $77.95   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $77.95 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

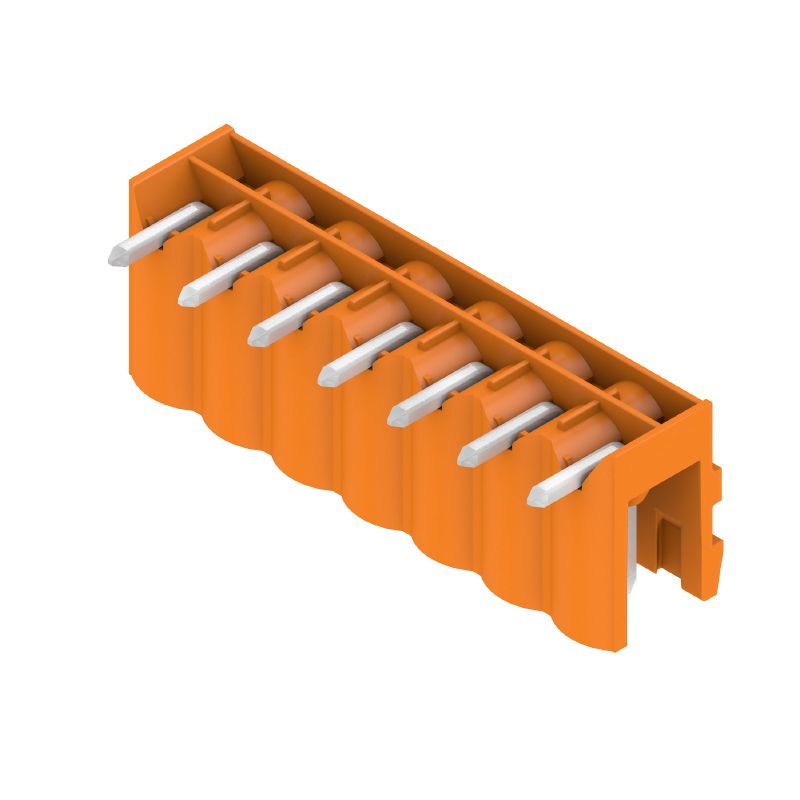

Introducing this versatile male header PCB plug-in connector, specifically crafted for open side applications Featuring Through-Hole Technology (THT) solder connections, it offers a 500 mm pitch across 7 poles at a 90-degree angle, ensuring reliable performance The solder pin length measures 32 mm and is finished with a tinned coating for enhanced conductivity This vibrant orange connector is conveniently packaged for easy storage and use.

Features and Benefits:

    •RoHS compliant.

    •Finger-safe when unplugged and back-of-hand-safe when plugged in.

    •Can be coded for user convenience.

Specifications:

 IEC Voltage Rating 400 V / 18 A
 UL Voltage Rating 300 V / 15 A

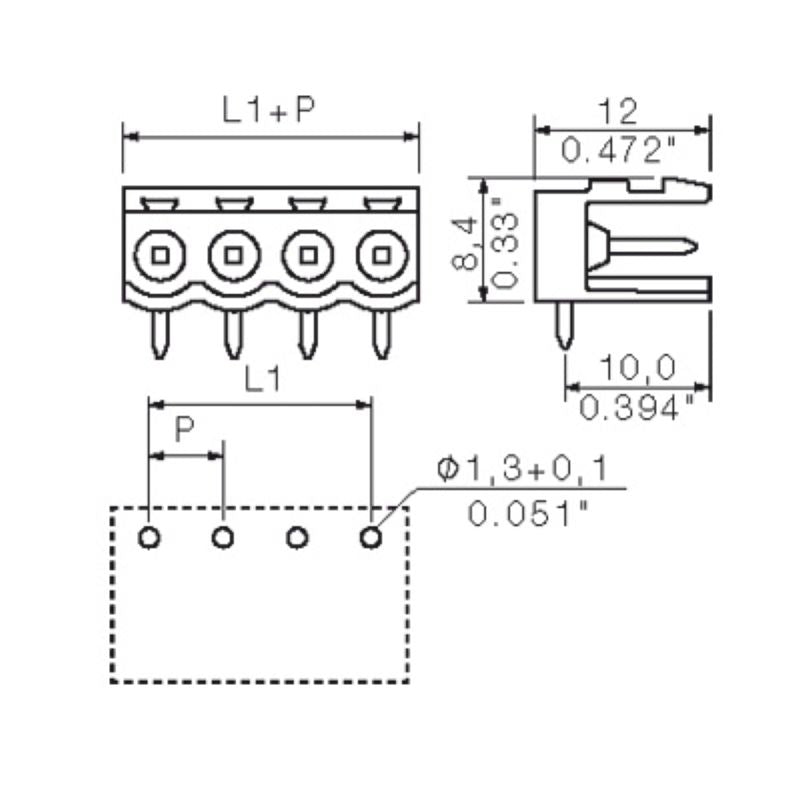

 Depth 12 mm
 Height 11.6 mm
 Width 35 mm
 Number of poles 7
 Solder pin length 3.2 mm
 Pitch 5 mm
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Insulating material PBT
 Contact material Cu-alloy
 Protection degree IP20
 Volume resistance ≤5 mΩ
