1568261639 - Yellow Conductor & Cable Markers, 4x7mm, RoHS Compliant (Pack of 250)

1568261639 - Yellow Conductor & Cable Markers, 4x7mm, RoHS Compliant (Pack of 250)

SKU: SKU: 1568261639 Download PDF

Variant:
  • 1568261639 - Yellow Conductor & Cable Markers, 4x7mm, RoHS Compliant (Pack of 250)
Regular price Now $17.32
Regular price BEFORE   $0.00 Sale price Now $17.32
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

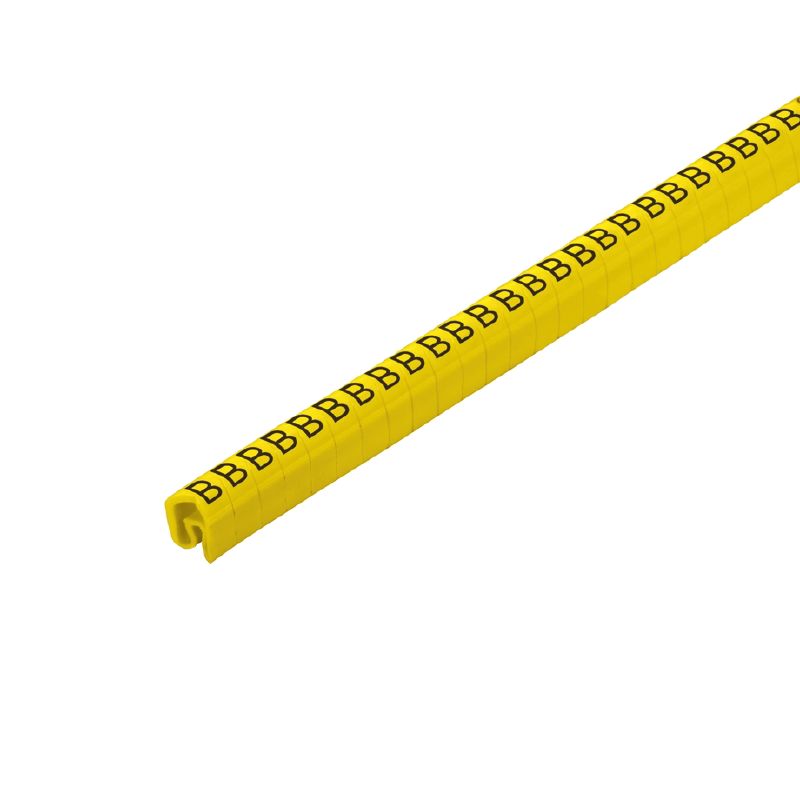

Presenting a versatile set of conductor and cable markers, specifically designed with dimensions ranging from 4 to 10 mm and a precise size of 4 x 7 mm These markers come in a vibrant yellow hue and adhere strictly to RoHS standards, confirming they are free from any hazardous substances above 01 weight percent Supplied on user-friendly reels, these markers are ideal for applications in the process and machinery sectors.

Features and Benefits:

    •Made of soft PVC, free from Cadmium.

    •Operating temperature range from -30 to 80 °C.

    •Hot-embossed printed characters in upper-case letters.

    •UL 94 flammability rating of V-0.

    •Useful in process and machinery industries.

Specifications:

 Depth 8 mm
 Height 4 mm
 Width 7 mm
 Conductor O.D. 4 - 10 mm
 Conductor cross-section, max. 16 mm²
 Conductor cross-section, min. 2.5 mm²
 Cross-section for connected wire 2.5 - 16 mm²
 Colour yellow
 Colour of printing black
 Number of markers per packaging unit 1 Reel
 Type of printing Standard
 Imprint B
 Orientation of print horizontal
 Halogen Yes
 Number of markers per combination 1 Reel = Conductor and cable markers
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
