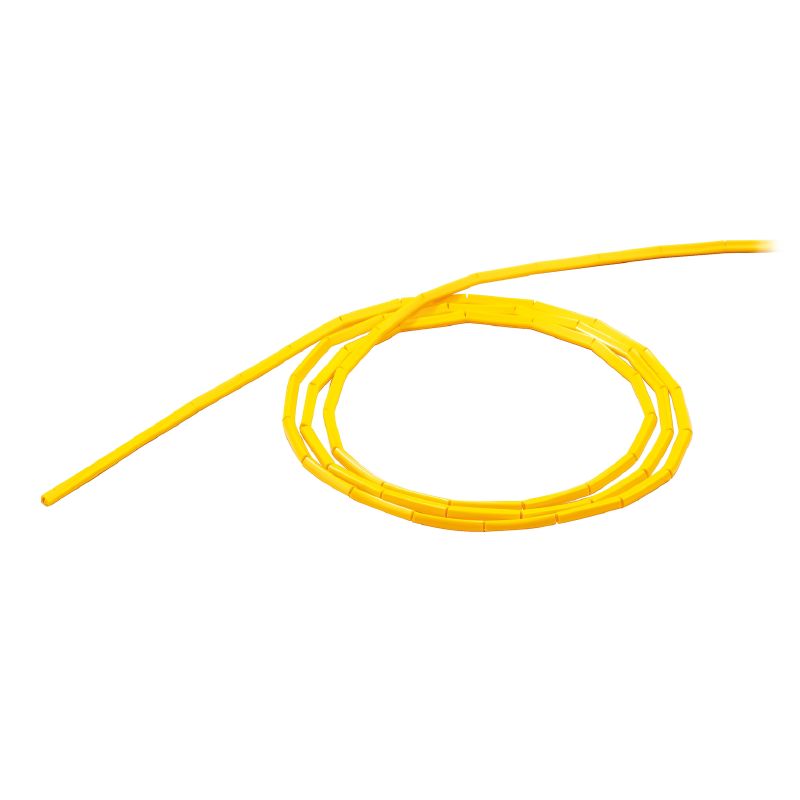

1899260000 - Cable Marker 10-317mm, RoHS Compliant Soft PVC (Pack of 100)

1899260000 - Cable Marker 10-317mm, RoHS Compliant Soft PVC (Pack of 100)

SKU: SKU: 1899260000 Download PDF

Variant:
  • 1899260000 - Cable Marker 10-317mm, RoHS Compliant Soft PVC (Pack of 100)
Regular price Now $20.77
Regular price BEFORE   $0.00 Sale price Now $20.77
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CLI M 2-15 SDR SG, an effective solution for conductor and cable identification, accommodating diameters from 10 mm to 317 mm This compact piece measures 114 mm in width, 15 mm in height, and 3 mm in depth Built in compliance with RoHS standards, these markers are crafted from soft PVC that is free from cadmium Utilizing ink jet technology for printing, they can be tailored to meet specific customer needs.

Designed to perform in a wide temperature range, this product operates effectively from -30 °C to 80 °C.

Features and Benefits:

    •Custom printing available.

    •Conformance to RoHS.

    •UL 94 flammability rating of V-0.

    •Halogen free.

Specifications:

 Operating temperature range -30...80 °C
 Depth 3 mm
 Height 15 mm
 Width 11.4 mm
 Conductor cross-section, max 500 mm²
 Conductor cross-section, min 16 mm²
 Conductor O.D. 10 - 317 mm
 Cross-section for connected wire 16 - 500 mm²
 Basic material PVC, soft, without Cadmium
 Colour of printing black
 Number of markers per packaging unit 1 Component part = Conductor and cable markers
 ECLASS classifications 27-40-04-01
