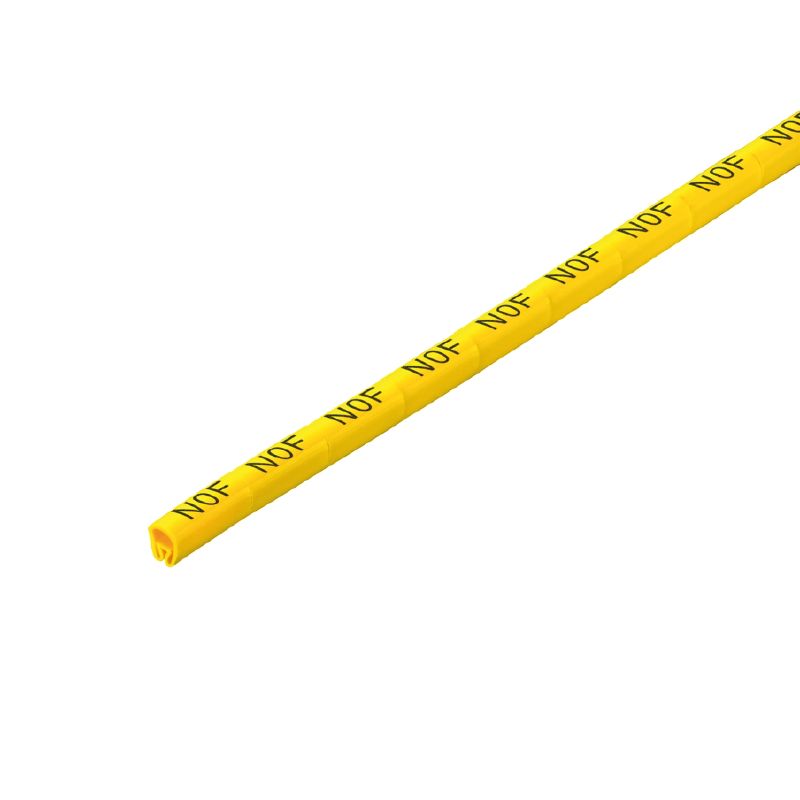

1871809999 - Marking Device for Cables 2.5-5mm Diameter, Custom Fit (Pack of 100)

1871809999 - Marking Device for Cables 2.5-5mm Diameter, Custom Fit (Pack of 100)

SKU: SKU: 1871809999 Download PDF

Variant:
  • 1871809999 - Marking Device for Cables 2.5-5mm Diameter, Custom Fit (Pack of 100)
Regular price Now $17.36
Regular price BEFORE   $0.00 Sale price Now $17.36
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The CLI C 1-18 SDR SG is expertly crafted for efficient marking of conductors and cables It accommodates a diameter range of 25 to 5 mm and handles cross-sectional areas from 15 to 4 mm², making it a versatile choice tailored to meet specific customer requirements.

Features and Benefits:

    •Compliance with RoHS and REACH regulations.

    •Made from soft PVC, free from cadmium.

    •Custom printing options are available.

    •Maximum operating temperature of 80 °C.

    •UL 94 flammability rating of V-0.

Specifications:

 Depth 5 mm
 Height 18 mm
 Width 4.2 mm
 Operating temperature range -30...80 °C
 Conductor O.D. 2.5 - 5 mm
 Conductor cross-section, max. 4 mm²
 Conductor cross-section, min. 1.5 mm²
 Colour of printing black
 Imprint Custom printing
 Printing method Ink jet technology
 Orientation of print horizontal
 Halogen Yes
