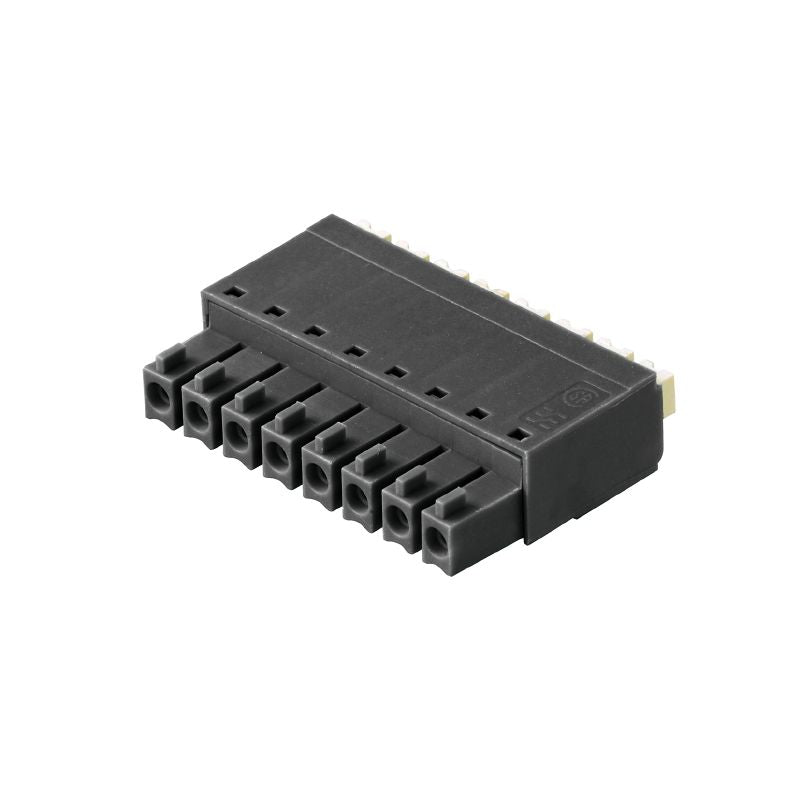

1535010000 - 3.81mm Female PCB Connector with Push-In Design, 180° Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BCF 381/05/180 SN BK BX TB, a versatile PCB plug-in connector designed for efficiency and functionality With a compact 381 mm pitch and a 180° angle for easy access, this female plug connector enables seamless push-in connections aided by an actuator It accommodates a maximum clamping range of 15 mm², making it a reliable choice for various applications Meeting rigorous standards including RoHS and UL (certificate number E60693), this connector is both compliant and dependable.

Conveniently packaged in boxes for easy ordering, it’s an ideal addition to your electronic components collection.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Easy wire connection with a push-in actuator.

•Suitable for a range of wire sizes from AWG 26 to AWG 16.

•Single row design allowing efficient space utilization.

•Touch-safe protection according to DIN standards.
