Description:

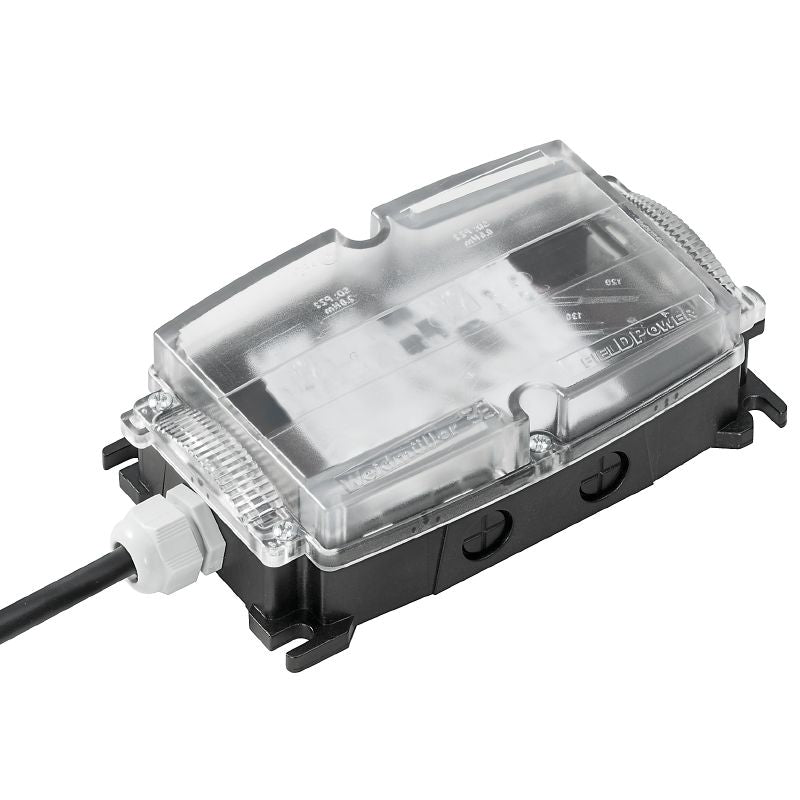

Introducing the FP MONO LED K DC SA, a versatile LED module that meets RoHS standards and has earned cULus certification (Certificate No E345151) This product is crafted for a wide range of applications, highlighting its commitment to environmental and technical compliance With dimensions of 208 mm in depth, 55 mm in height, and 104 mm in width, it has a net weight of 602 grams Designed to operate in challenging environments, it functions efficiently within a temperature range of -40 °C to +55 °C and can be safely stored at temperatures from -40 °C to 85 °C.
Features and Benefits:
•LED module has an operating lifetime exceeding 50,000 hours.

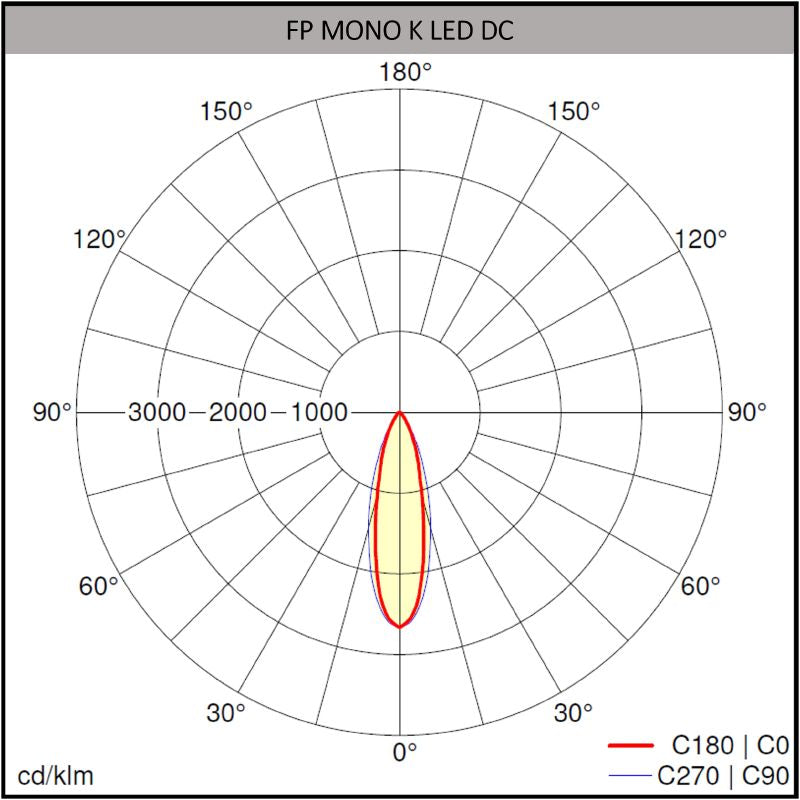

•Features a light output of 454 lumens and a luminosity of 3,000 cd.
•Offers a nominal voltage of 24 V with a power rating of 5 W.
•Designed for various mounting strategies and arbitrary installation positions.
•Short-circuit protection is provided internally.
•Protection class rated at II and rated IP54 for environmental safety.
•Shock resistant as per EN 60721-3-3 standards.
•Compliant with established ETIM and ECLASS classifications.
Specifications:
| Depth | 208 mm |
| Height | 55 mm |
| Width | 104 mm |
| Operating temperature | -40 °C to +55 °C |
| Storage temperature | -40 °C to 85 °C |
| Nominal current | 0.2 A |
| DC input voltage range | 20...60 V DC |
| Insulation voltage | <500 V (housing/PE) |
| Protection degree | IP54 |
| Type of connection | Open cable end, length 2 m |
| Type of mounting | Screw mounting |
| Vibration resistance | Class 3M3 sinusoidal, stationary |
| Humidity | 92 % @ 25 °C |
| Halogen | yes (PVC cable) |
| Surge voltage category | II |
