1488520000 - UL Certified LED Light, 208mm Depth, RoHS Compliant
1488520000 - UL Certified LED Light, 208mm Depth, RoHS Compliant
SKU: SKU: 1488520000 Download PDF
- 1488520000 - UL Certified LED Light, 208mm Depth, RoHS Compliant
- 1488520000 - UL Certified LED Light, 208mm Depth, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

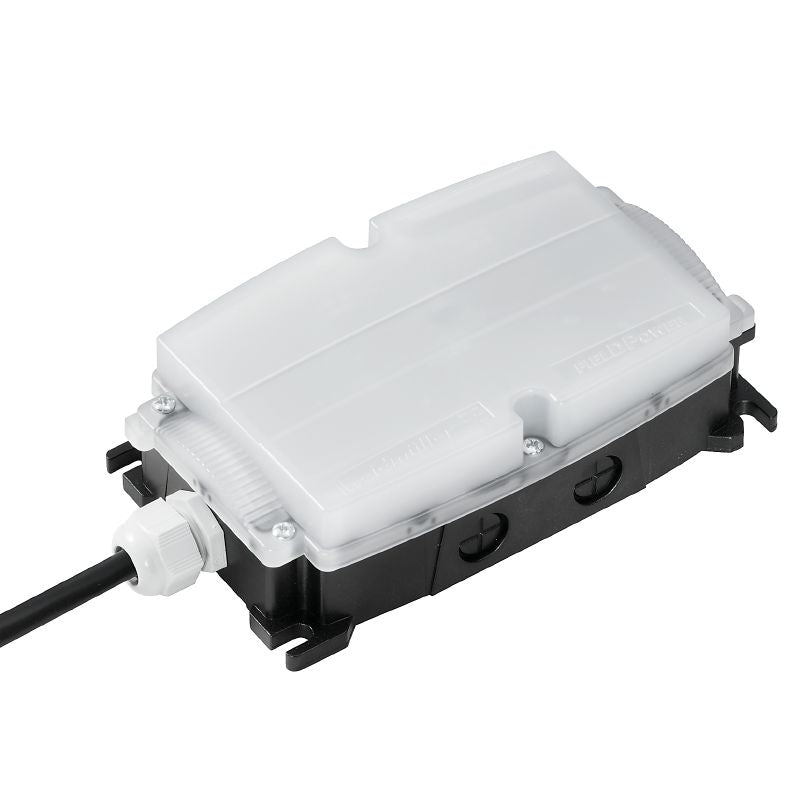

Introducing the FP MONO LED DC SA, a reliable component that meets RoHS standards, showcasing a commitment to environmental responsibility This UL-certified product, with certification number E345151, measures 208 mm deep, 55 mm high, and 104 mm wide, making it compact and easy to integrate into various setups Weighing in at 602 grams, it's lightweight yet sturdy Designed for extreme conditions, it operates within a temperature range of -40 °C to 55 °C, while also being able to withstand storage temperatures of up to 85 °C.
Additionally, it tolerates humidity levels of 92% at 25 °C, making it a robust choice for any application.
Features and Benefits:
•Cool White light at 6000K.

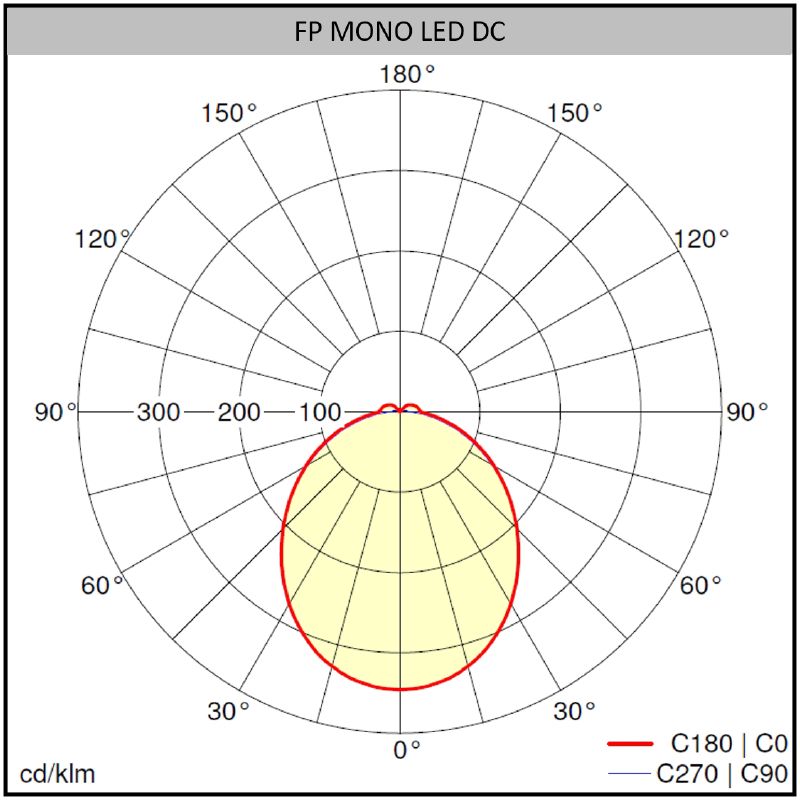

•Light current of 393 lm and a luminosity of 6000 cd.
•LED has a lifespan exceeding 50,000 hours.
•Protection class II and IP54 rating.
•Short-circuit protection included.

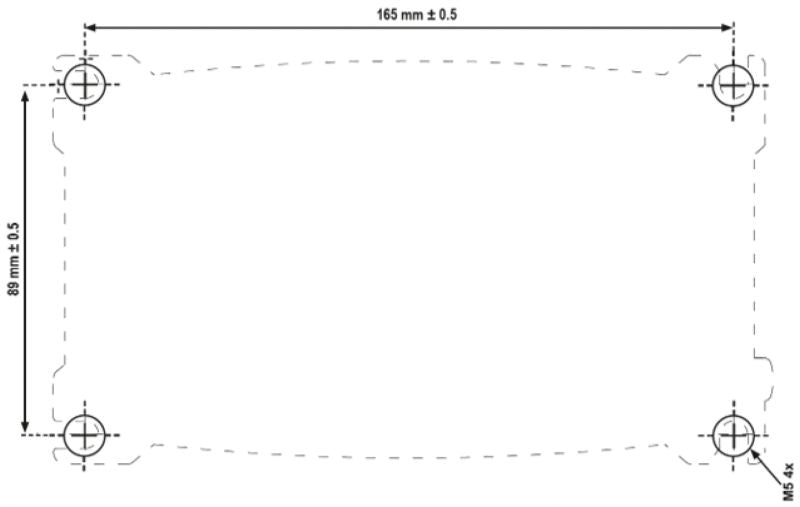

•Screw mounting type for installation.
•Open cable end with a length of 2 m.
•Halogen-free PVC cable.
Specifications:
| Depth | 208 mm |
| Height | 55 mm |
| Width | 104 mm |
| Length | 208 mm |
| Operating temperature | -40 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
| Nominal voltage | 24 V |
| Nominal current | 0.2 A |
| Power rating | 5 W |
| Insulation voltage | <500 V (housing/PE) |
| Connector cross-section, max. | 2.5 mm² |
| Connector cross-section, min. | 0.5 mm² |
| Efficiency class | F |
| Surge voltage category | II |
| Type of connection | Open cable end/length 2 m |
| Amplitude of acceleration | 5 m/s² (@ 9-200 Hz) |
| Amplitude of deflection | 1.5 mm (2-9 Hz) |
| Pollution severity | 2 |
| LED operating life | > 50,000 h |
| Peak acceleration, type L | 70 m/s² |
| Shock resistance | Class 3M3 portable |
| Vibration resistance | Class 3M3 sinusoidal, stationary |
| UL 94 flammability rating | V-0 |
