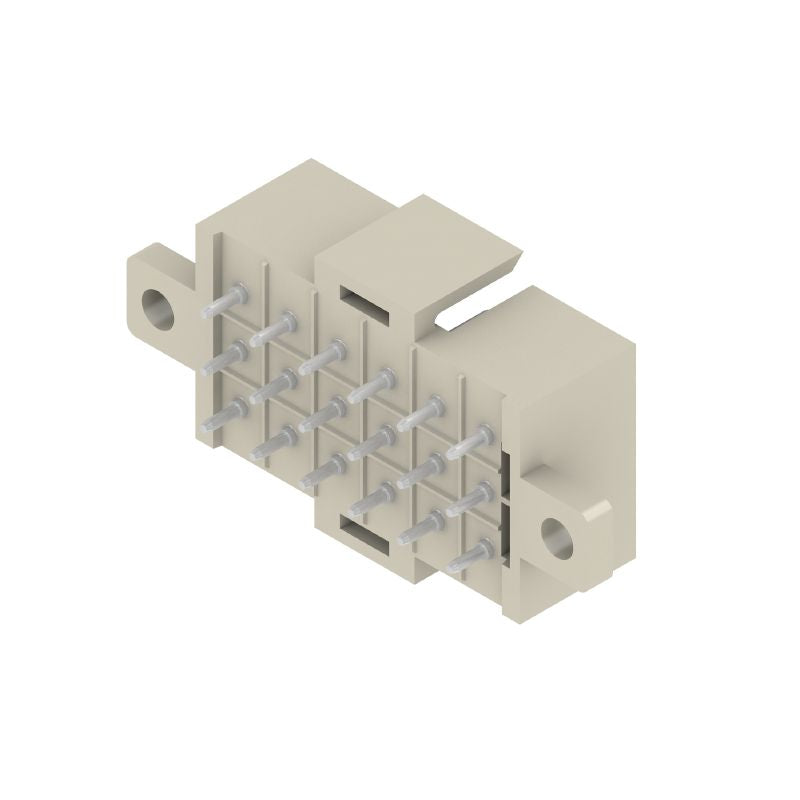

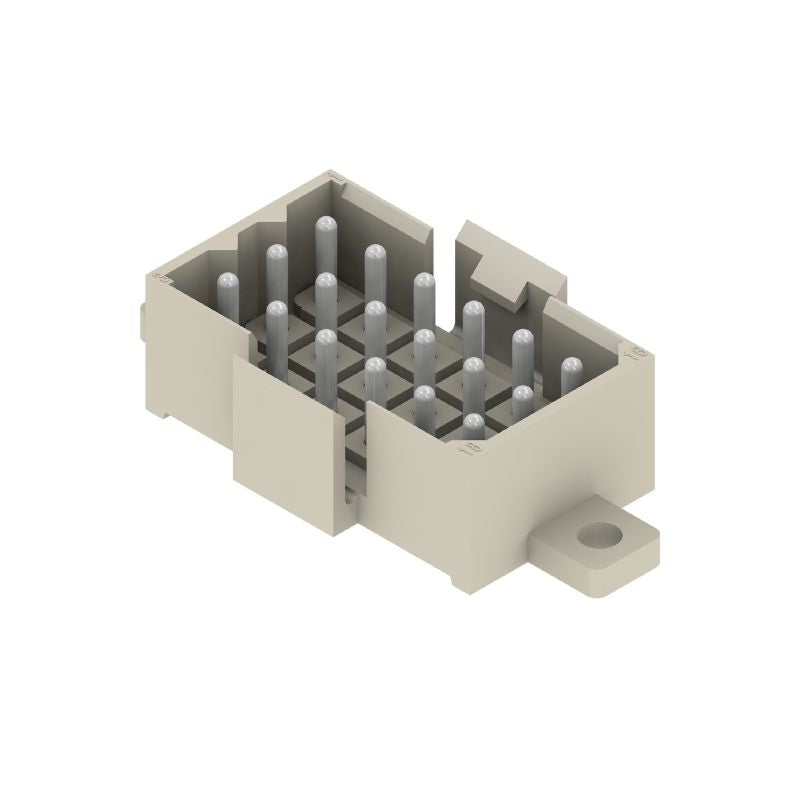

1444900000 - 5mm Pitch 18-Pole PCB Connector with Flange, Pebble Grey (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSV1,6 LSF18 GR 3,2 SN, a robust male header PCB plug-in connector tailored for through-hole soldering (THT) This component features an impressive 500 mm pitch and supports 18 poles set at a 180° angle With solder pins measuring 32 mm in length, this connector is not only functional but also comes in an attractive pebble grey hue Rated by IEC at 500 V, it efficiently handles a maximum current of 14 A.

Each order includes 25 connectors, neatly packed for convenient use.

Features and Benefits:

•Compliant with RoHS regulations.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for specific applications.

•High temperature resistance from -50 °C to +100 °C.

Specifications:
