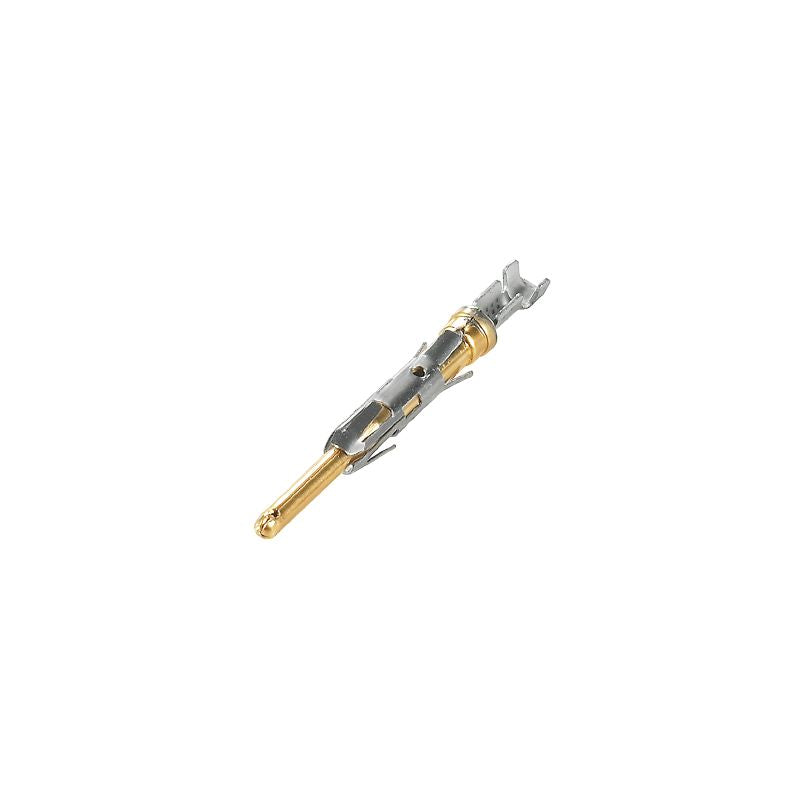

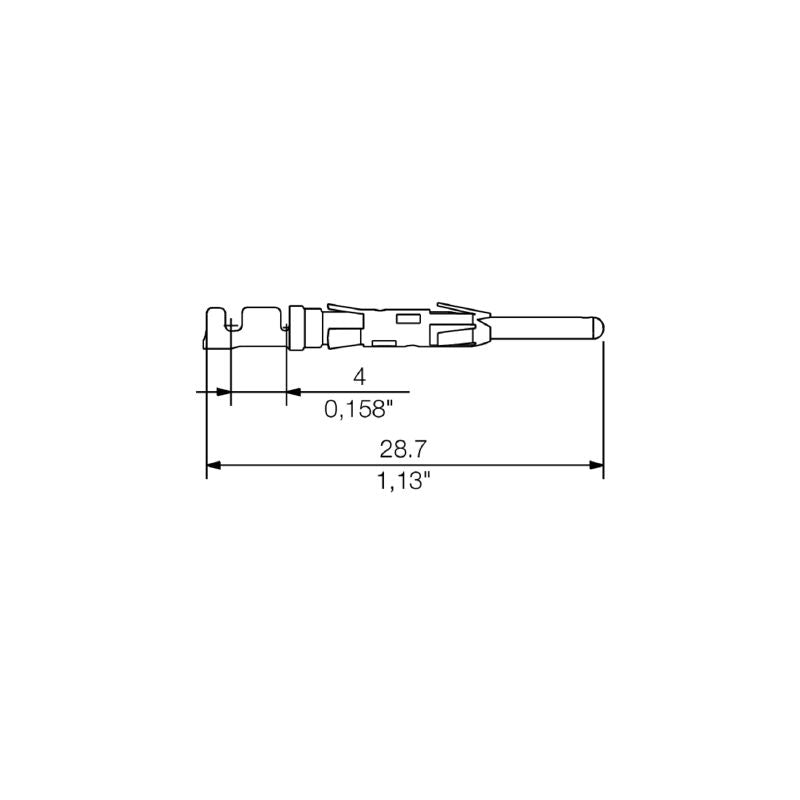

1428700000 - Gold-Plated PCB Connector, 2.5mm² Crimp Contact (Pack of 250)

1428700000 - Gold-Plated PCB Connector, 2.5mm² Crimp Contact (Pack of 250)

SKU: SKU: 1428700000   Download PDF

Select a Variant:
  • 1428700000 - Gold-Plated PCB Connector, 2.5mm² Crimp Contact (Pack of 250)
Qty:
Regular price Now $271.97   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $271.97 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience reliable connectivity with this PCB plug-in connector, featuring crimp contacts and individually crafted long pins made from gold-plated material It accommodates a maximum clamping range of 25 mm² and is identifiable by the order number 1428700000 This product adheres to RoHS standards, ensuring compliance without any exceptions Packaged conveniently in boxes, each connector weighs just 0.

432 grams Furthermore, you can be assured of its environmental integrity, as it contains no substances of very high concern (SVHC) above 01 weight percent.

Features and Benefits:

    •Crimp connection method.

    •180° conductor outlet direction.

    •Single pole design.

    •Gold-plated contact surface.

    •Volume resistance of 4.80 mΩ.

Specifications:

 Storage temperature min. -40 °C
 Storage temperature max. 70 °C
 Operating temperature min. -50 °C
 Operating temperature max. 100 °C
 Temperature range installation min. -25 °C
 Temperature range installation max. 100 °C
 Clamping range min. 15 mm²
 Clamping range max. 2.5 mm²
 Wire connection cross section AWG min. AWG 14
 Wire connection cross section AWG max. AWG 12
 Stranded min. H07V-R 1.5 mm²
 Stranded max. H07V-R 2.5 mm²
 Flexible min. H05(07) V-K 1.5 mm²
 Flexible max. H05(07) V-K 2.5 mm²
 Outer diameter of insulation min. 2.8 mm
 Outer diameter of insulation max. 3.5 mm
 Rated data acc. to IEC tested acc. to standard IEC 60664-1, IEC 61984
 Rated impulse voltage for surge voltage class/pollution degree III/2
