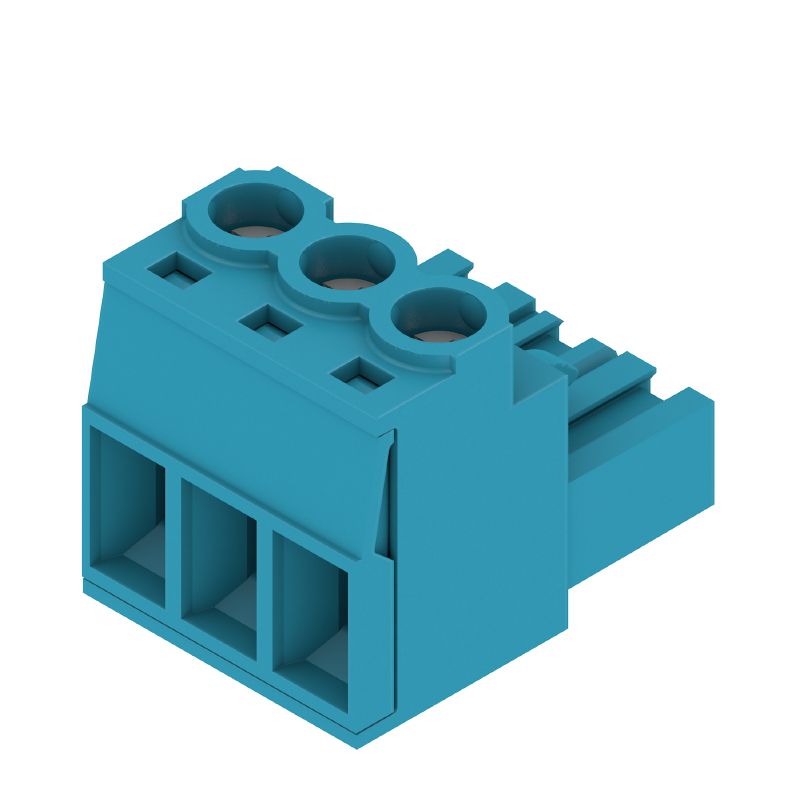

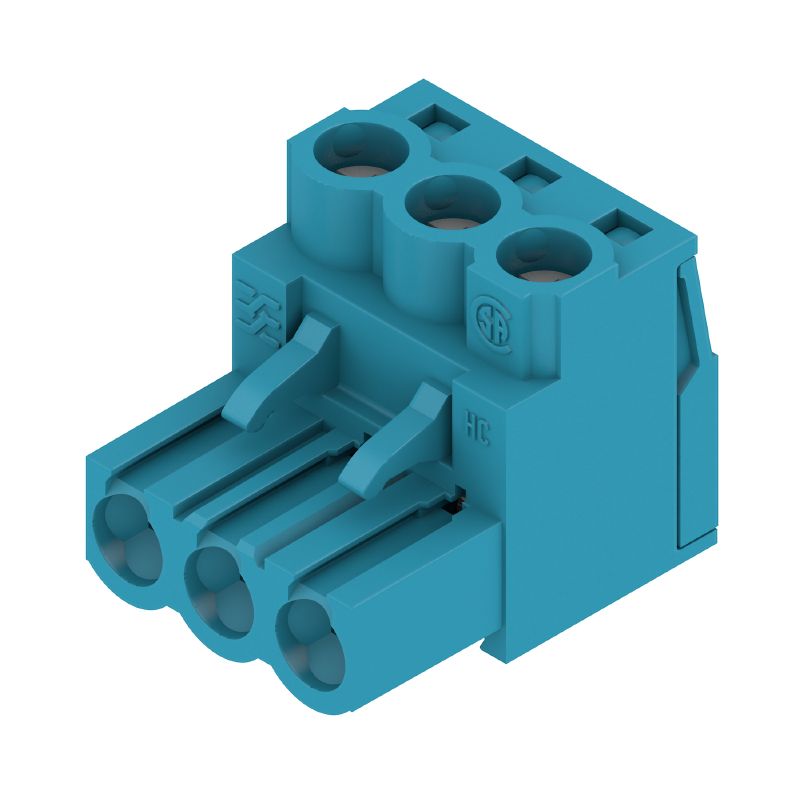

1427190000 - 5.08mm Female PCB Connector with 3 Poles and Clamping Yoke (Pack of 120)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

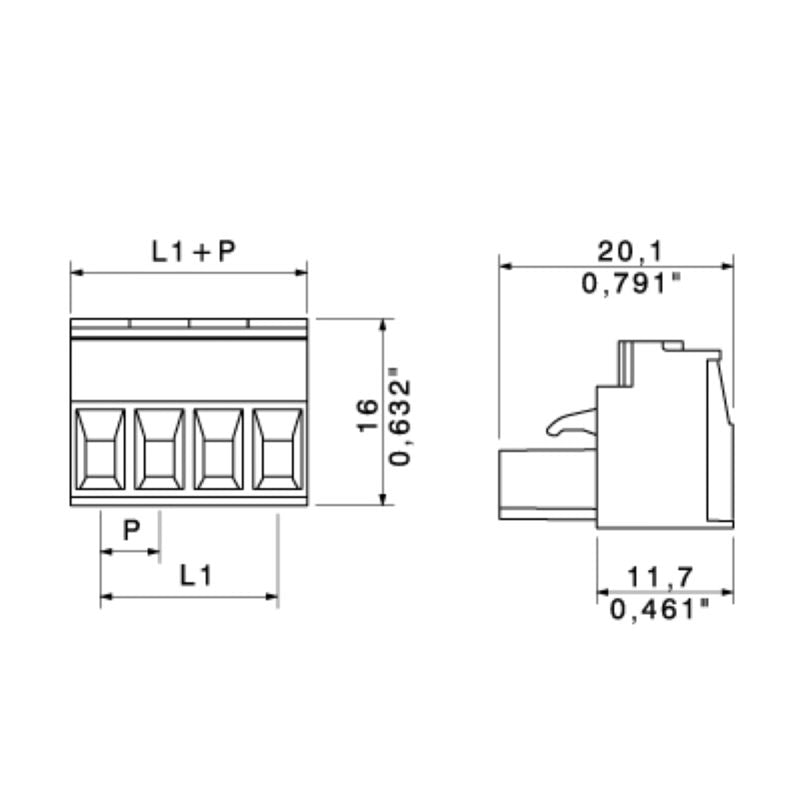

Introducing a reliable PCB plug-in connector designed as a female component, featuring a pitch measurement of 508 mm with three poles for secure connections This connector utilizes a clamping yoke that accommodates a maximum wire size of 4 mm² and comes neatly packaged in a box It adheres to both RoHS and UL standards, including essential certifications such as E60693, ensuring quality and safety Its compact dimensions are 20.

1 mm in depth, 16 mm in height, and 1524 mm in width, with a lightweight of just 425 g, making it an efficient choice for your electronic needs.

Features and Benefits:

•Field connection.

•Touch-safe protection according to DIN VDE.

•Can be coded.

•Safe from finger touch.

•Durability.

•Passed various type tests including visual examination and durability of markings.

Specifications:
