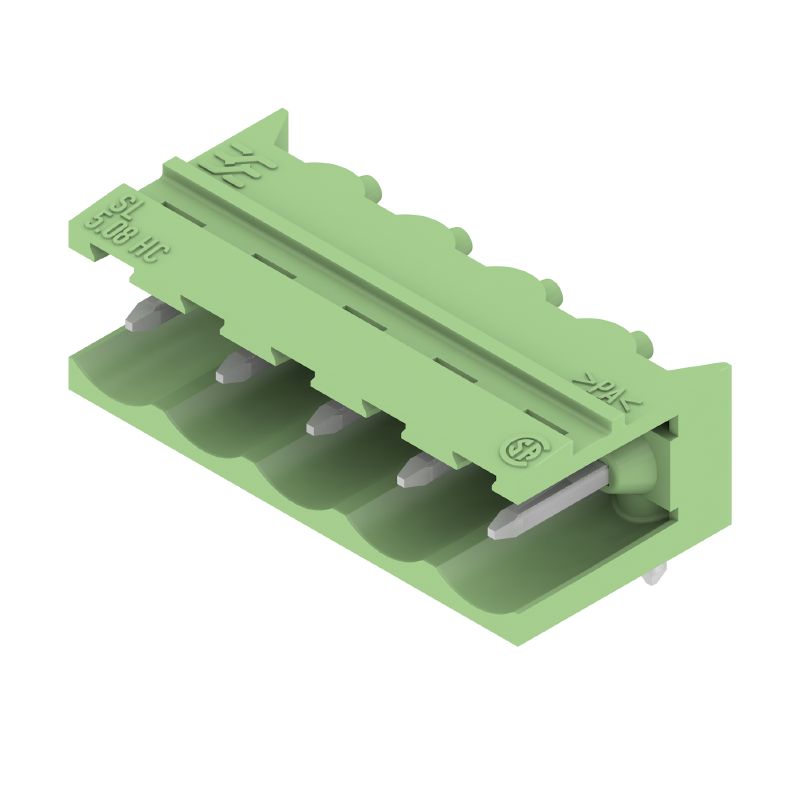

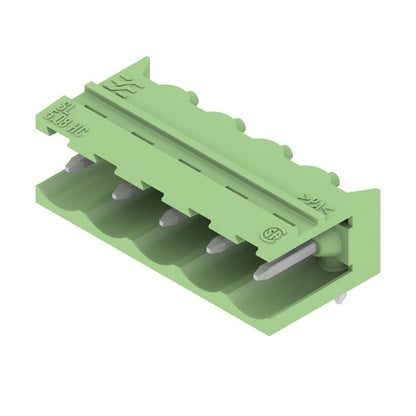

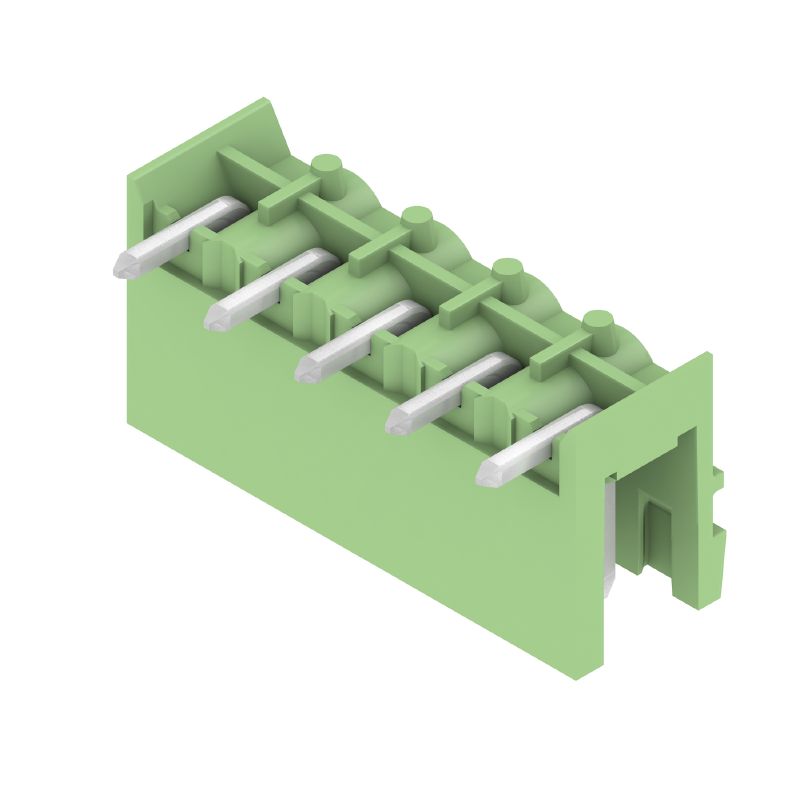

1401650000 - 5-Pole 5.08mm THT Connector, 90° Angle, Pale Green (Pack of 50)

1401650000 - 5-Pole 5.08mm THT Connector, 90° Angle, Pale Green (Pack of 50)

SKU: SKU: 1401650000   Download PDF

Select a Variant:
  • 1401650000 - 5-Pole 5.08mm THT Connector, 90° Angle, Pale Green (Pack of 50)
Qty:
Regular price Now $55.69   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $55.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience seamless connectivity with this 508 mm PCB plug-in connector, tailored for male header setups Constructed with an open side design, this component offers Through-Hole Technology (THT) solder connections It features five poles arranged at a 90-degree angle for efficient installation, with solder pins measuring 32 mm, coated in a durable tin finish Packaged in a pastel green color, this connector is not only compliant with RoHS standards but also carries UL certification (E60693), ensuring it meets industry quality requirements.

Features and Benefits:

    •Certified RoHS compliant.

    •Rated for IEC standards of 400 V / 24 A and UL standards of 300 V / 18.5 A.

    •Touch-safe protection compliant with DIN VDE standards.

    •Can be coded for secure connections.

    •Plugging cycles rated for up to 25.

    •Features finger-safe unplugged and back-of-hand-safe plugged protection.

Specifications:

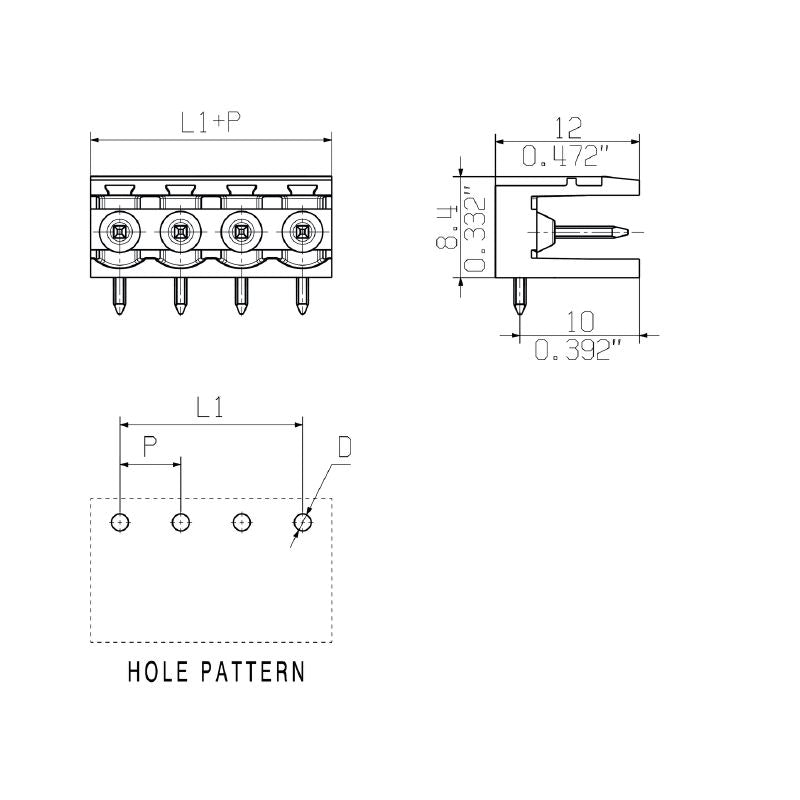

 Depth 12 mm
 Height 11.63 mm
 Width 25.2 mm
 Solder pin dimensions 1.2 mm
 Number of poles 5
 Pitch 5.08 mm
 Protection degree IP20
 Operating temperature min. -50 °C
 Operating temperature max. 100 °C
 Storage temperature min. -40 °C
 Storage temperature max. 70 °C
 Volume resistance ≤5 mΩ
 Net weight 1.82 g
 Rated current (Use group B) 18.5 A
 Rated voltage (Use group B) 300 V
 Solder eyelet hole diameter 1.4 mm
