1353250000 - 5.08mm PCB Connector, 3 Pole, 180° Push-In Design (Pack of 42)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

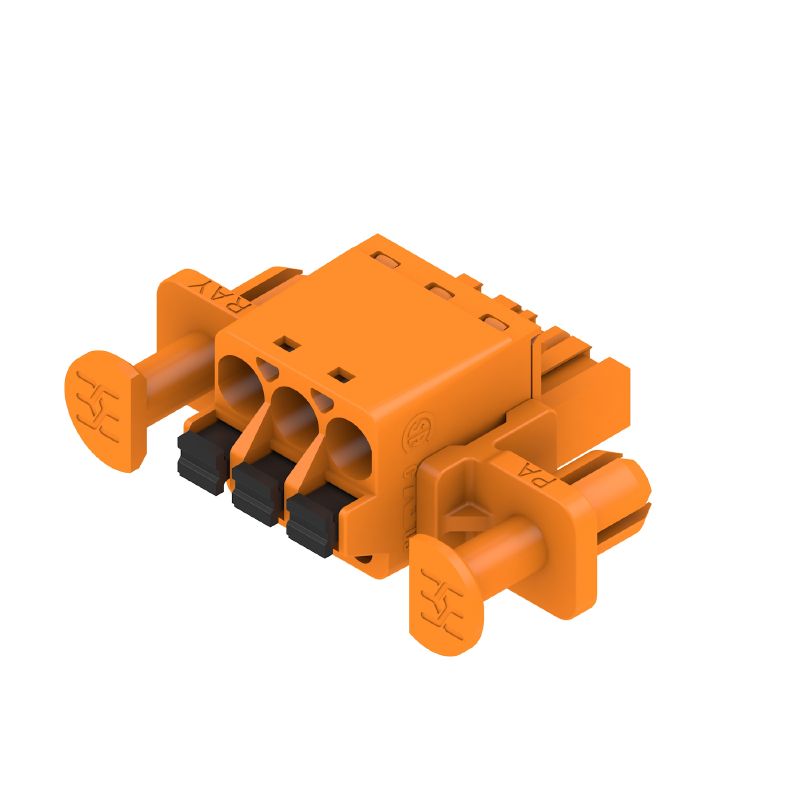

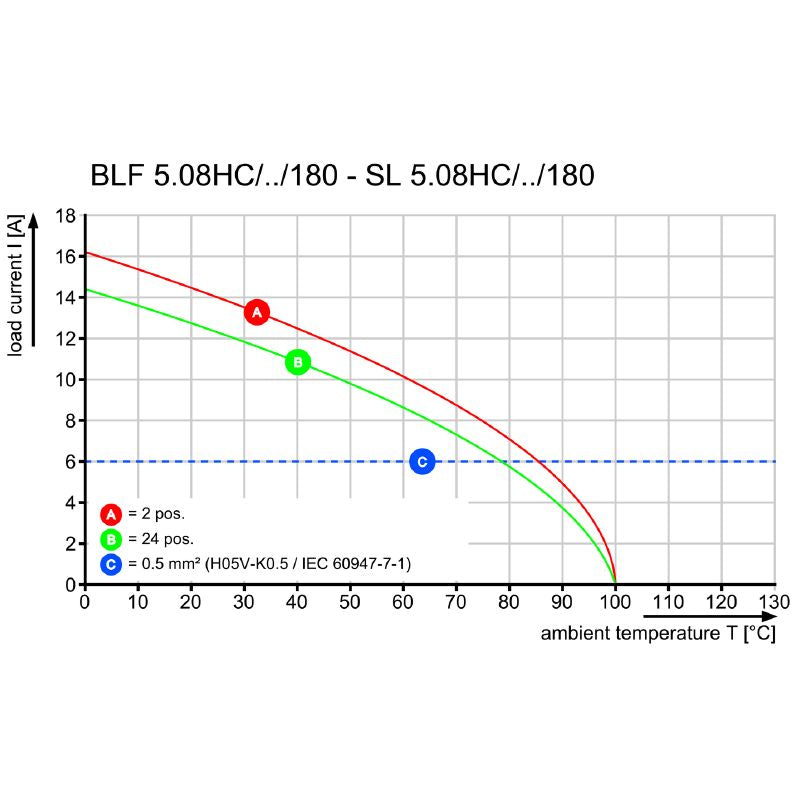

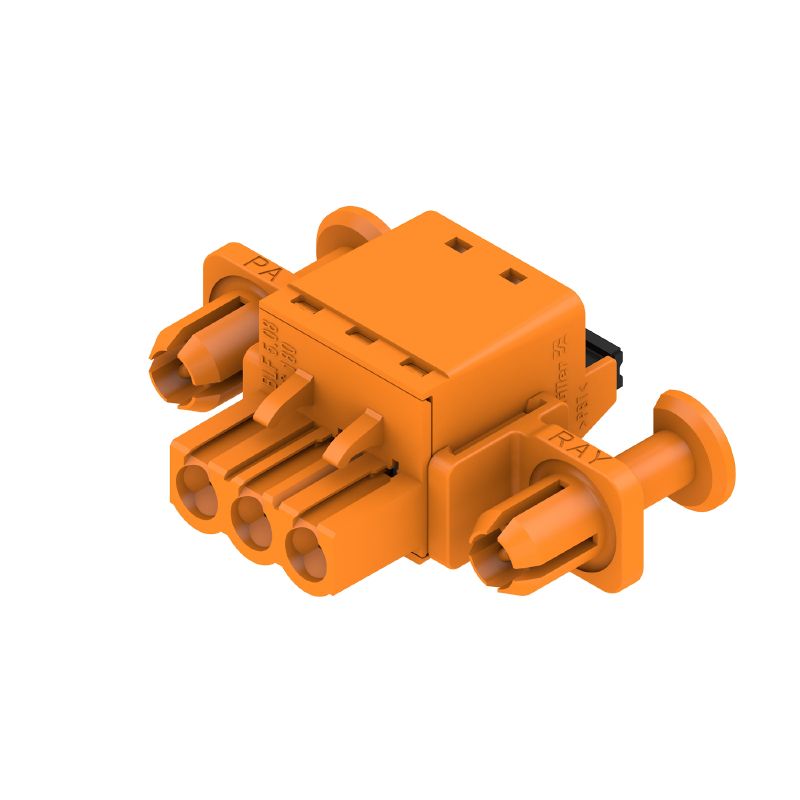

Introducing the BLF 508HC/03/180DF SN OR BX, an efficient female plug PCB connector that boasts a 508 mm pitch and features three poles This connector is designed with a 180-degree push-in mechanism along with an actuator, facilitating a maximum clamping range of 331 mm² Complying with IEC standards, it supports up to 400 V and 24 A, while also adhering to UL standards with a rating of 300 V and 18.

5 A Packaged conveniently in a box, this connector meets RoHS directives, making it an excellent choice for field connections and various wiring applications.

Features and Benefits:

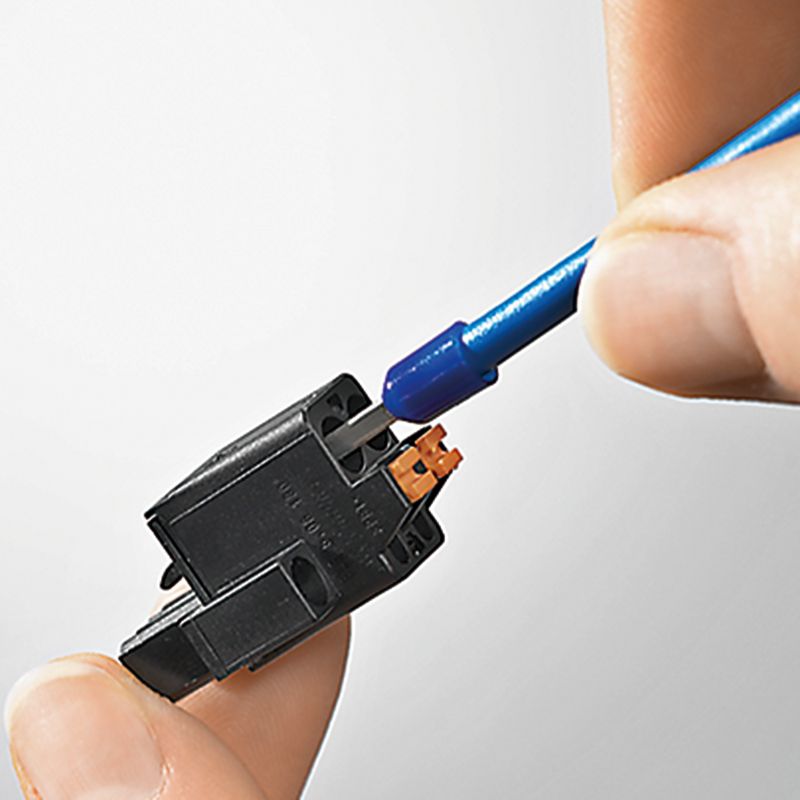

•PUSH IN with actuator wire connection method.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for configuration.

•Compliant with RoHS and REACH regulations.

Specifications:
