1336400000 - 5.08mm 2-Pole Male Connector with PUSH IN Connection (Pack of 90)

1336400000 - 5.08mm 2-Pole Male Connector with PUSH IN Connection (Pack of 90)

SKU: SKU: 1336400000   Download PDF

Select a Variant:
  • 1336400000 - 5.08mm 2-Pole Male Connector with PUSH IN Connection (Pack of 90)
Qty:
Regular price Now $177.47   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $177.47 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

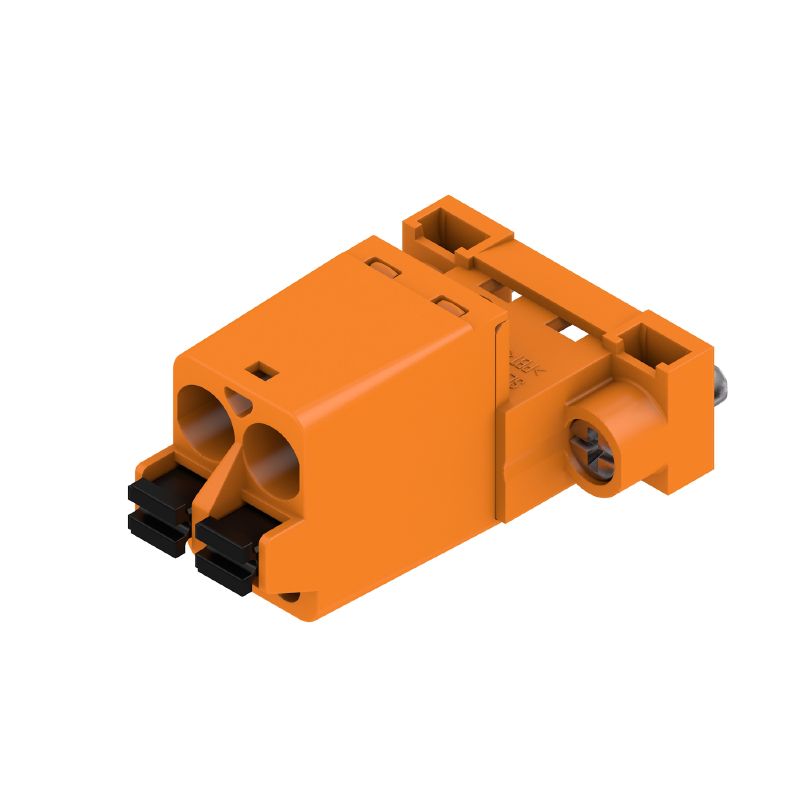

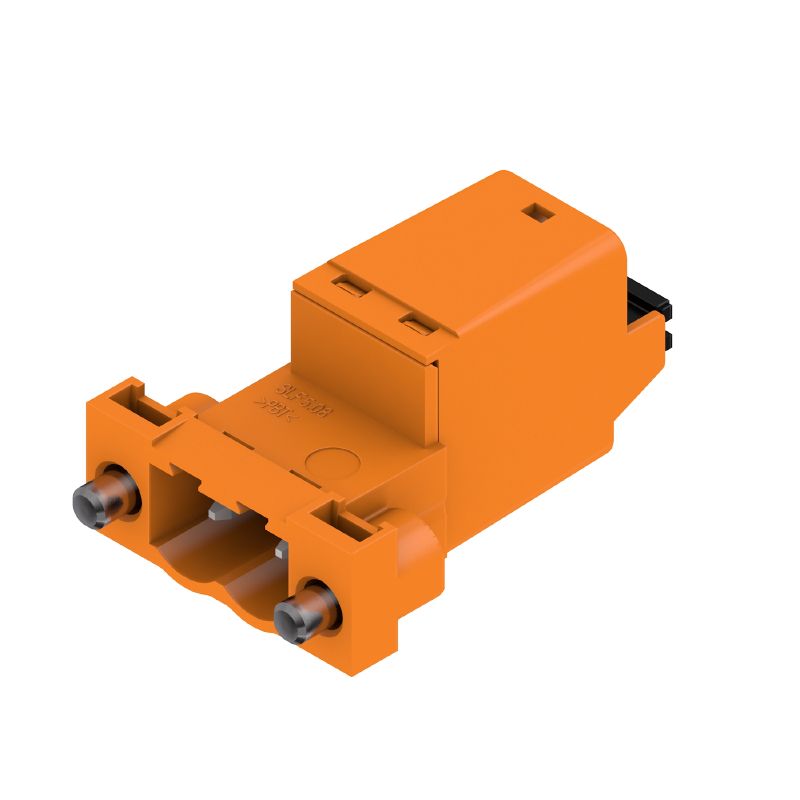

Introducing a robust PCB plug-in male connector designed for reliability and ease of use Featuring a compact pin pitch of 508 mm, this connector comes with 2 poles arranged in a 180° orientation Its innovative PUSH IN connection method, complete with an actuator, provides a secure fit and accommodates a maximum clamping range of 331 mm² This product complies with RoHS standards and is UL certified, backed by certificate number E60693, making it a dependable choice for your electronic projects.

Features and Benefits:

    •IP20 protection degree when plugged and IP10 when unplugged.

    •Can be coded for specific applications.

    •Durable with a maximum of 25 plugging cycles.

    •Tightening torque between 0.2 Nm and 0.25 Nm.

    •Field connection in various electrical applications.

Specifications:

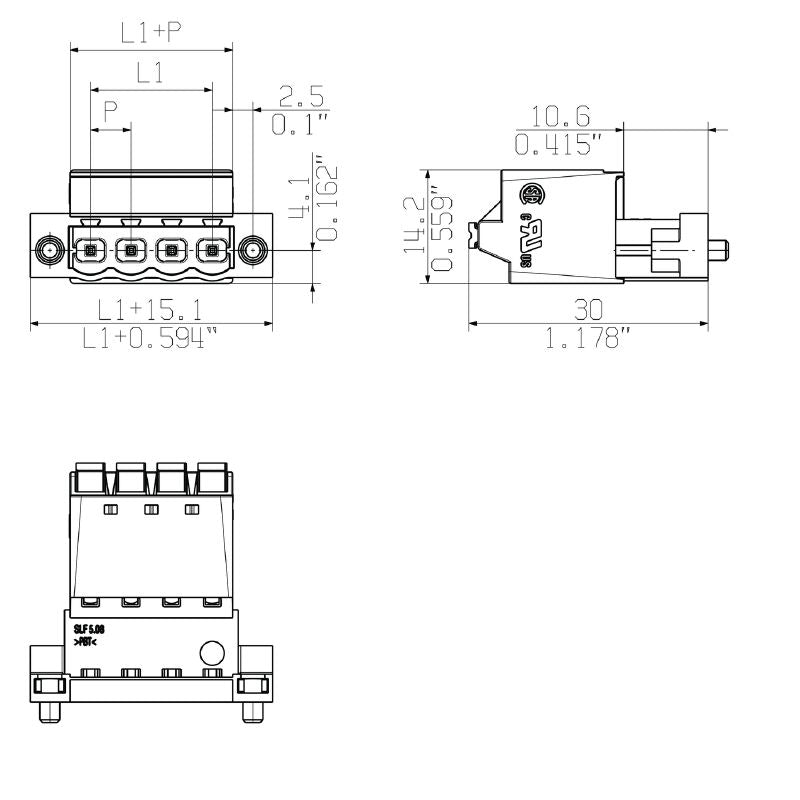

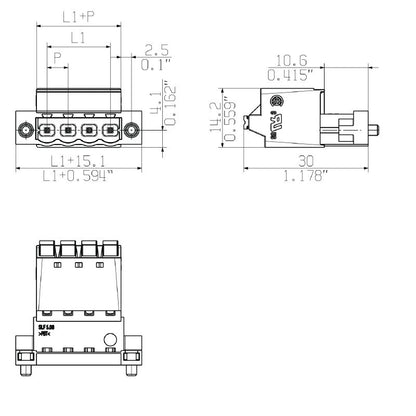

 Depth 30 mm
 Height 14.2 mm
 Rated voltage (IEC) 400 V

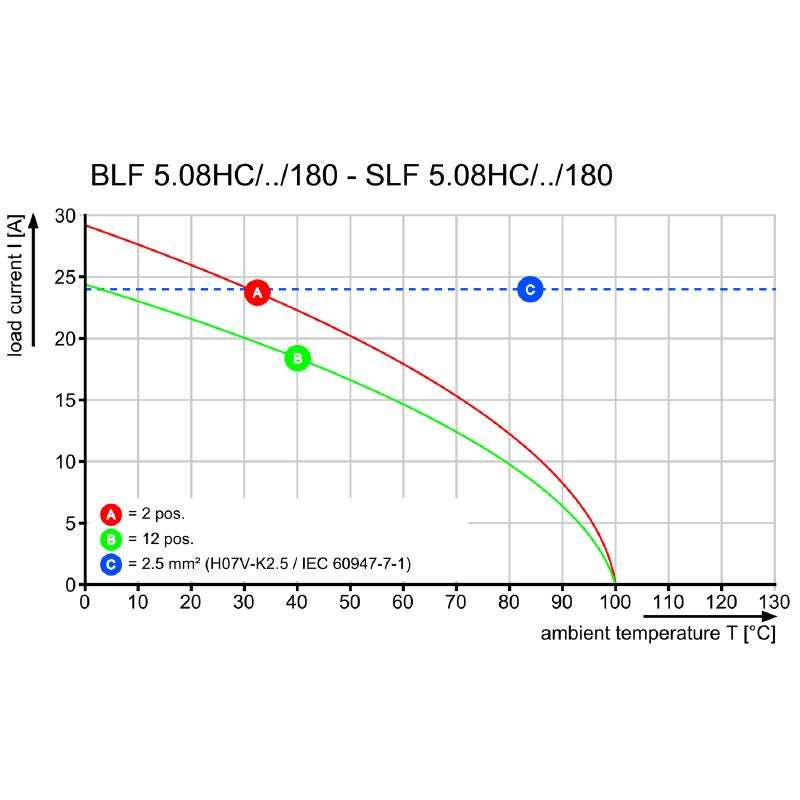

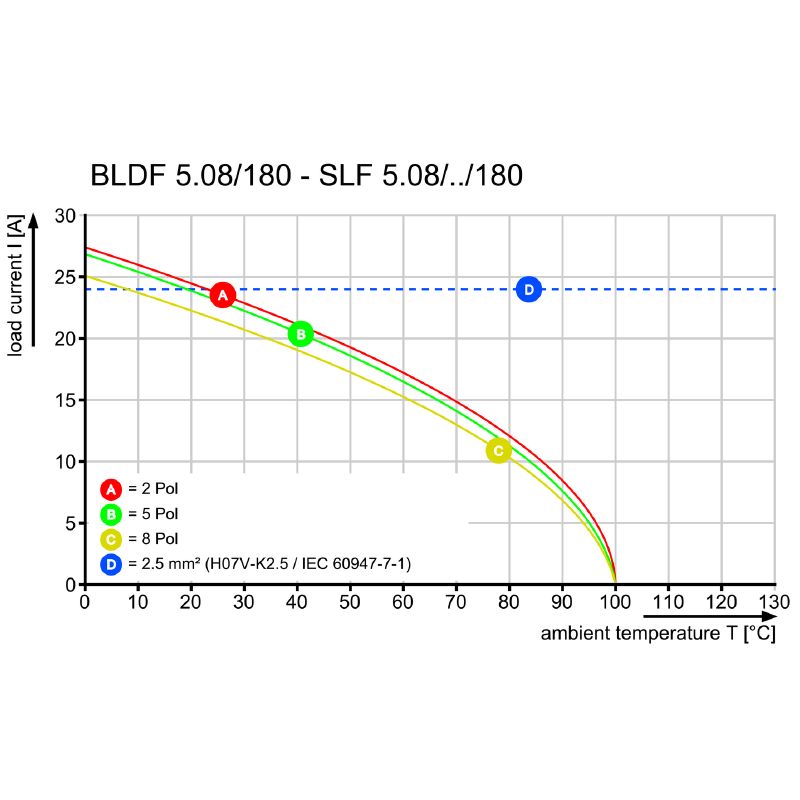

 Rated current (IEC) 25.9 A
 Clamping range (min) 0.13 mm²
 Clamping range (max) 3.31 mm²
 Wire connection cross section AWG (min) AWG 26
 Wire connection cross section AWG (max) AWG 12
 Stripping length 10 mm
 Insulating material PBT
 UL voltage rating 300 V
 Volume resistance ≤5 mΩ
 Storage temperature (min) -40 °C
 Storage temperature (max) 70 °C
 Operating temperature (min) -50 °C
 Operating temperature (max) 100 °C
