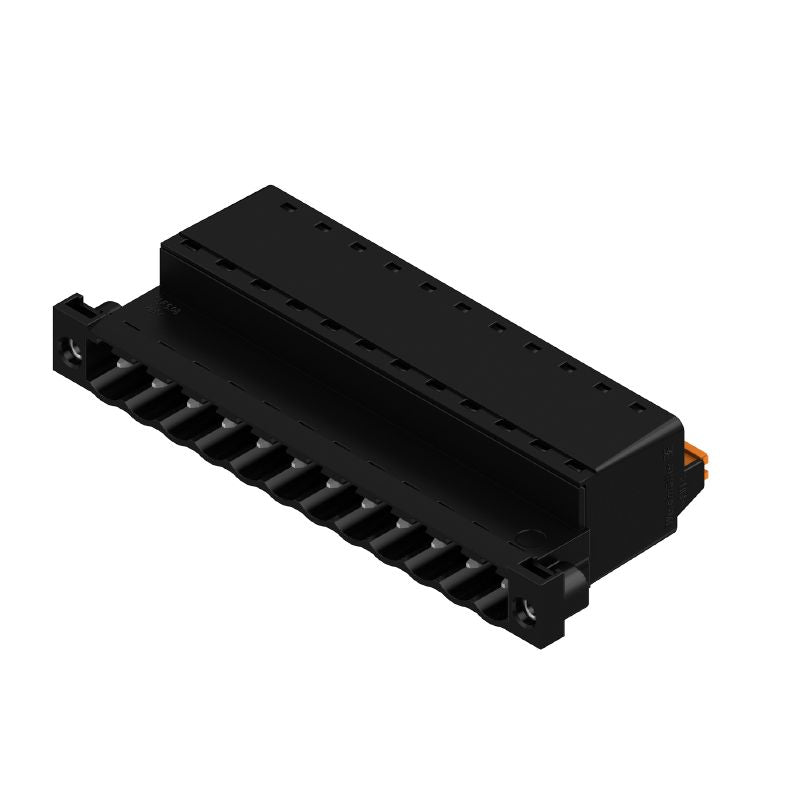

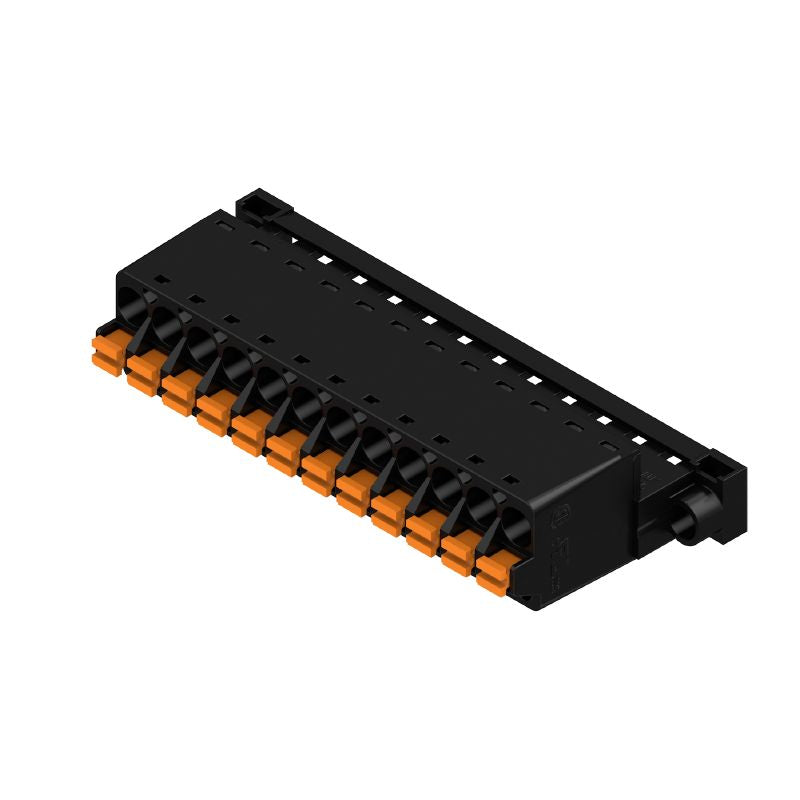

1336280000 - 5.08mm 12-Pole PCB Plug Connector with PUSH IN Mechanism (Pack of 24)

1336280000 - 5.08mm 12-Pole PCB Plug Connector with PUSH IN Mechanism (Pack of 24)

SKU: SKU: 1336280000   Download PDF

Select a Variant:
  • 1336280000 - 5.08mm 12-Pole PCB Plug Connector with PUSH IN Mechanism (Pack of 24)
Qty:
Regular price Now $213.20   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $213.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your connectivity with this PCB plug-in connector, featuring a male plug designed with a 508 mm pitch It boasts 12 poles and operates at a 180-degree angle for versatile use The connector utilizes a PUSH IN mechanism with an actuator, capable of managing a maximum clamping range of 331 mm² This product comes securely packaged in a box and meets RoHS compliance for safety.

Features and Benefits:

    •Field connection type.

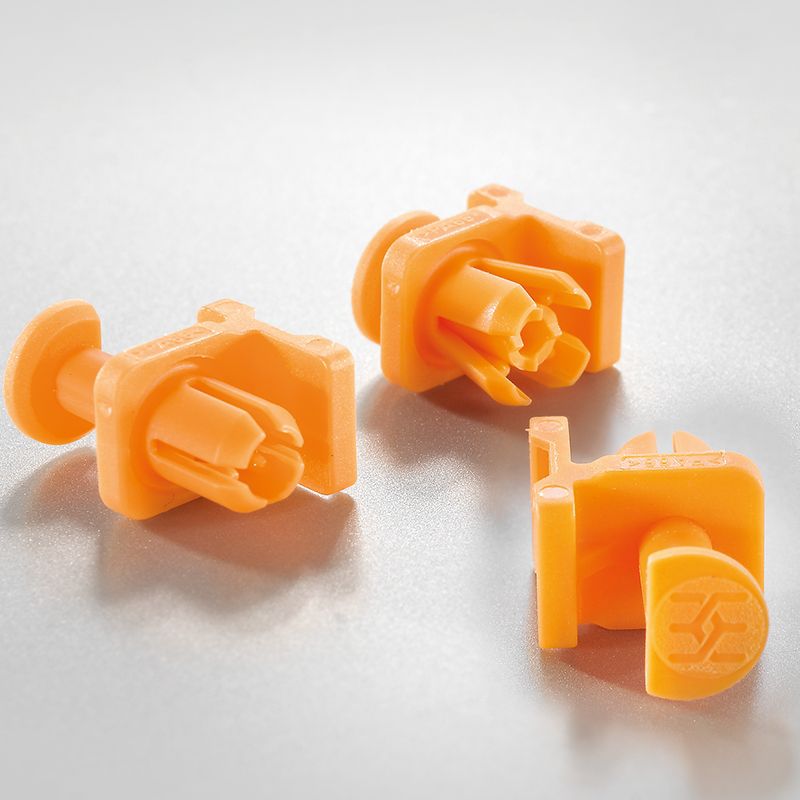

    •Can be coded for functionality.

    •Touch-safe protection according to DIN VDE 0470.

    •IP20 protection degree when plugged, IP10 when unplugged.

    •Durability of markings has passed.

    •Visual examination has passed.

Specifications:

 Approval: RoHS Compliant without exemption
 Rated Voltage (IEC): 400 V / 300 V / 250 V

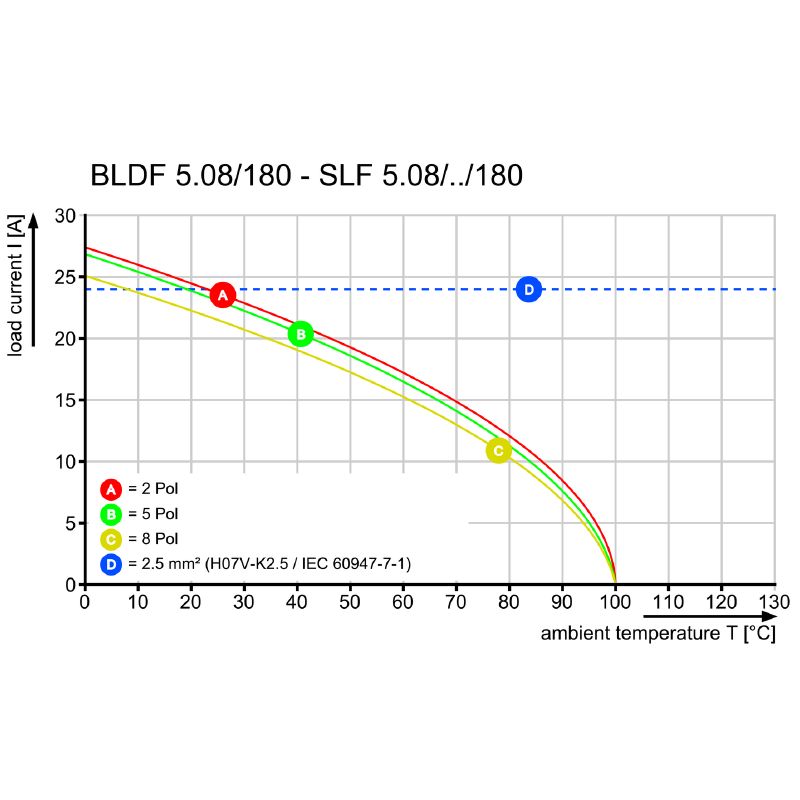

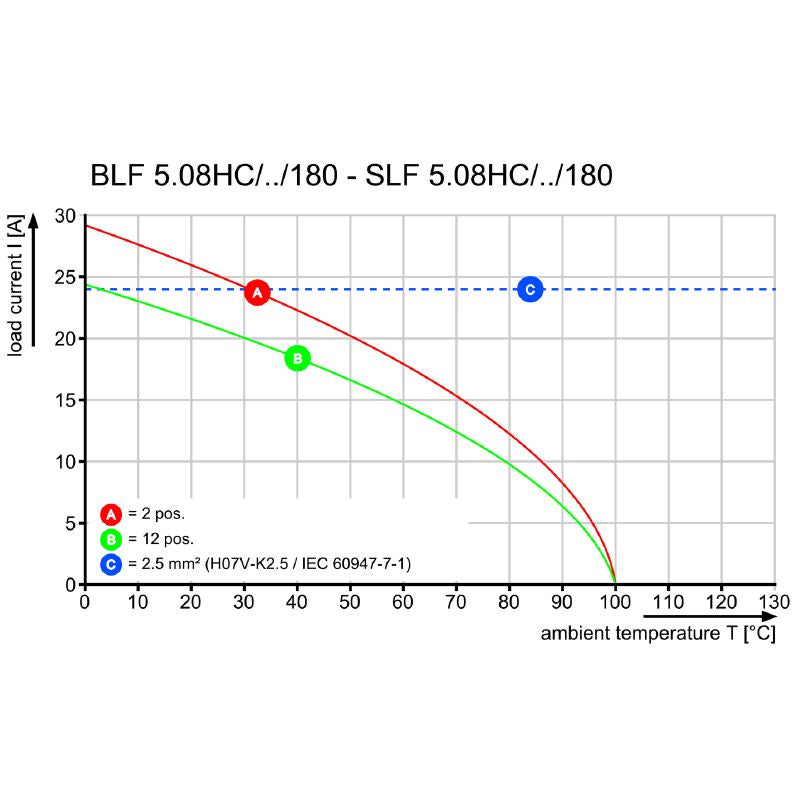

 Rated Current (IEC): 25.9 A / 14 A / 10 A
 Conductor Outlet Direction: 180°
 Pitch: 5.08 mm
 Number of Poles: 12
 Operating Temperature (Min): -50 °C
 Operating Temperature (Max): 100 °C
 Material: PBT Insulation
 Weight: 22.024 g
 Depth: 30 mm
 Height: 14.2 mm
