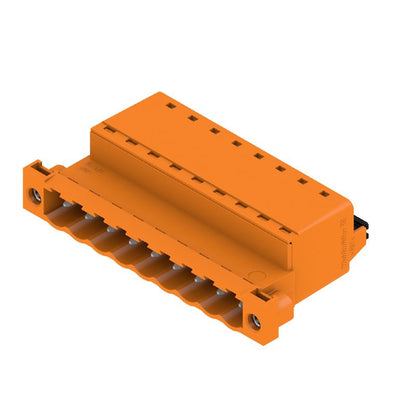

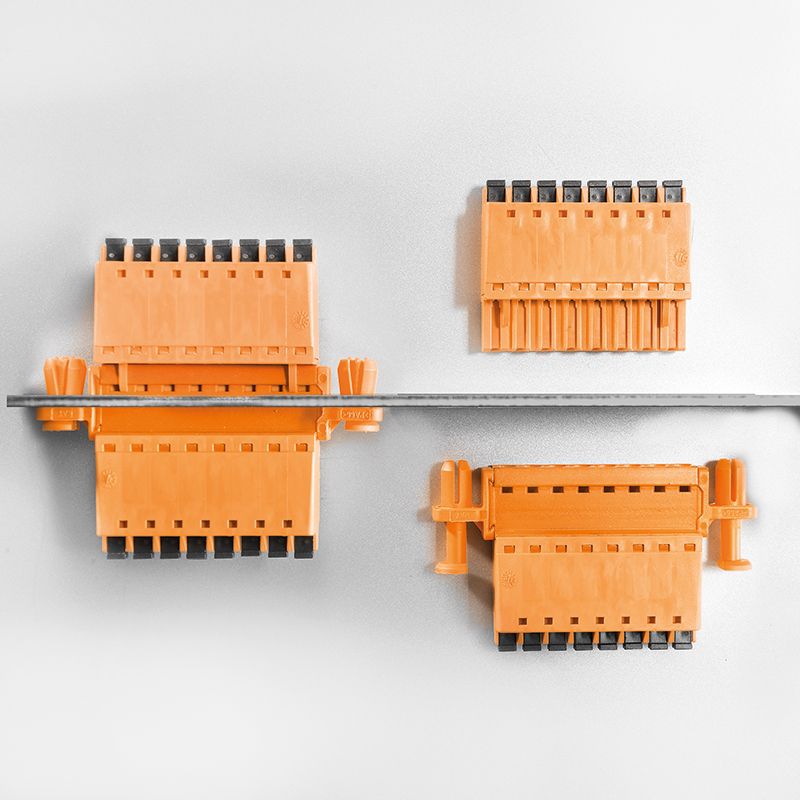

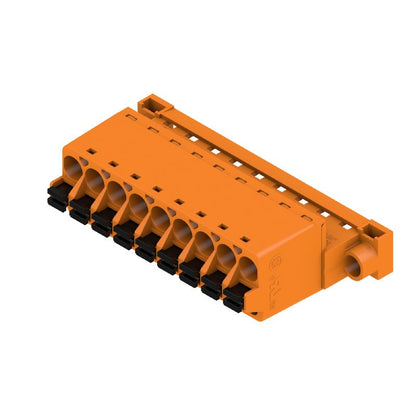

1335740000 - 9-Pole 180° PCB Male Connector with Push-In Actuator (Pack of 30)

1335740000 - 9-Pole 180° PCB Male Connector with Push-In Actuator (Pack of 30)

SKU: SKU: 1335740000   Download PDF

Select a Variant:
  • 1335740000 - 9-Pole 180° PCB Male Connector with Push-In Actuator (Pack of 30)
Qty:
Regular price Now $202.63   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $202.63 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this versatile PCB plug-in connector, featuring a male plug with 9 poles set at a 180° angle Designed for ease of use, it employs a PUSH IN connection method equipped with an actuator This connector supports a maximum wire size of 331 mm² and comes conveniently packaged in a box for your needs.

Features and Benefits:

    •RoHS Compliant.

    •Field connection type.

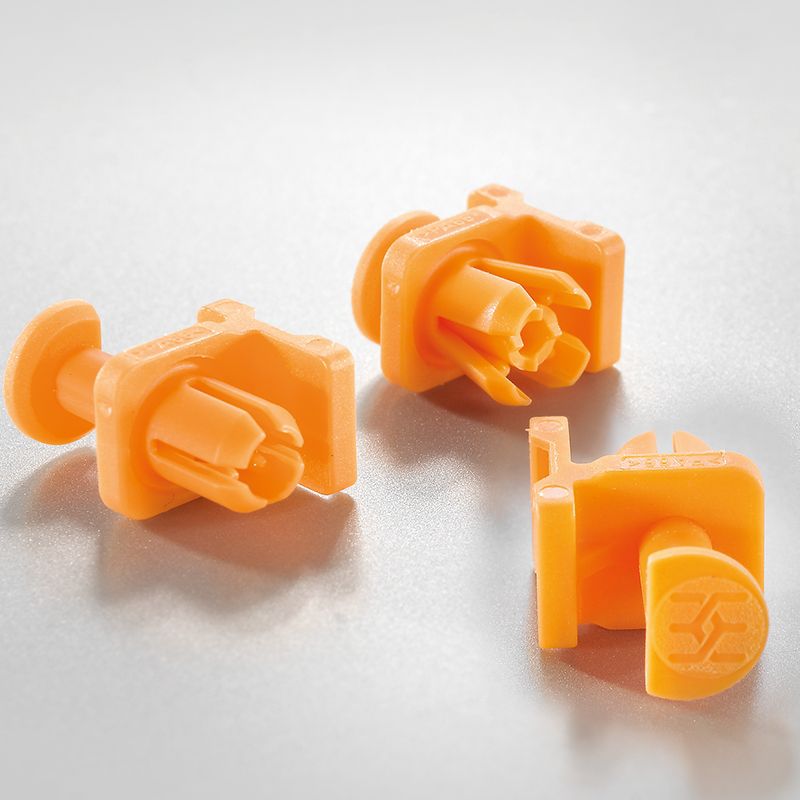

    •Can be coded.

    •Touch-safe protection according to DIN VDE 0470.

    •Plugging cycles rated to 25.

    •Insulating material made from PBT.

    •Available in orange color.

Specifications:

 Rated voltage (IEC) 400 V / 250 V / 320 V / 300 V

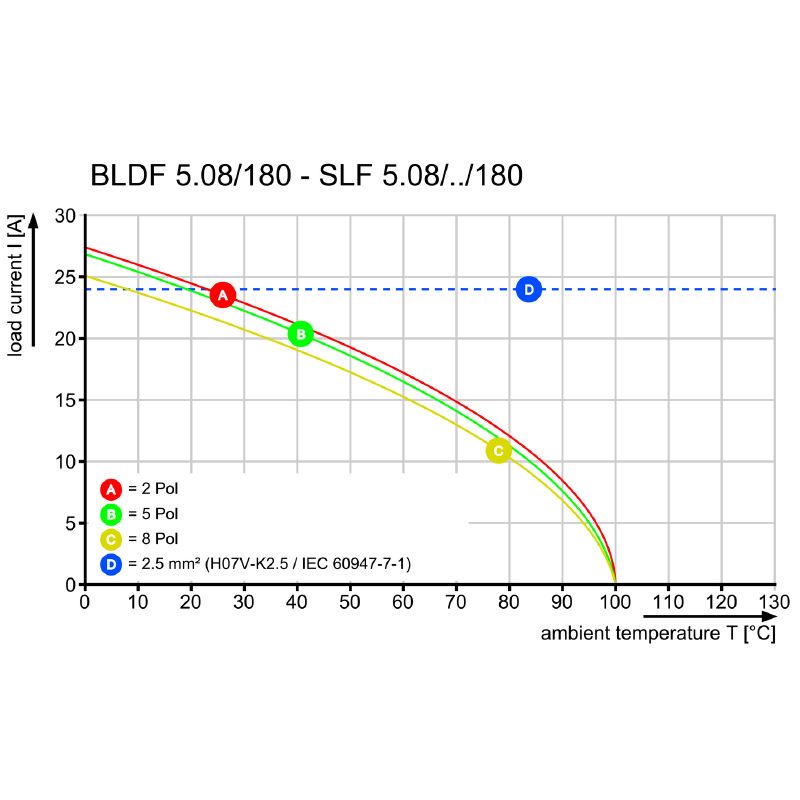

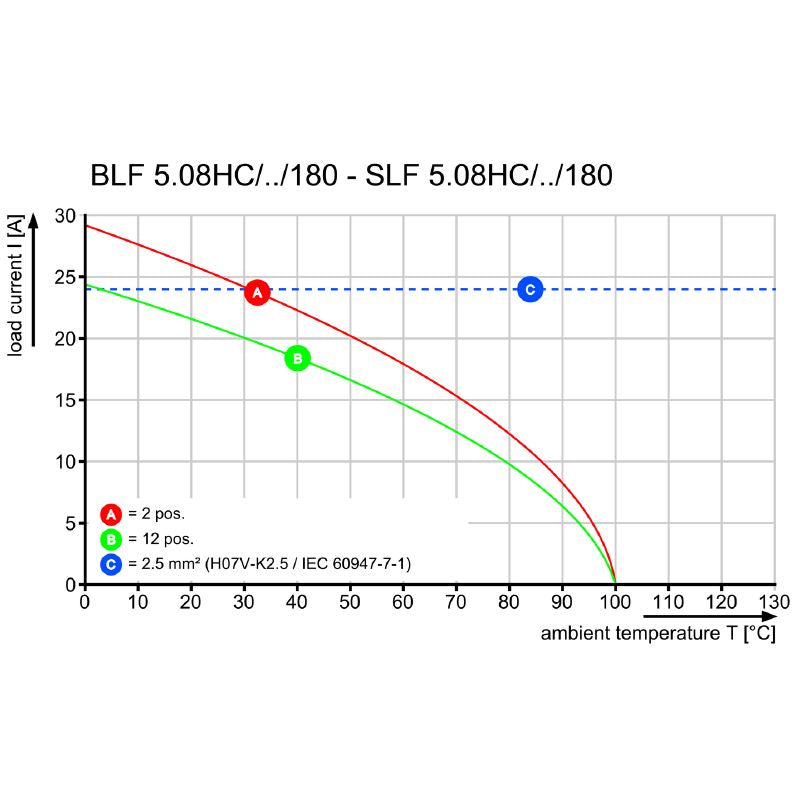

 Rated current (IEC) 25.9 A / 14 A

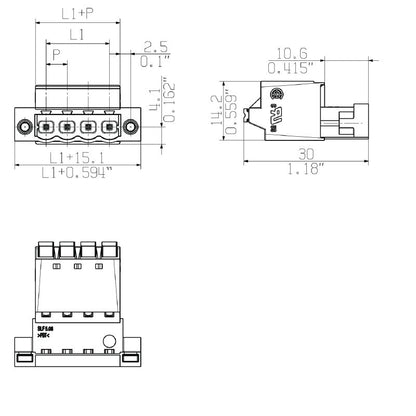

 Pitch 5.08 mm
 Number of poles 9
 Operating temperature min -50 °C
 Operating temperature max 100 °C
 Protection degree IP20
 Volume resistance ≤5 mΩ
 Clamping range min 0.13 mm²
 Clamping range max 3.31 mm²
 Storage temperature min -40 °C
 Storage temperature max 70 °C
 Material Copper alloy contacts, tinned
