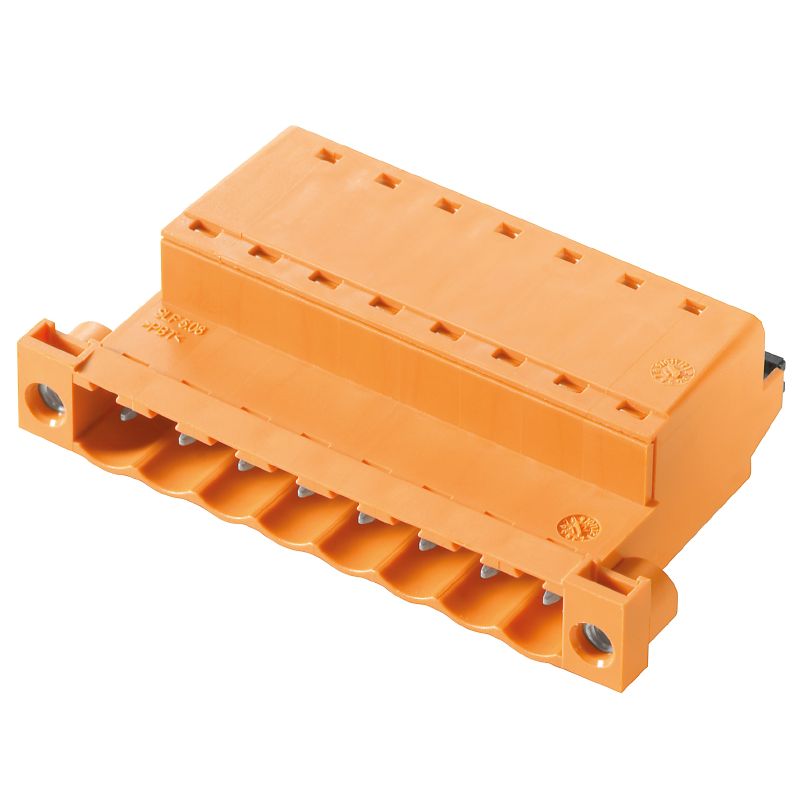

1335720000 - 5.08mm Male PCB Connector, 8 Poles, 180° Angle (Pack of 36)

1335720000 - 5.08mm Male PCB Connector, 8 Poles, 180° Angle (Pack of 36)

SKU: SKU: 1335720000   Download PDF

Select a Variant:
  • 1335720000 - 5.08mm Male PCB Connector, 8 Poles, 180° Angle (Pack of 36)
Qty:
Regular price Now $217.61   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $217.61 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our reliable 508 mm pitch PCB plug-in connector, featuring an 8-pole male plug with a 180° connection angle This connector utilizes a PUSH IN method for easy handling, equipped with a practical actuator It accommodates wires with a maximum clamping capacity of 331 mm², ensuring a secure fit Each connector is conveniently packaged in a sturdy box for easy storage and transportation Perfect for various electronic applications!.

Features and Benefits:

    •RoHS compliant.

    •Can be coded for specific applications.

    •Utilizes a PUSH IN connection method for ease of use.

    •Touch-safe protection according to DIN VDE 0470 standards.

Specifications:

 Rated Voltage (IEC) 400 V / 300 V
 Rated Current (IEC) 25.9 A / 14 A
 Clamping Range 0.13 mm² - 3.31 mm²
 Pitch 5.08 mm
 Conductor outlets 180°
 Number of poles 8
 IP Protection Degree IP20 plugged / IP10 unplugged
 Storage Temperature -40 °C to 70 °C
 Operating Temperature -50 °C to 100 °C
 Material PBT insulating material, copper alloy contacts
 UL Certificate No. E60693
 Contact Surface tinned
 Plugging Cycles 25
