1335330000 - 5.08mm PCB Connector, 180 Pieces, 400V, PUSH IN (Pack of 180)

1335330000 - 5.08mm PCB Connector, 180 Pieces, 400V, PUSH IN (Pack of 180)

SKU: SKU: 1335330000   Download PDF

Select a Variant:
  • 1335330000 - 5.08mm PCB Connector, 180 Pieces, 400V, PUSH IN (Pack of 180)
Qty:
Regular price Now $255.39   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $255.39 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

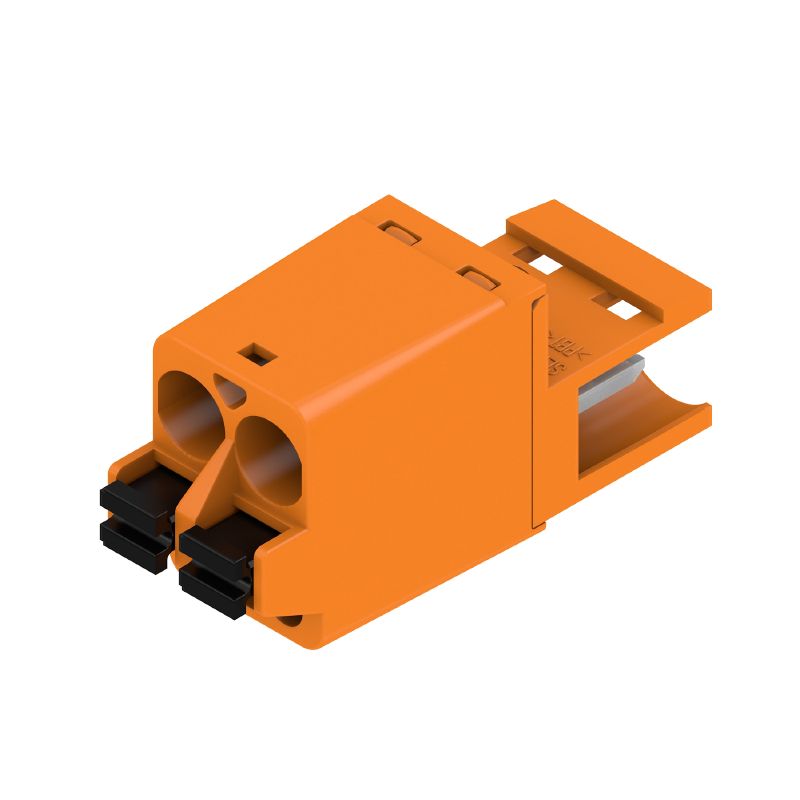

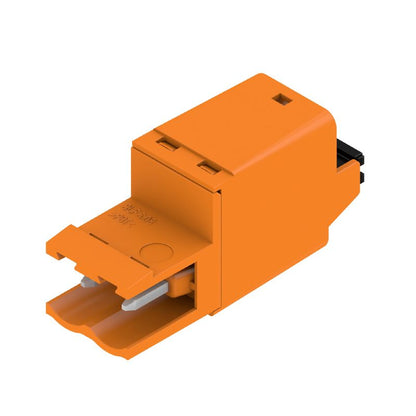

Introducing the SLF 508/02/180 SN OR BX, a premium male PCB plug-in connector built for performance With a 508 mm pitch, this connector is capable of handling up to 400 V and 259 A It employs a PUSH IN connection method, making it easy to work with, and supports conductors ranging from 013 to 331 mm² Each box contains 180 connectors, offering an excellent supply for various applications.

Features and Benefits:

    •Conforms to RoHS.

    •Compliant with minimum standards for environmental safety.

    •Touch-safe protection according to DIN VDE 0470.

    •Can be coded for specific applications.

    •Field connection for various electronic applications.

Specifications:

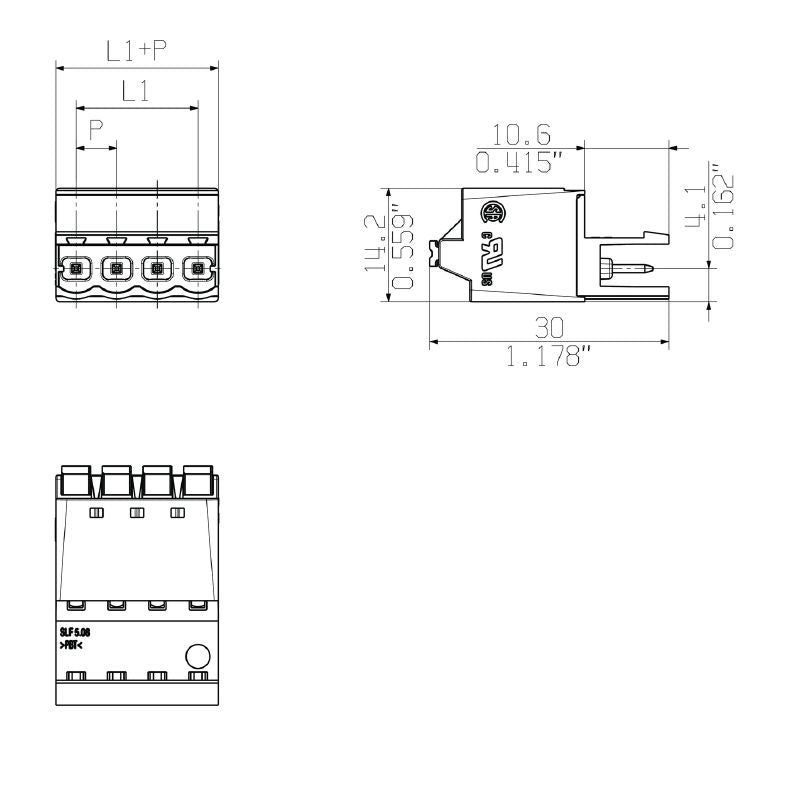

 Depth 30 mm
 Height 14.2 mm
 Diameter 5.08 mm
 Rated voltage 400 V
 Rated current 25.9 A
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Insulating material PBT
 Contact material Copper alloy
 Protection degree IP20
 Stripping length 10 mm
 Plugging cycles 25
