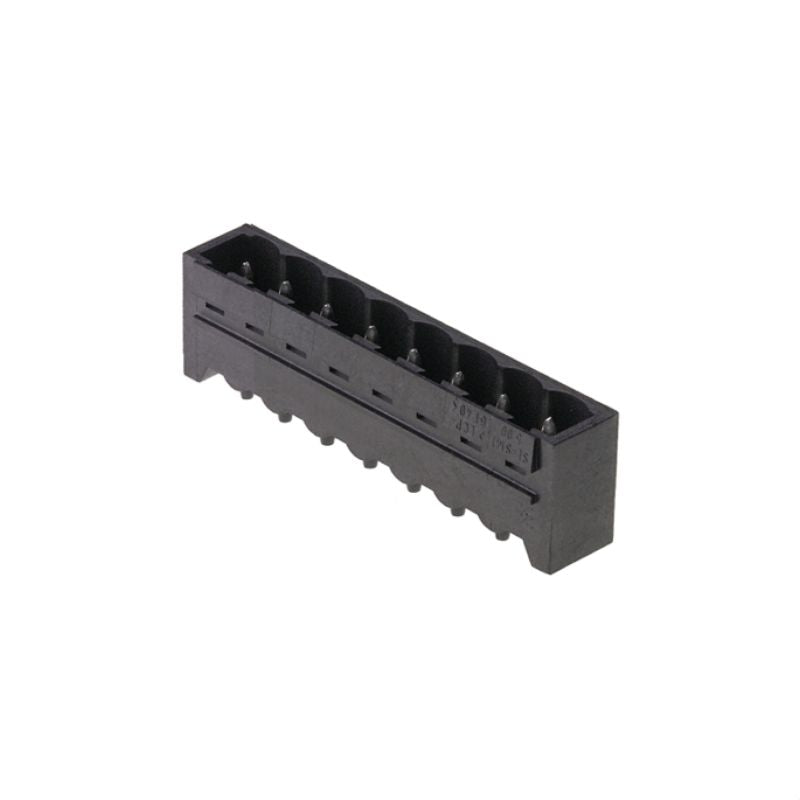

1324630000 - 5.08mm 7-Pole Male PCB Connector, Black Tinned Pins (Pack of 50)

SKU: SKU: 1324630000 Download PDF

Select a Variant:

1324630000 - 5.08mm 7-Pole Male PCB Connector, Black Tinned Pins (Pack of 50)

SET THE QTY:

Now $90.28 Web pricing policy

~~BEFORE $0.00~~ Now $90.28 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the SL-SMT 508HC connector, a reliable male header tailored for PCB plug-in applications With a 508 mm pitch and seven poles positioned at a 180° angle, this connector supports both through-hole technology (THT) and through-hole reflow (THR) soldering methods The pins are 32 mm long, featuring a black-tinned surface for enhanced conductivity Packaged securely in a box, this product is also RoHS compliant, making it an excellent choice for environmentally conscious projects.

Features and Benefits:

•Can be coded for specific applications.

•Touch-safe protection according to DIN VDE standards.

•Can undergo soldering and is designed for efficient PCB mounting.

•General usage in PCB connection.

Specifications:

IEC Voltage Rating	400 V / 27.5 A
UL Voltage Rating	300 V / 18.5 A

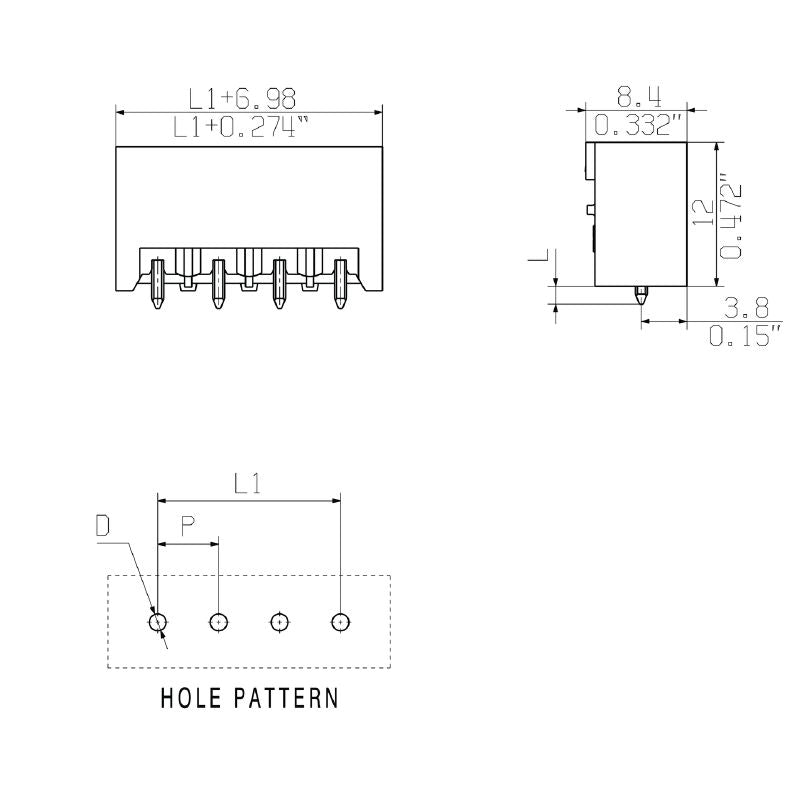

Depth	8.5 mm
Height	15.2 mm
Width	37.46 mm
Pitch	5.08 mm
Number of Poles	7
Number of Solder Pins per Pole	1
Solder Pin Length	3.2 mm
Rated Current	{'Min at 20°C': '27.5 A', 'Max at 20°C': '19 A', 'Min at 40°C': '24 A', 'Max at 40°C': '16.5 A'}
Storage Temperature	{'Min': '-40 °C', 'Max': '70 °C'}
Operating Temperature	{'Min': '-50 °C', 'Max': '100 °C'}
Protection Degree	IP20
Moisture Level	1
Net Weight	2.922 g
Material	{'Insulating Material': 'LCP GF', 'Contact Material': 'Cu-alloy'}
