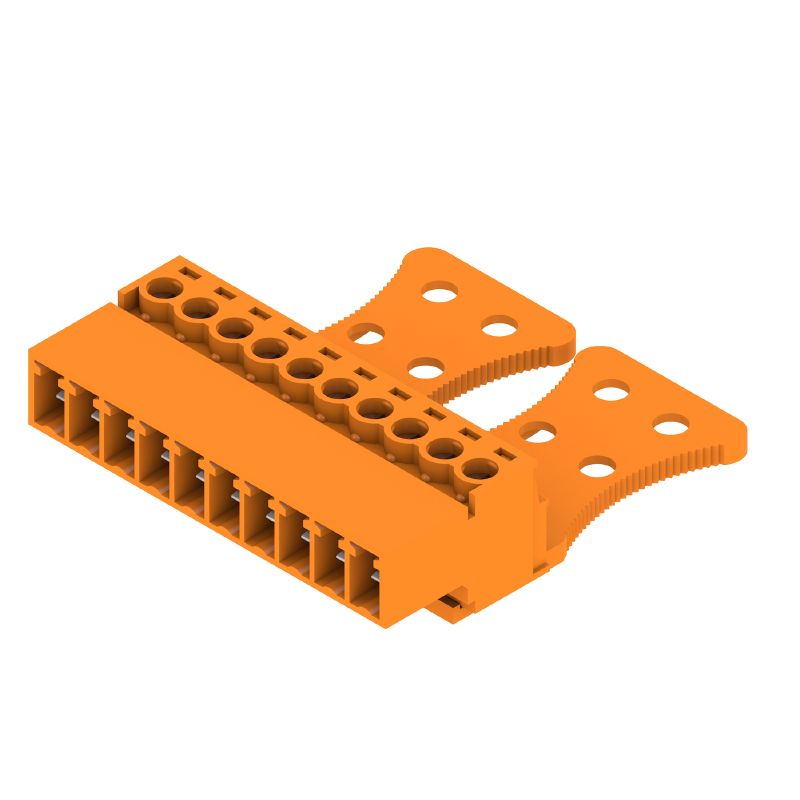

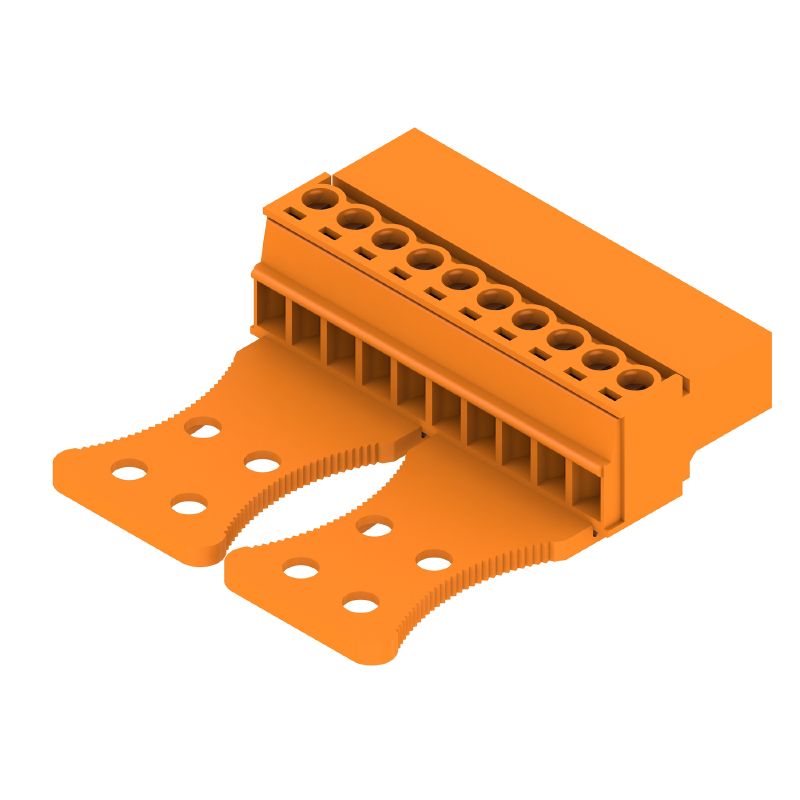

1237080000 - 3.81mm Male PCB Connector with 10 Poles at 180° Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this efficient male PCB plug-in connector, designed for optimal performance with a 381 mm pitch and 10 poles arranged at a 180° angle It features a robust clamping yoke connection, accommodating a maximum wire size of 15 mm², and is conveniently packaged in a box Compliant with IEC standards, it supports a voltage rating of 320 V and a current capacity of 175 A Under UL specifications, it is rated for 300 V and 10 A, making it a reliable choice for your electronic connections.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Finger-safe design when plugged in, back-of-hand-safe when unplugged.

•Can be coded for secure connections.

•Durability tested with passed evaluations.

•Ideal for field connection and various electrical assemblies.

Specifications:
