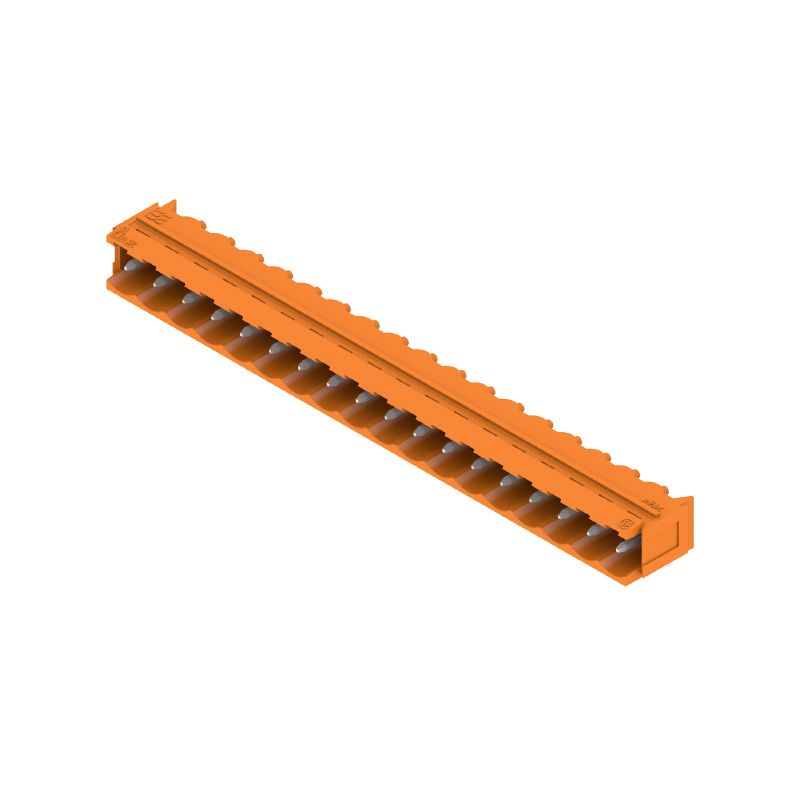

1154940000 - 5.08mm Male PCB Connector, 18 Poles, 90° Angle (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust male header plug-in connector specifically crafted for PCB applications This connector boasts dovetail features that securely fasten blocks in place It is compatible with through-hole (THT) soldering connections and has a 508 mm pitch With 18 poles arranged at a precise 90° angle and solder pins measuring 32 mm with a tinned coating, this component ensures reliable performance Each connector is conveniently packaged in a box for easy storage and transport.

Features and Benefits:

•Compliant with RoHS standards without exception.

•Temperature range for installation from -25 °C to 100 °C.

•Touch-safe protection: finger-safe unplugged and back-of-hand-safe plugged.

•Volume resistance is less than or equal to 5 mΩ.

•Can be coded to prevent incorrect connections.

•Able to withstand 25 plugging cycles.

•Maximum pulling force of 7.5 N per pole.

•Board connection for various electronic devices.

Specifications:
